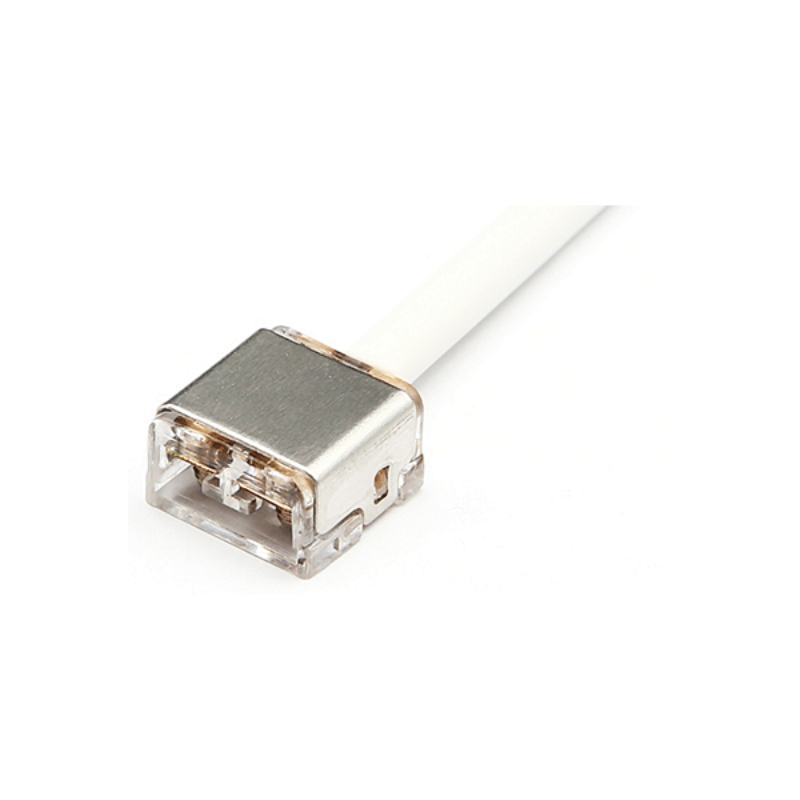

Lotus SC-8-10 Tape to Wire Screw Connector

Compatible Fixtures (Sold Separately):

• LH-1708-SW-4FT
• LH-1708-SW-8FT
• LH-2408-SW-4FT
• LH-2408-SW-8FT
• ES-FSCOBWW-24-IP20 (16-ft)
• ES-FSCOBWW-24-IP20 (100-ft)
• ES-FS2835C-112-IP20 (16-ft)
• ES-FS2835C-112-IP20 (100-ft)
• ES-FS2835C-240-24-IP20 (16-ft)
• ES-FS2835C-240-24-IP20 (100-ft)
• LBL-COB-280-24V-8MM
• LBL-COB-384-24V-8MM
• LBL-COB-320-24V-8MM
• LBL-MC-280-24V-8MM
• LBL-MC-240-24V-8MM
• LBL-COB-384-24V-10MM

Features

• Rated Current: 10A
• Input Voltage: 12VDC/24VDC

• Tape to Wire Screw Connector for 8mm & 10mm tape light
• These connectors also fit into the new aluminum profiles LH-1708 and LH-2408, although the diffuser has to be pushed hard and the double adhesive tape removed from the back of the connectors
• IP 20 rated

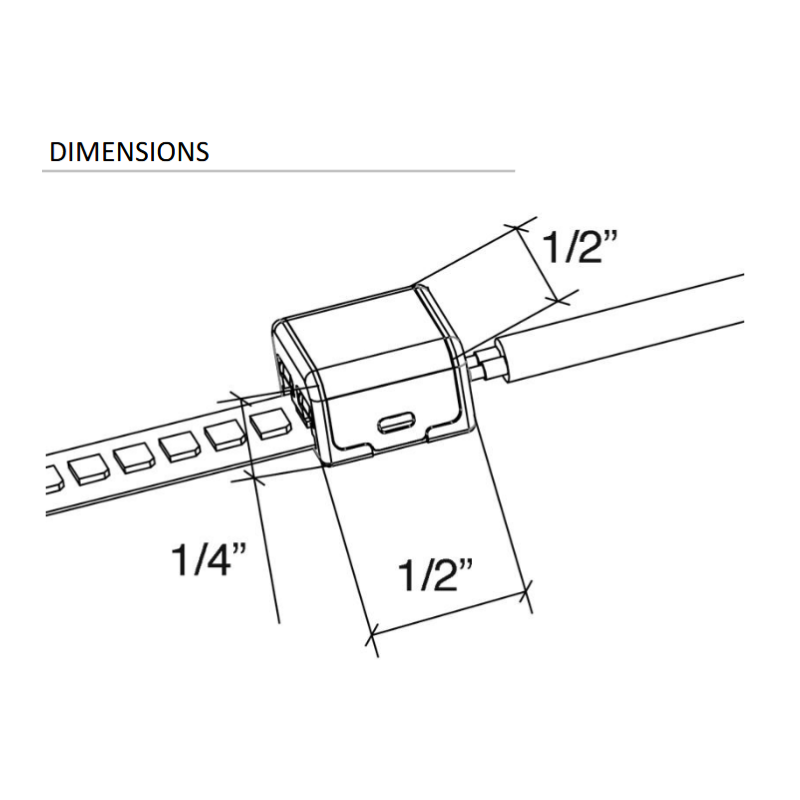

Dimensions

• Length: 0.5"
• Width: 0.5"

• Height: 0.25"

Documents

• Spec Sheet
• Instruction Sheet
