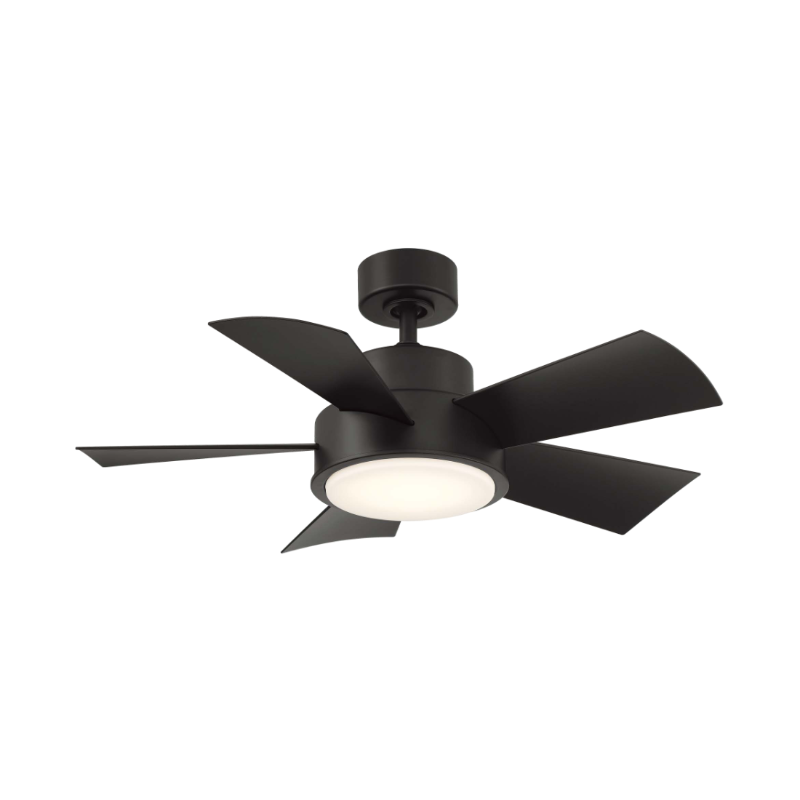

Modern Forms FR-W1802-38L Vox 38" Outdoor Ceiling Fan with LED Light Kit

From bedrooms to boardrooms, pool houses to patios, Vox works its magic with a compact design that looks great anywhere—even outside. We make all our smart fans wet-rated—that means highly durable materials and weather-resistant finishes—so you can keep a consistent look and feel throughout your décor. Control your smart fan with the exclusive Modern Forms app, which integrates easily with smart devices you already own—if you want to turn it on, all you have to do is ask.

Features

• Finish/Blades:

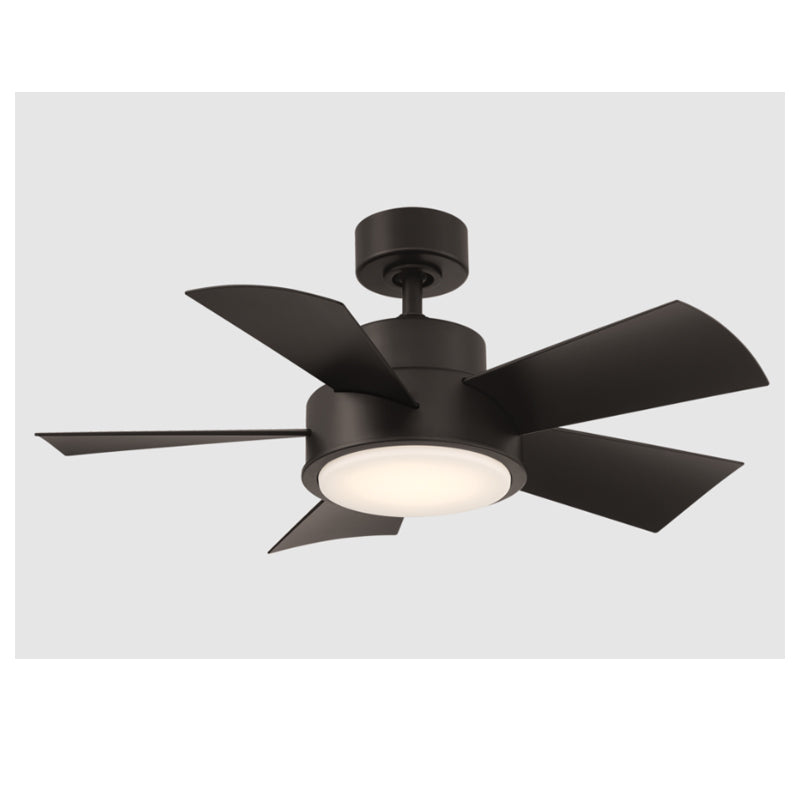

  • Bronze with Bronze Blades
  • Matte White with Matte White Blades
  • Matte Black with Matte Black Blades

• Construction: Aluminum, ABS
• Blade Pitch: 13°
• Sloped: 30º
• Five blades
• 6 fan speeds through both Summer and Winter Modes
• Voltage: 120V
• This item may be hung on a sloped ceiling
• Modern Forms Fans pair with the smart home tech you know and love, including Google Assistant, Amazon Alexa, Samsung Smart Things, Ecobee, Control 4, and Josh.ai.
• Integrates with smart home devices you already own, including Google Assistant, Amazon Echo, Nest & ecobee for voice command and energy savings
• Bluetooth remote control included (Part# F-RCBT-WT). Optional wall switches are available for 3 or 4 way setup (Part# F-WCBT-WT) sold separately

Airflow/Energy Efficiency

• Airflow: 5357 cubic ft per minute on high
• Power: 33 watts on high
• Airflow Efficiency: 138 cubic ft per minute per watt
• Revolutions Per Minute: 234 RPMs on high

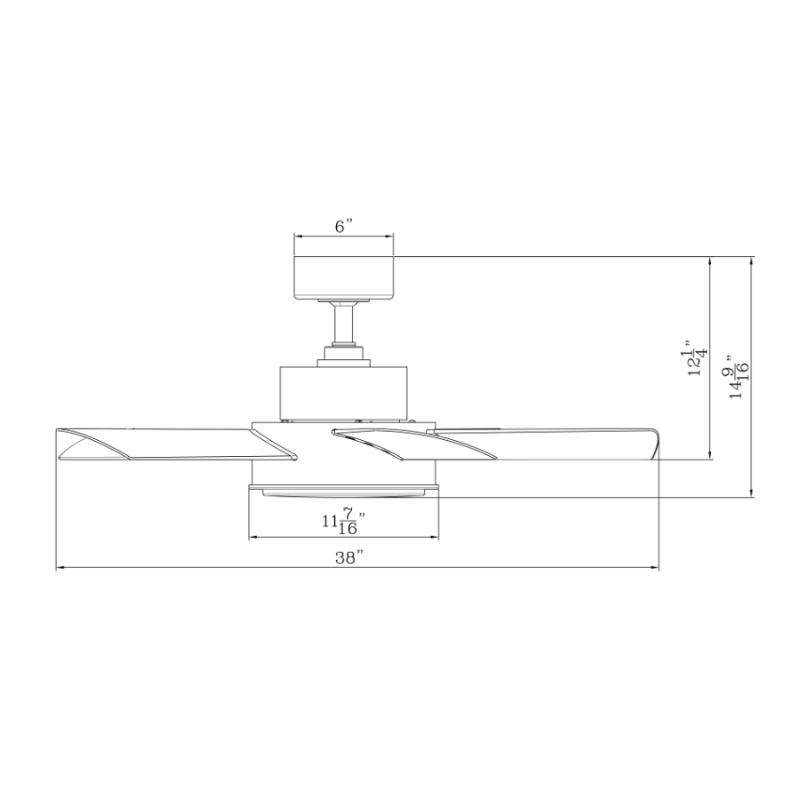

Dimensions

• Blade Sweep: 38"
• Height: 14.56"
• Downrod: 0.75" W x 4.5" H
• Wire: 80"
• Motor Type: 125 x 20 sensorless DC motor
• Hanging Weight: 14.5 lbs

Lamping

• 23.5W Integrated LED (Included)
• Color Temperature: 2700K, 3000K, 3500K
• LED Lumens: 2041
• Delivered Lumens: 949
• CRI: 90
• Rated Life: 50,000 Hours

Documents

• Spec Sheet
• Instruction Sheet
