Modern Forms FR-W1810-60 Vortex 60" Ceiling Fan

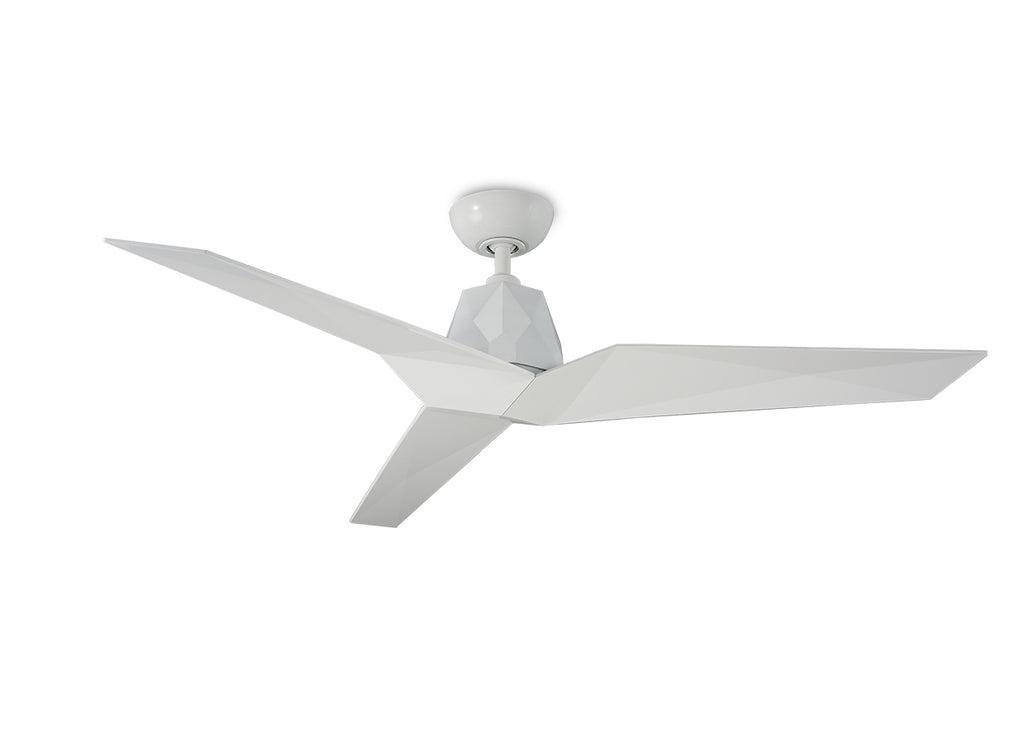

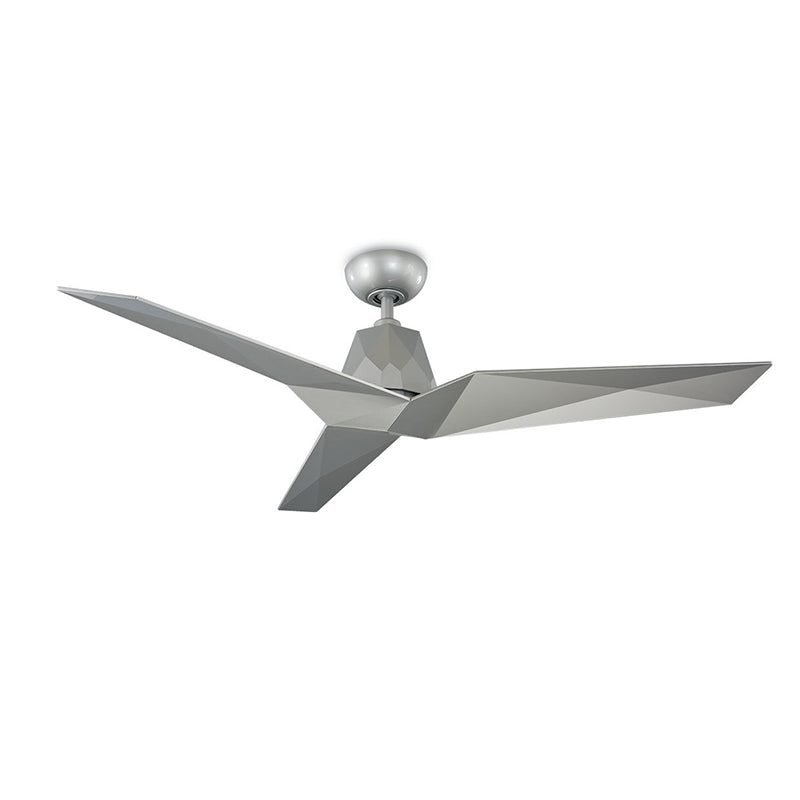

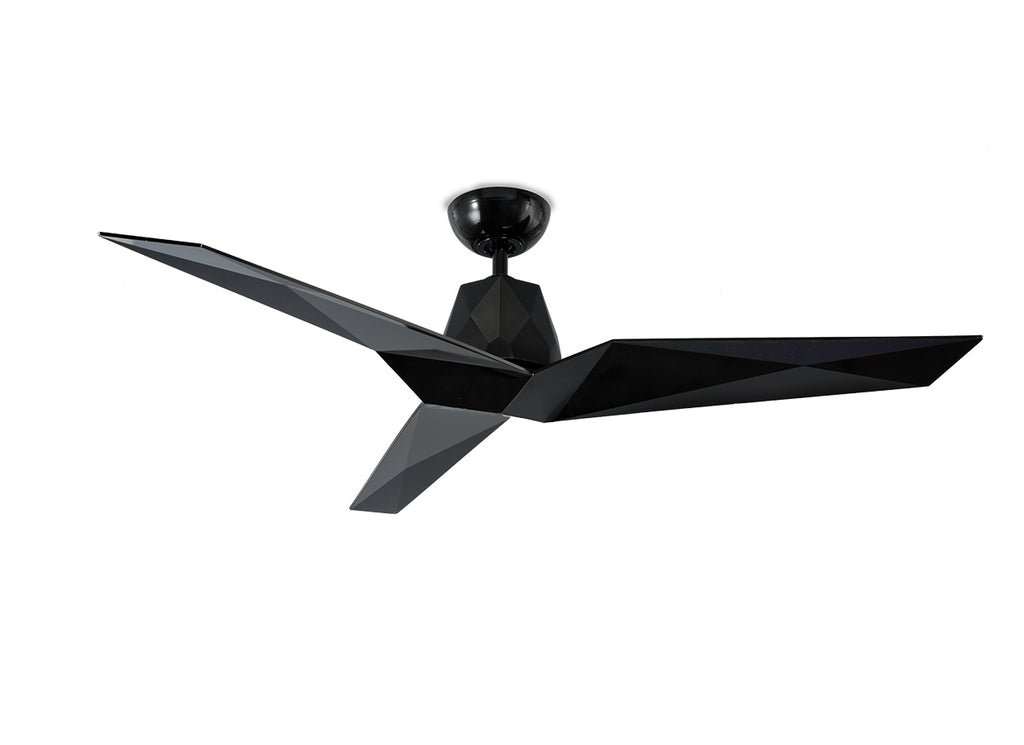

Finished in gloss black, gloss white or the kind of silver you'd find on a Maserati, this sleek, sculptural design makes an ultra-luxe modern statement. Powered by a highly efficient DC motor, Vortex runs on stealth mode all day and night—the only sound you'll hear is the air whispering through the room. Use with the Modern Forms app for a full complement of luxury smart controls.

Features

• Finish: Gloss White

• Construction: Aluminum, ABS
• Voltage: 120V
• Blade: 13º Pitch
• Three blades
• 6 fan speeds through both Summer and Winter Modes
• Modern Forms Fans pair with the smart home tech you know and love, including Google Assistant, Amazon Alexa, Samsung Smart Things, Ecobee, Control 4, and Josh.ai
• Integrates with smart home devices you already own, including Google Assistant, Amazon Echo, Nest & ecobee for voice command and energy savings
• Bluetooth wall control included (Part# F-WCBT-WT). Additional wall switches are available for 3 or 4 way setup (Part# F-WCBT-WT)sold separately
• Optional battery-operated Bluetooth hand-held remotes are available (Part # F-RCBT-WT)sold separately
• Silent DC motor runs 70% more energy efficient than traditional AC motors

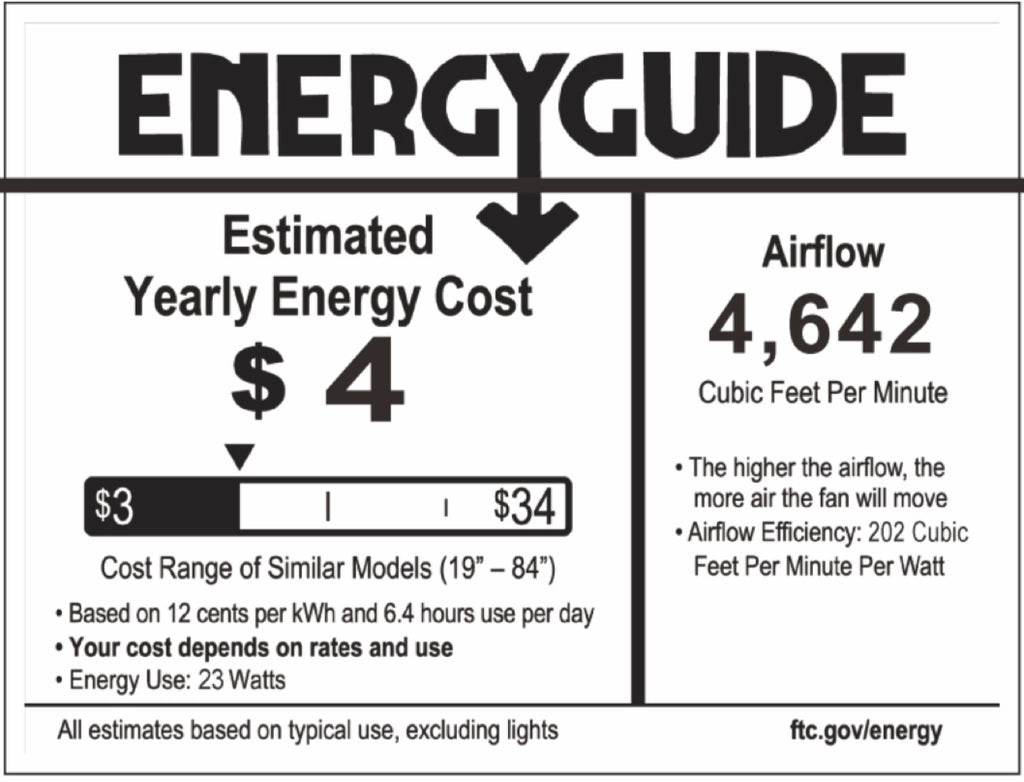

Airflow/Energy Efficiency

• Weighted-Average/High Airflow CFM: 7663/5207
• Weighted-Average/High Energy Use (W): 13/32
• Estimated Yearly Energy Cost ($): 4
• Weighted-Average/High Efficiency (CFM/W): 211/209
• Max RPM: 145

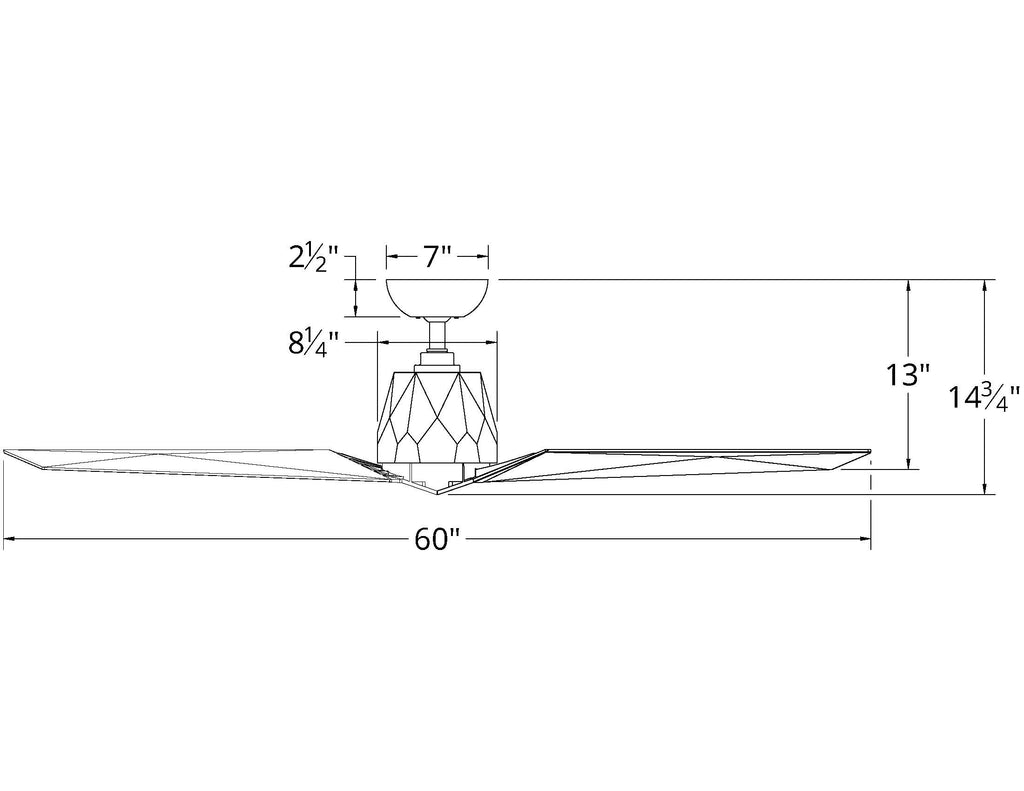

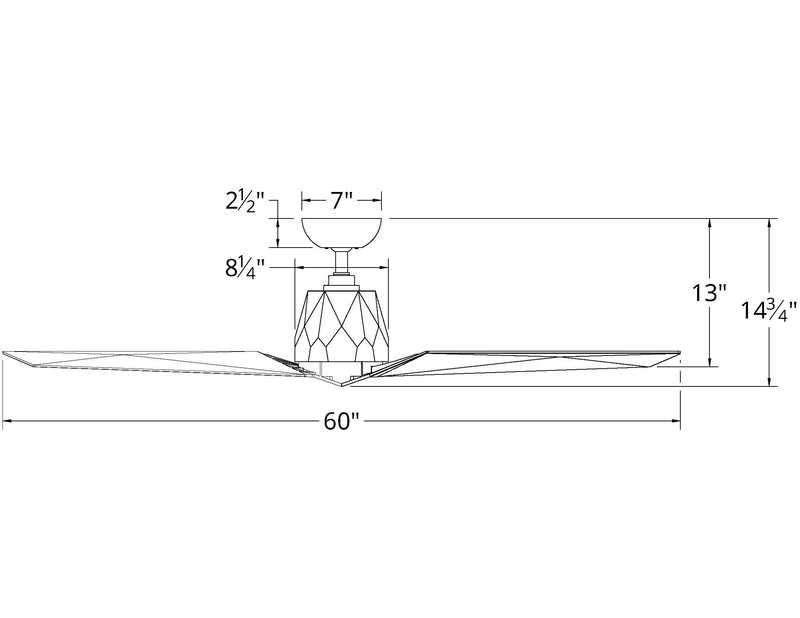

Dimensions

• Blade Sweep: 60"
• Height: 14.75"
• Downrod: 1” O.D. x 4.5”H included
• Leadwire: 80"
• Motor Type: 125 x 20 sensorless DC motor
• Hanging Weight: 13 lbs

Documents

• Spec Sheet
• Instruction Sheet
