Modern Forms FR-W1811-70 Aviator 70" Ceiling Fan
Inspired by the golden age of flying, this smart fan takes technology to the next level. Pair it with the Bluetooth remote control or use the Modern Forms app to save on energy costs, group fans to control together, or intuitively create schedules that respond to your behavior.
Features
- Optional Light Kit Sold Separately
- Finish/Blades:

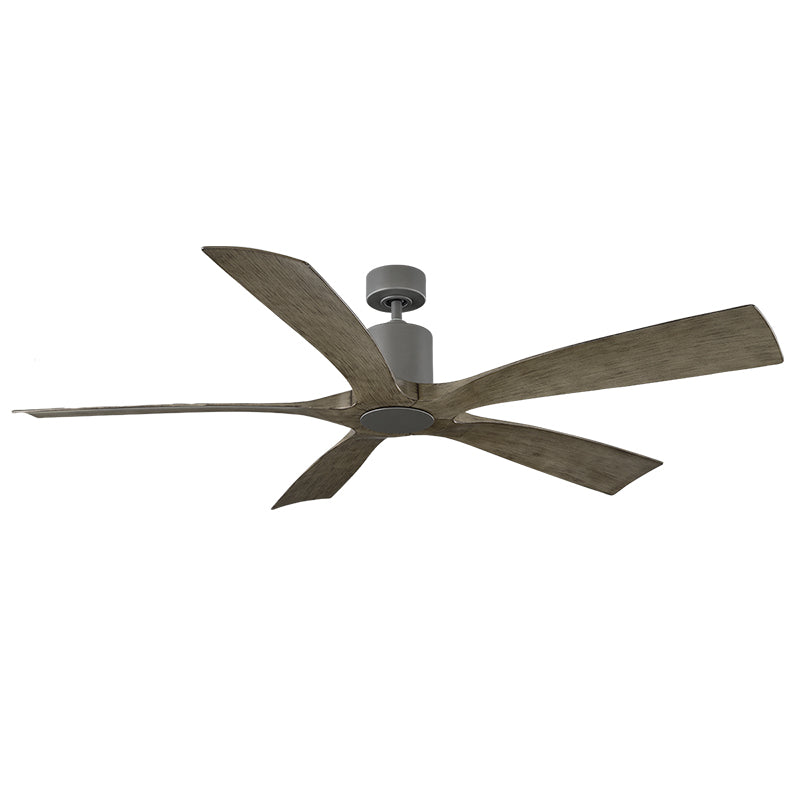

- Graphite with Weathered Gray

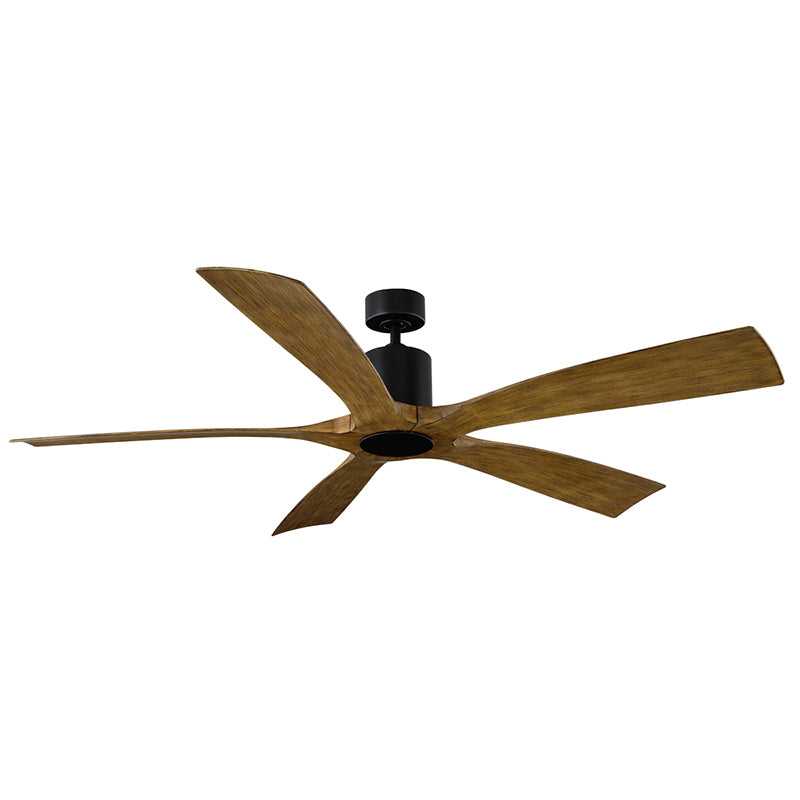

- Matte Black with Distressed Koa

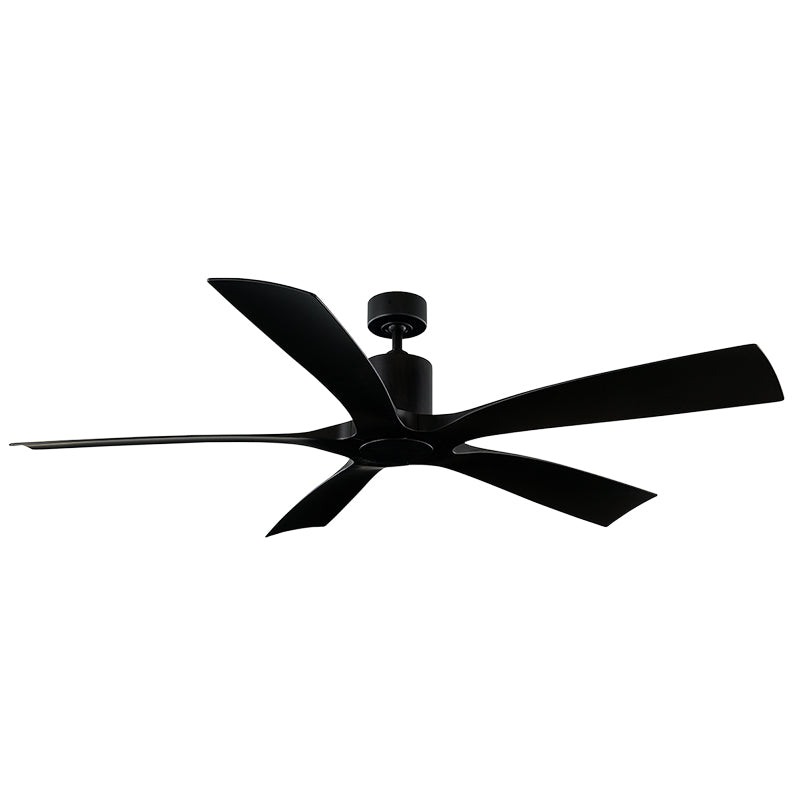

- Matte Black
- Aluminum hardware, ABS blades
- Voltage: 120V
- Blade Pitch: 14º
- Mounting Slope: Up to 30°
- Five blades
- Total Power: 35W
- 6 fan speeds through both Summer and Winter Modes
- Modern Forms Fans pair with the smart home tech you know and love, including Google Assistant, Amazon Alexa, Samsung Smart Things, Ecobee, Control 4, and Josh.ai
- Integrates with smart home devices you already own, including Google Assistant, Amazon Echo, Nest & ecobee for voice command and energy savings
- Bluetooth wall control included (Part# F-WCBT-WT). Additional wall switches are available for 3 or 4 way setup (Part# F-WCBT-WT) sold separately
- Optional battery-operated Bluetooth hand-held remotes are available (Part # F-RCBT-WT) sold separately
- Silent DC motor runs 70% more energy efficient than traditional AC motors

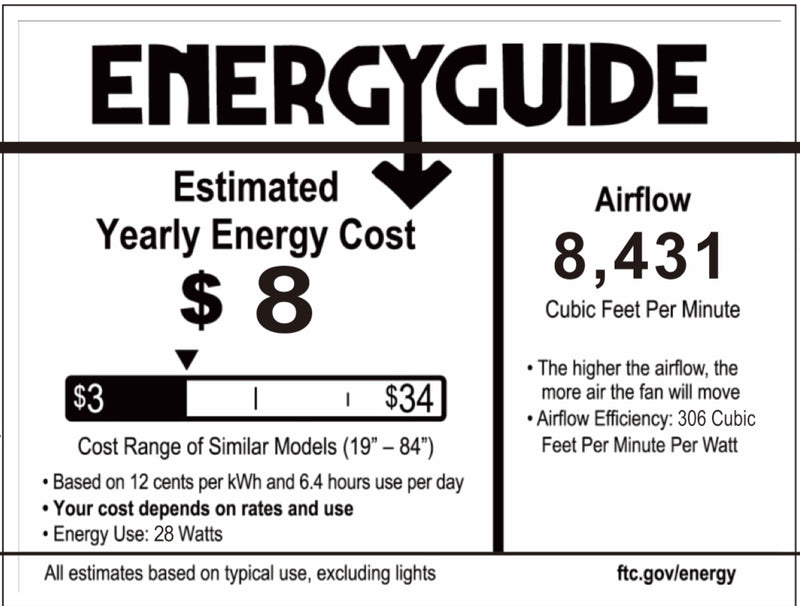

Airflow/Energy Efficiency
- Weighted-Average/High Airflow CFM: 8431/11779
- Weighted-Average/High Energy Use (W): 28/40
- Estimated Yearly Energy Cost ($): 8
- Weighted-Average/High Efficiency (CFM/W): 306/338
- Max RPM: 170

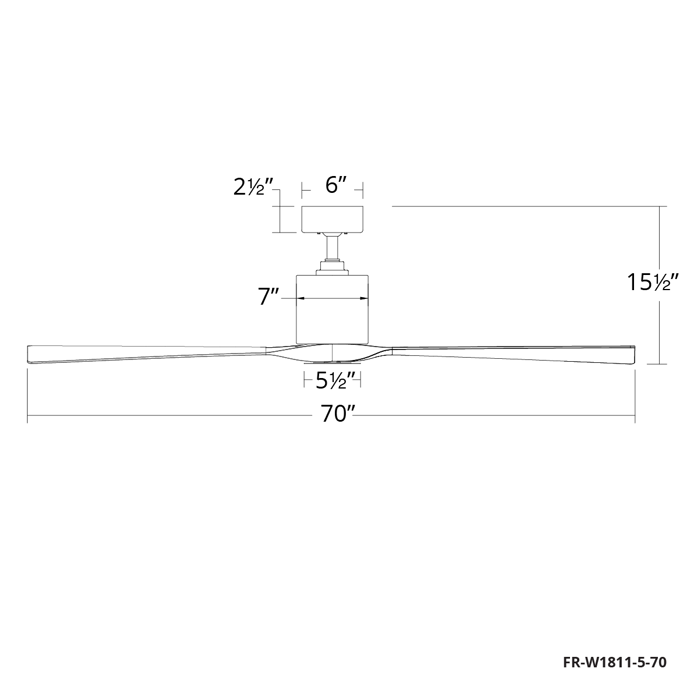

Dimensions
- Blade Sweep: 70"
- Downrod: 0.75" O.D. x 4.5"H inlcuded
- Height: 15.5"
- Leadwire: 80"
- Hanging Weight: 23 lbs
- Motor Type: 125 x 25 sensorless DC motor
