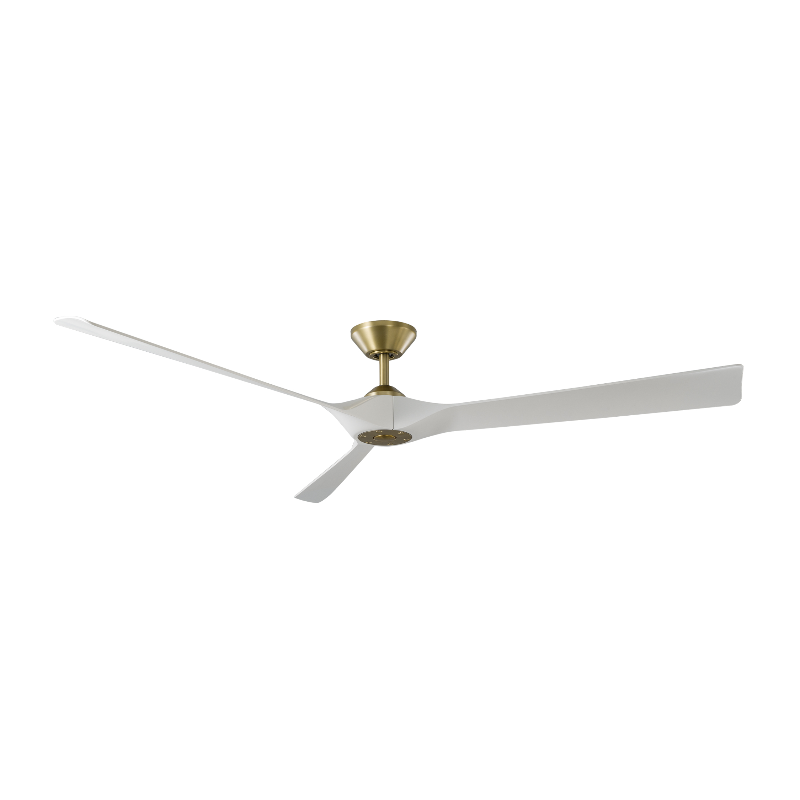

Modern Forms FR-W2204-70 Torque 70" Outdoor Ceiling Fan

The Torque Smart Fan by Modern Fans makes a powerful design statement in nearly any indoor or exterior space in residential, hospitality and commercial settings. A distinctive silhouette blends well with a minimalist body and uniquely formed blades.

Features

• Finish/Blades:

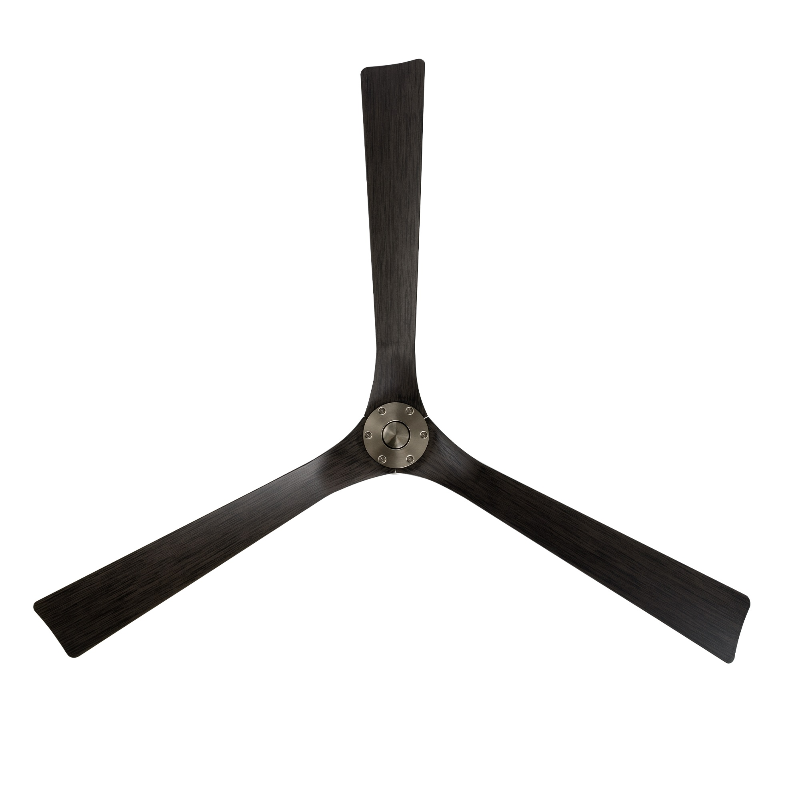

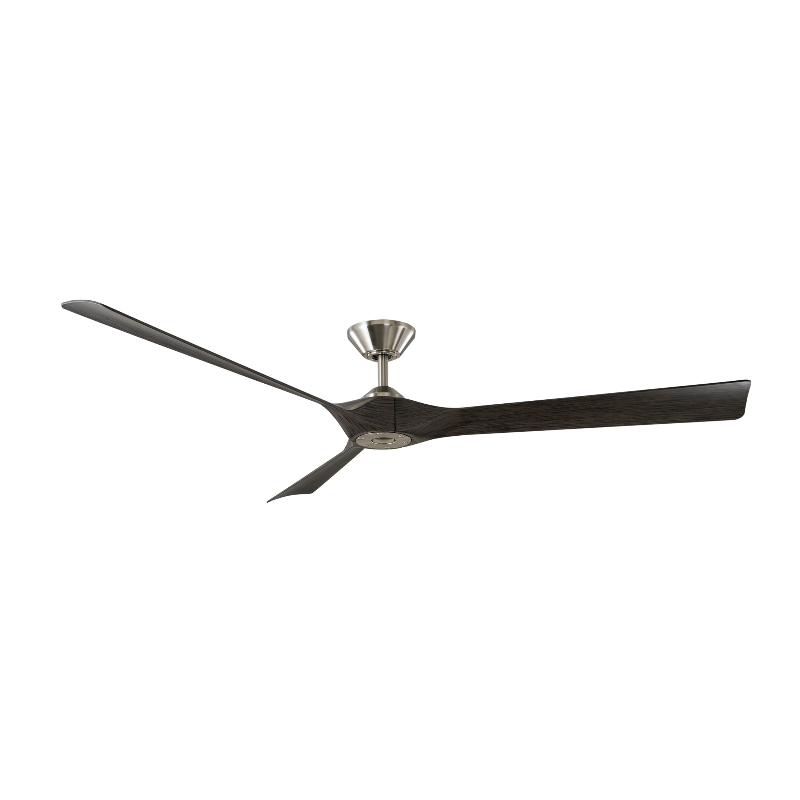

  • Brushed Nickel with Ebony Blades

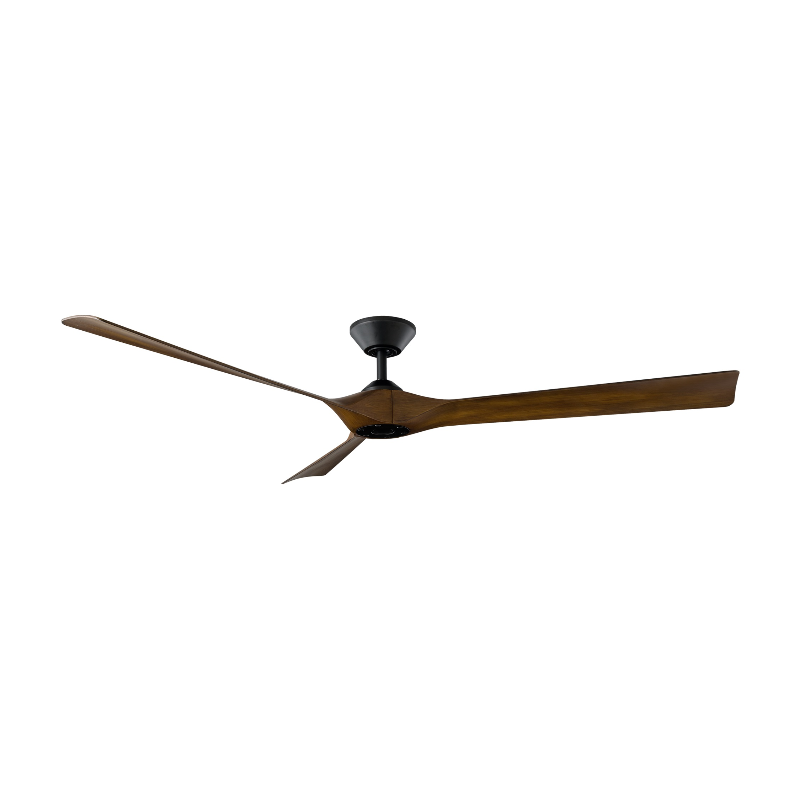

  • Matte Black with Distressed Koa Blades

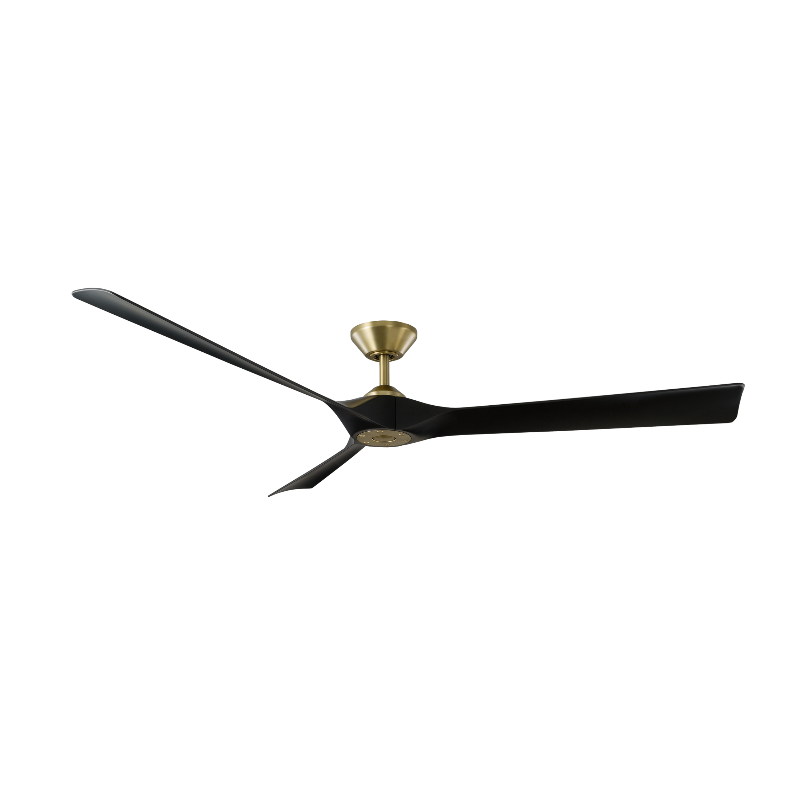

  • Soft Brass with Matte Black Blades

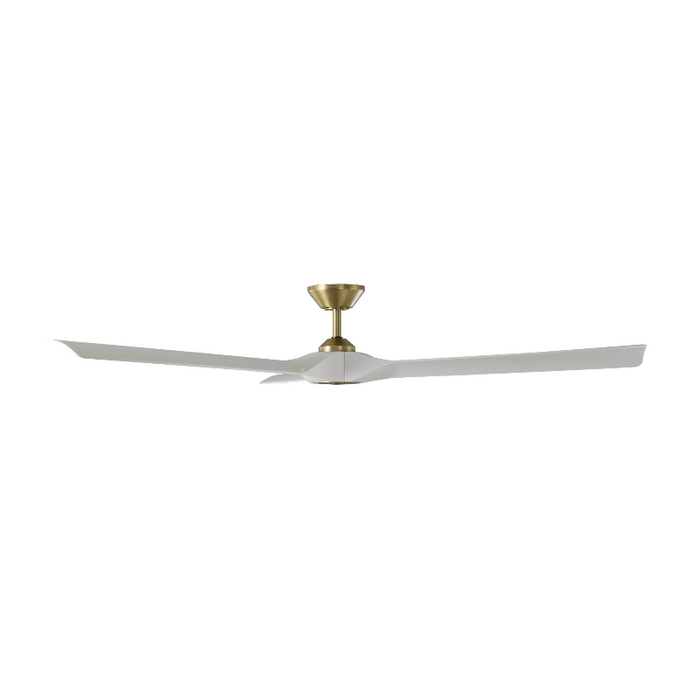

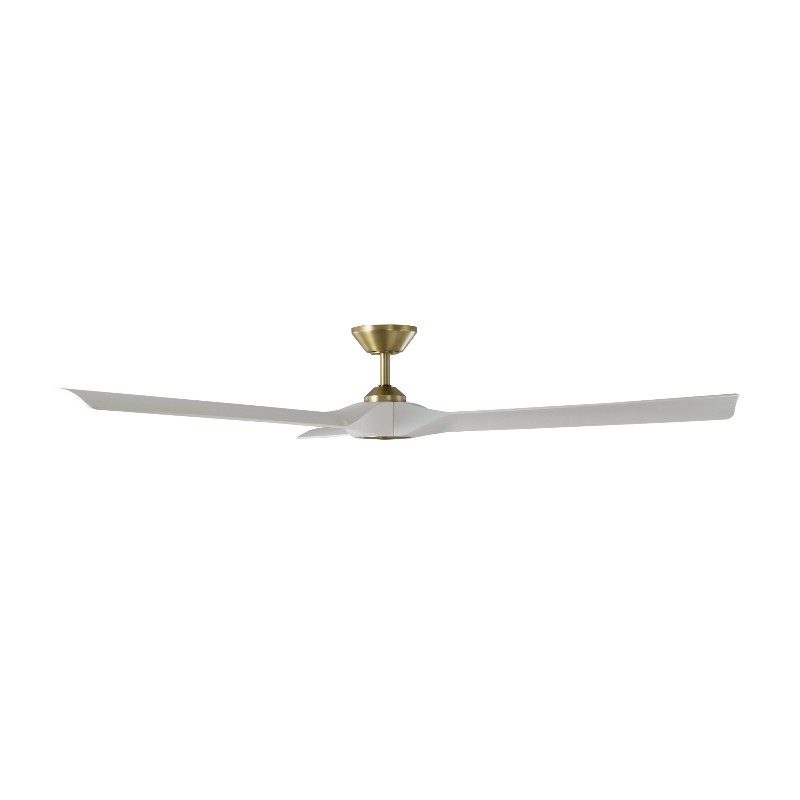

  • Soft Brass with Matte White Blades

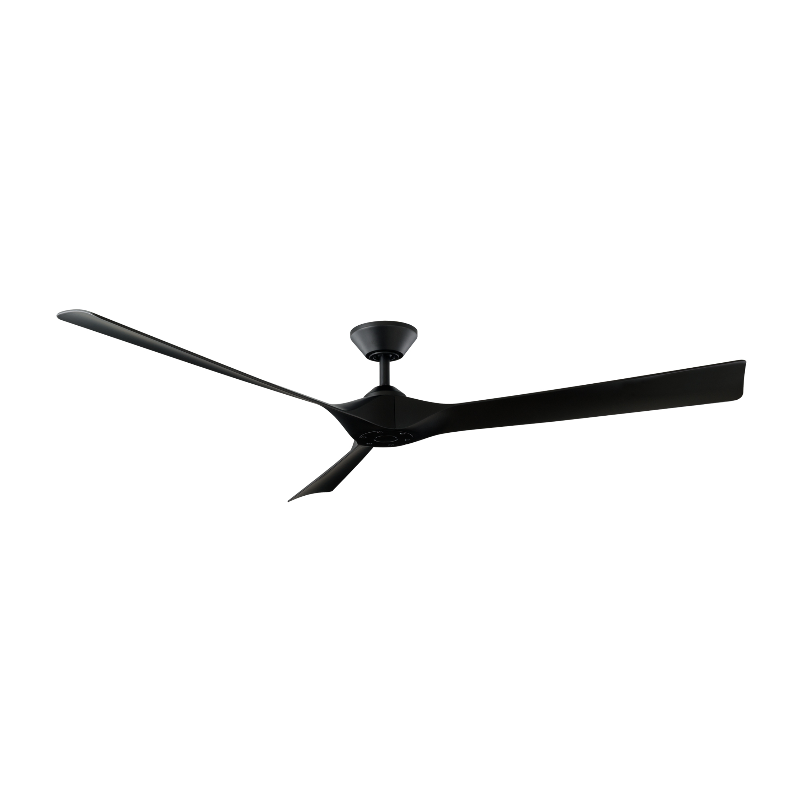

  • Matte Black with Matte Black Blades

• Construction: Aluminum, Steel, ABS
• Blade Pitch: 17°
• Sloped: 30º
• Three blades
• 6 fan speeds through both Summer and Winter Modes
• Voltage: 120V
• This item may be hung on a sloped ceiling
• Modern Forms Fans pair with the smart home tech you know and love, including Google Assistant, Amazon Alexa, Samsung Smart Things, Ecobee, Control 4, and Josh.ai.
• Bluetooth remote control included (Part# F-RCBT-WT). Optional wall switches are available for 3 or 4 way setup (Part# F-WCBT-WT) sold separately

Airflow/Energy Efficiency

• Airflow: 8581 cubic ft per minute on high
• Power: 38 watts on high
• Airflow Efficiency: 245 cubic ft per minute per watt
• Revolutions Per Minute: 106 RPMs on high

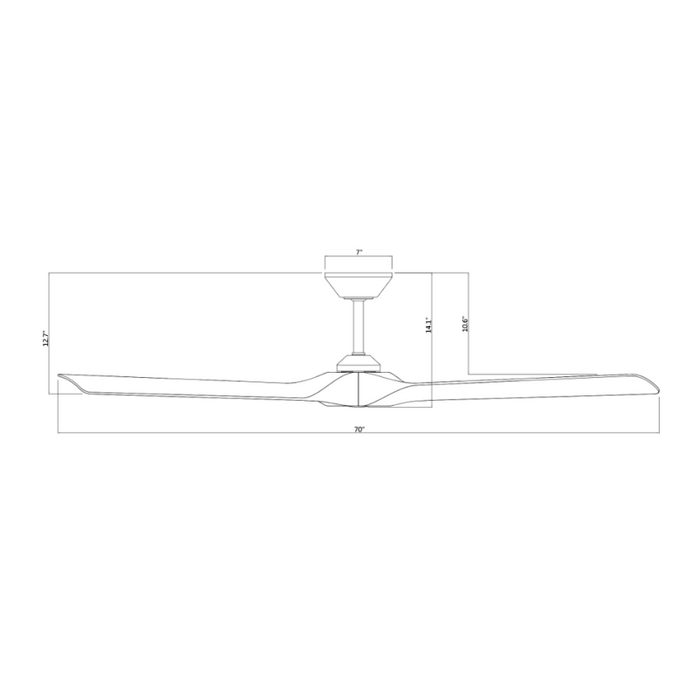

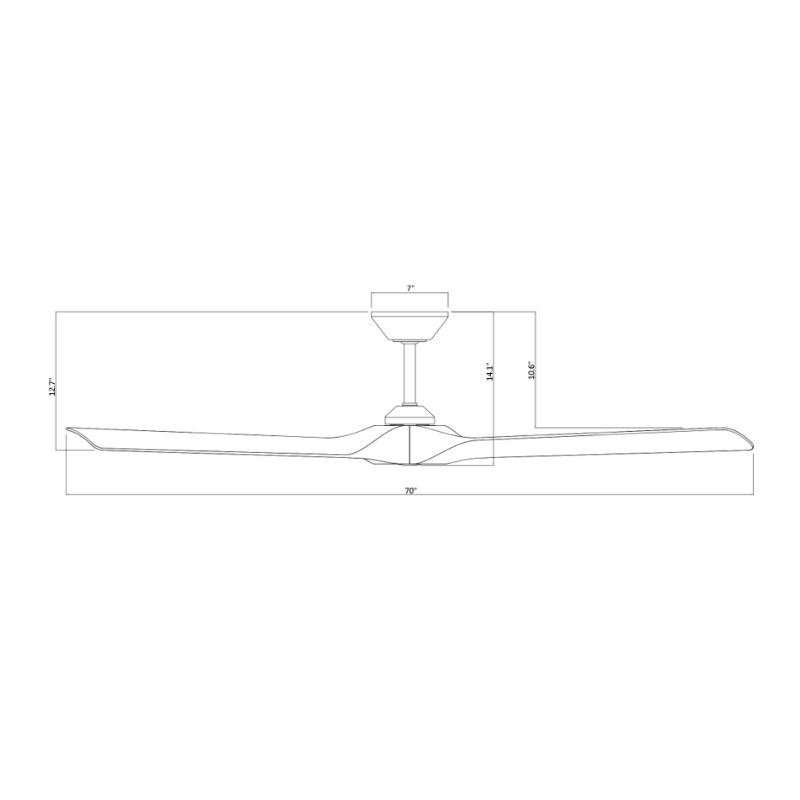

Dimensions

• Blade Sweep: 70"
• Height: 12.7"
• Downrod: 0.75" W x 8" H
• Wire: 80"
• Motor Type: 125 x D-25 sensorless DC motor
• Hanging Weight: 19 lbs

Documents

• Spec Sheet
• Instruction Sheet
