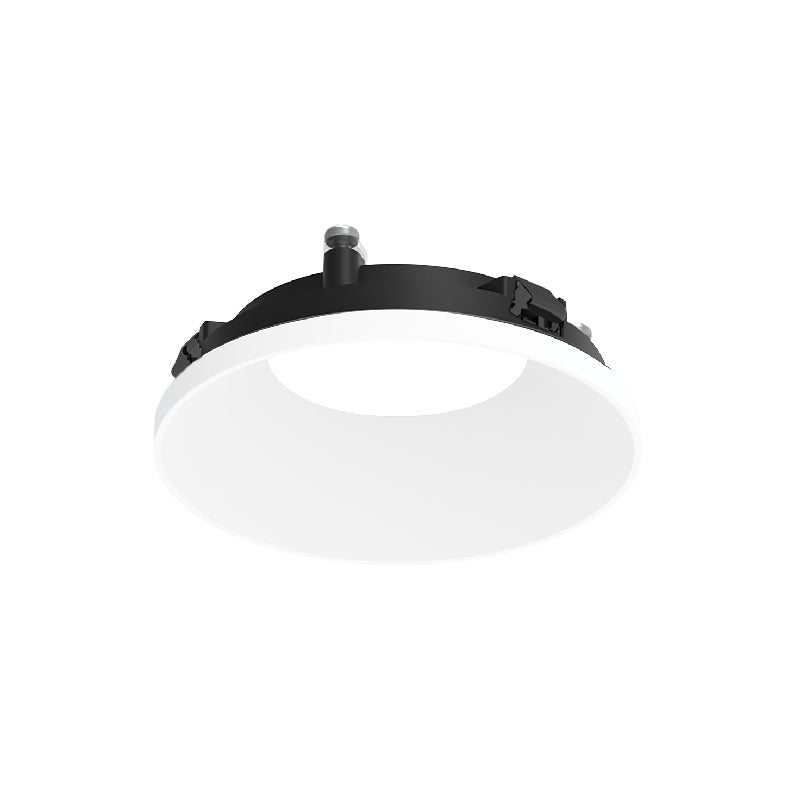

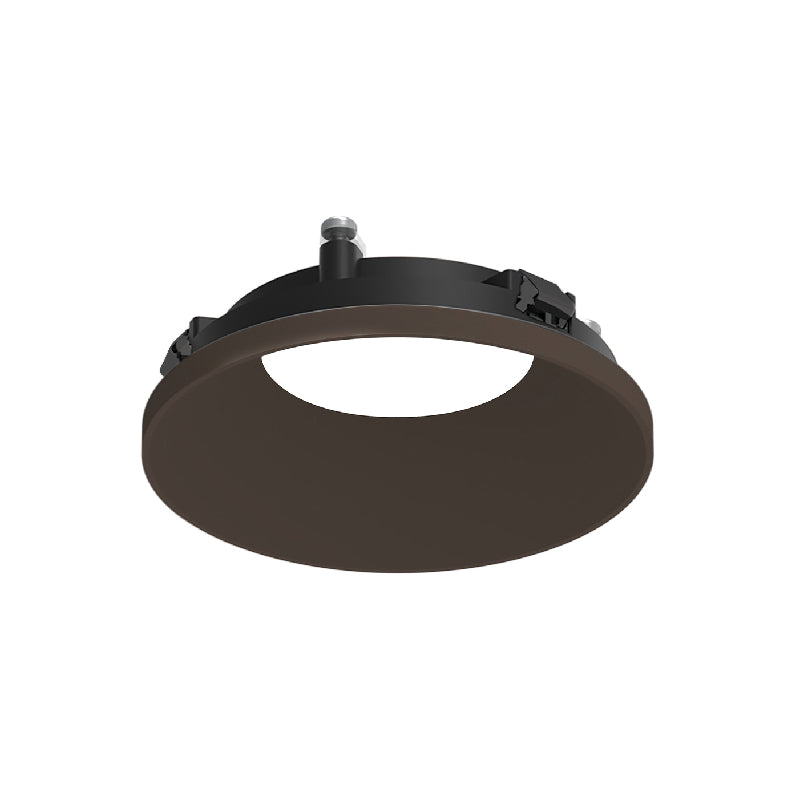

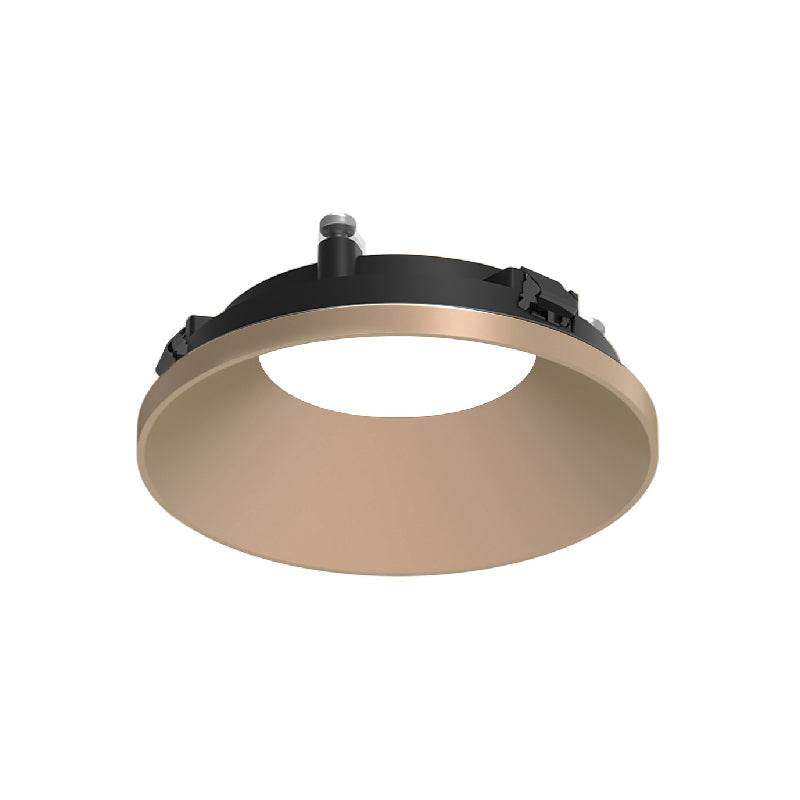

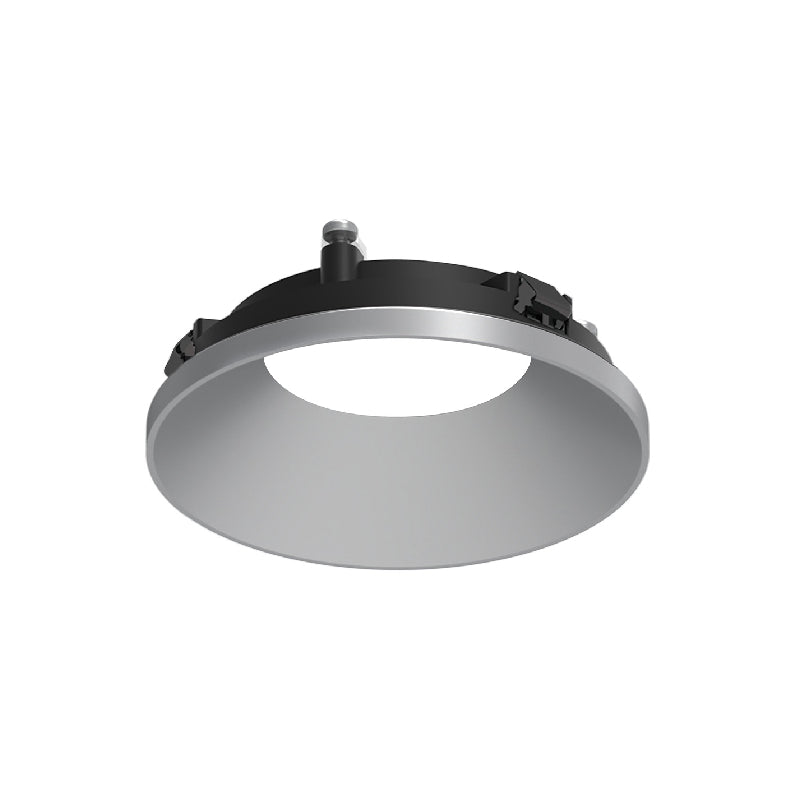

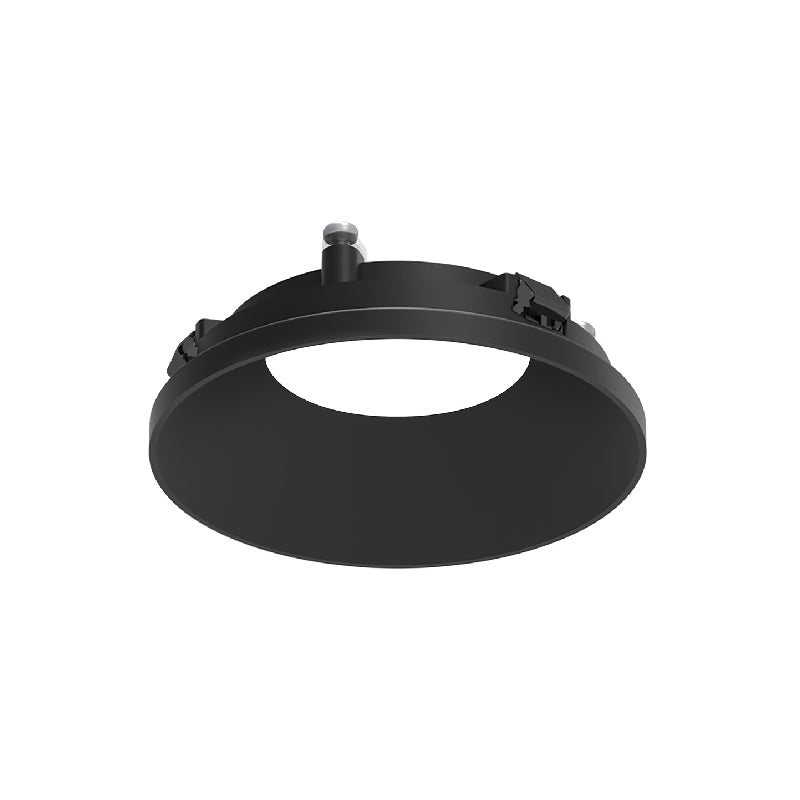

Nora NAPT-3RDN 3" Apollo Round Trimless Downlight Trim with Clear Lens

3″ Apollo flangeless downlights are compatible with millwork and drywall ceilings. Trimless applications require a mud plate and drywall finisher. Quiet ceiling with exceptional glare control and 45° visual cutoff to the LED source.

Features

• Trim Only. Housing Sold Separately
• Size: 3"
• Flange Type: Flangeless

• Finish: Black, Bronze, Haze, Matte Powder White, Wheat Diffused
• Flangeless knife-edge appearance

• Compatible with millwork and drywall applications
• Exceptional glare control with 45° cut off
• Compatible with adjustable LED mechanism (361° rotation & 45° tilt)
• Trim: Die-cast aluminum construction with architectural grade finishes. Protective e-coating for corrosion protection and durability

• Lens: Luminaire can be specified with clear lens (pre-installed). Wet location rated when used with lens. Removal tool is available to remove trim with lens from below finished ceiling for maintenance (NIO-TLTOOL)
• Mounting: Trim easily installs into housing collar for millwork installation. Mud plate is required (NAP-TLMR-3R) for trimless drywall installations

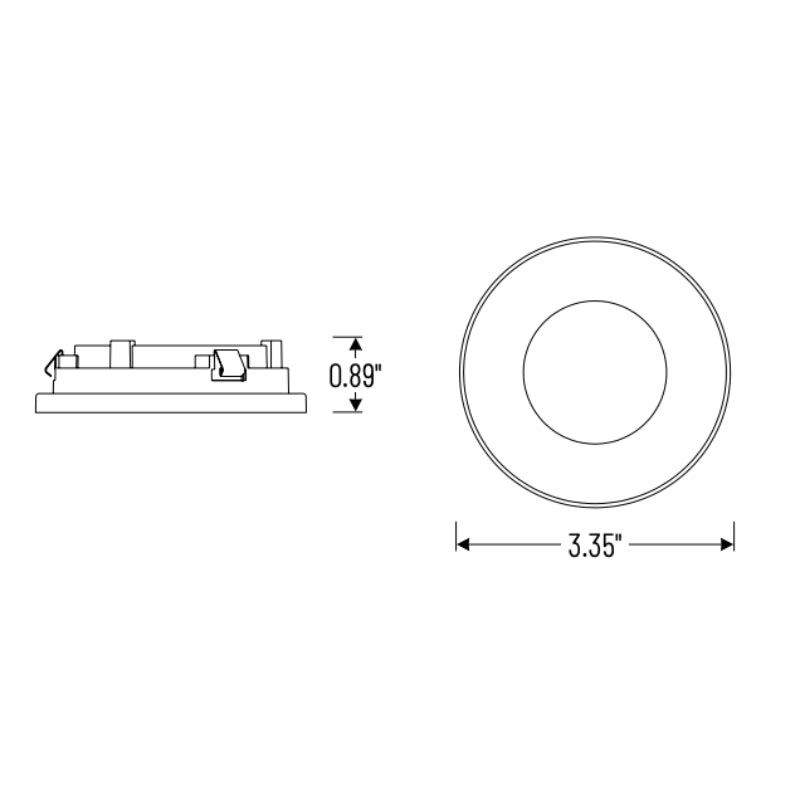

Dimensions

• Width: 3.35"

• Height: 0.89"

Documents

• Spec Sheet
• Instruction Sheet
