Nora NCAH2-430 4" LED Sapphire II COB Universal New Construction Frame-In Kit

The Sapphire II COB Series is an architectural grade LED high lumen downlight. The Sapphire II uses the latest COB technology by Cree. The COB allows for better optic control offering 3 beam spreads. Beam spreads focus the light down to the work plane from high ceiling applications. The Sapphire II series is available in 4", 6" or 8" apertures and also in new construction or remodel frame-ins.

Features:

• Trim sold separately
• Wattage/ Lumens: 15W/ 900 lm, 18W/ 1500 lm , 30W/ 2500 lm
• Driver: 120-277V Input; 0-10V dimming, 120V Input; Triac/ELV/0-10V dimming
• Emergency: None, Emergency Pack w/ Remote Test Switch, Emergency Pack w/ Integral Test Switch(must specify on reflector)

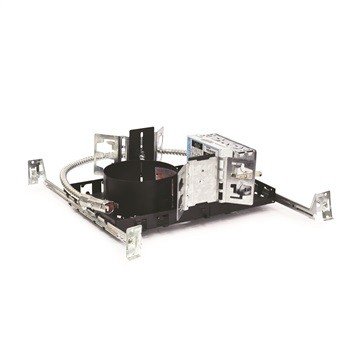

• Frame-in includes two adjustable bar hangers and universal brackets that accept flat bar hangers, C-Channel (ordered separately) or rigid 1/2" conduit
• Adjustable hanger bars with captive nails, alignment foot, T-Bar slot are included on frame
• Includes adjustable deep ceiling collar
• Minimum Clearances: Frames require a minimum of 3" from thermal insulation and 1/2" from adjacent building component

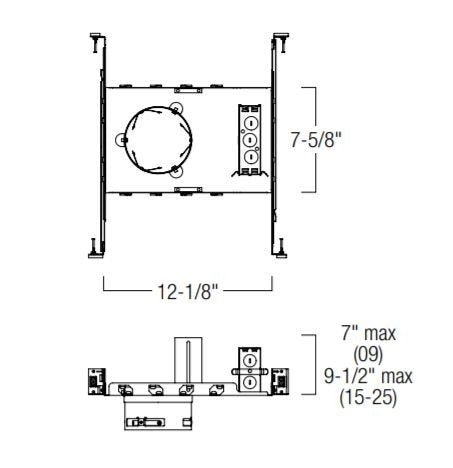

Dimensions

• Length : 12-1/8"
• Width: 7-5/8"

• Height: 5" to 7-3/8"

• 15W LED, 900 lm or
• 18W LED, 1500 lm or
• 30W LED, 2500 lm

Documents:

• Spec Sheet
• Instruction Sheet
