Nora NCH3-8L2C12 8" Sapphire III COB, Universal New Construction Frame-In Kit, 1500 Lumen, 120-277V
SKU NCH3-8L2C12
Original price
$0.00
-
Original price
$0.00
Original price
$143.91
$143.91
-
$143.91
Current price
$143.91
Availability:
In stock

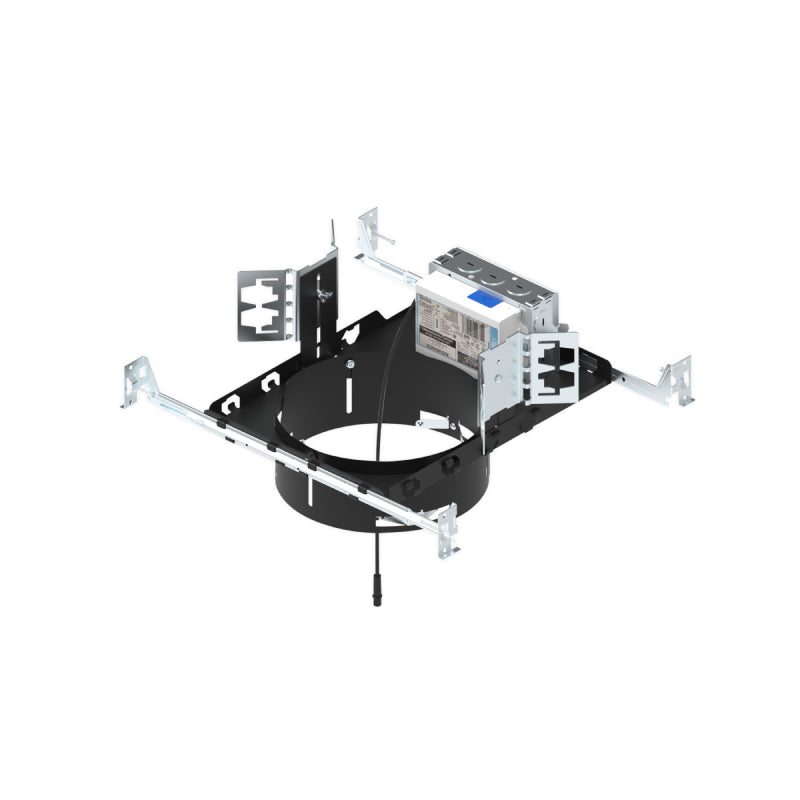

New Construction Frame-In for 8" Sapphire III COB LED downlights includes universal brackets and bar hangers that can be adjusted on either side of the flat frame.
Features
- Trim sold separately
- Wattage: 18W
- Voltage: 120-277V
- Lumens: 1500
- 0-10V Dimming
- Optional emergency driver with remote test switch
- Frame-in includes two adjustable bar hangers and universal brackets that accept flat bar hangers, C-Channel (ordered separately) or rigid 1/2" conduit
- Adjustable hanger bars with captive nails, alignment foot, T-Bar slot are included on frame
- Frame-in includes an adjustable deep ceiling collar that accommodates ceiling thickness from 1/2" to 2"
- Minimum Clearances: Frames require a minimum of 3" from thermal insulation and 1/2" from adjacent building component

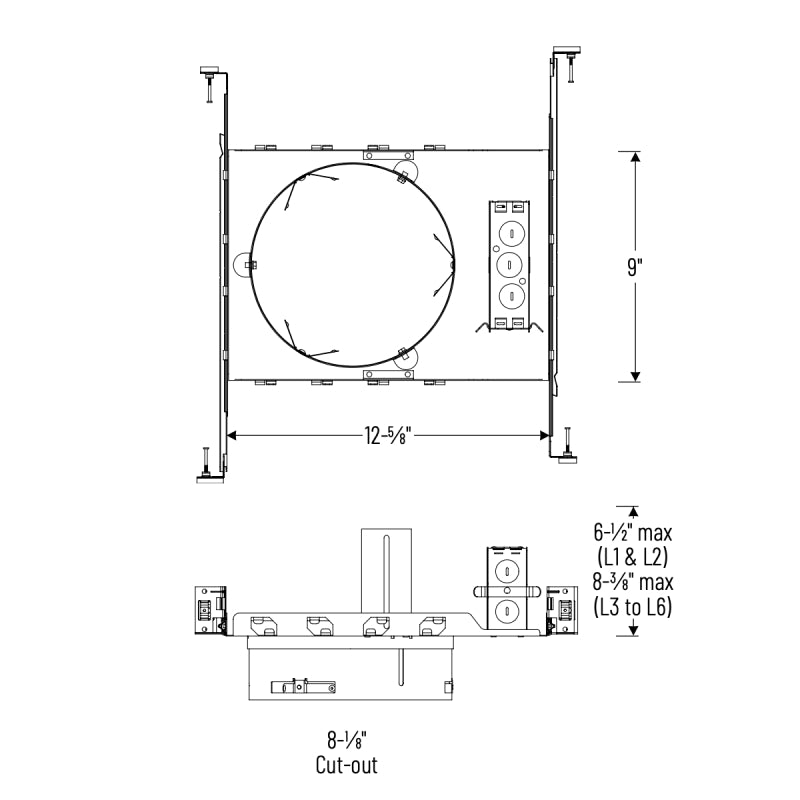

Dimensions
- Length: 12.63"
- Width: 9"
- Height: 6.5" max
- Cut-out: 8.13"
