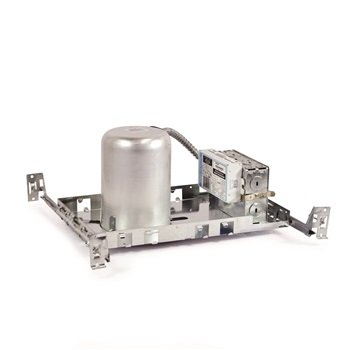

Nora NHMIC2-409 4" Marquise II IC Air-Tight New Construction Housing

Nora LightingSKU: NHMIC2-409LE2
filler

Voltage: 277V 0-10V Dimming
Price:
$82.80
Stock:
Sold out

Description

Dedicated new construction housing for use in insulated ceilings can be in direct contact with thermal insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling.

Features:

  • Trim and light bulb sold separately
  • Driver:
    • 277V Input; 0-10V dimming
    • 120V Input; Triac/ELV dimming
    • 120V Input; 0-10V dimming
  • Input Voltage: 120V or 277V
  • Plaster Frame: 0.040 steel frame with integral bar hanger brackets. Brackets can accommodate longer 27" accessory flat bar hangers.
  • Housing: 0.040 aluminum one-piece can. Adjustable ceiling thickness from 3/8" to 7/8".
  • Bar Hangers: Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on frame. Bar hangers are parallel to junction box, but can be repositioned 90º perpendicular to junction box if desired. "L" Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allow for easy installation in a suspended ceiling.
  • Junction Box: Prewired 25 cubic inch 0.064" thick galvanized steel, with seven 1/2" knockouts, four Romex® pryouts, and snap on covers.
  • Insulated ceiling housings are direct contact rated; no minimum clearance is required
Lamping:
  • 15W LED, 900 lm

Models:

NHMIC2-409LE2, NHMIC2-409LE3, NHMIC2-409LE5



Spec Sheet
