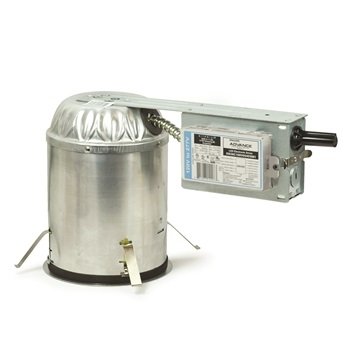

Nora NHRM2-525 5" Marquise Non-IC Air-Tight Remodel Housing

Nora LightingSKU: NHRM2-525LE3
filler

Voltage: 120V, Triac/ELV dimming
Price:
$100.80
Stock:
Only 1 unit left

Description

Dedicated remodel housing for use in insulated ceilings, must specify. Air-tight construction provides energy savings by reducing the flow of air through the ceiling.

Features:

  • Trim and light bulb sold separately
  • Driver:
    • 277V Input; 0-10V dimming
    • 120V Input; Triac/ELV dimming
    • 120V Input; 0-10V dimming
  • Input Voltage: 120V or 277V

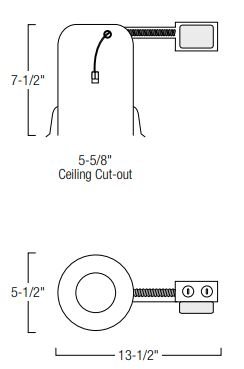

  • Housing: 0.040 aluminum housing adjusts to a maximum ceiling thickness of 5/8" (16mm). Housing terminates at a 1/4" ceiling flange for even positioning of housing angle within the ceiling.
  • Mounting: Four high tension tempered steel springs secure remodel housing to 5/8" thick (max) ceiling (Hole cutout template provided for convenience).
  • Junction Box: Prewired 25 cubic inch 0.064" thickgalvanized steel, with five 1/2", two 3/4" knockouts, four Romex® pryouts, and snap on covers.
  • Non-Insulated housings require a minimum clearance of 3" from thermal insulation and 1/2" from adjacent building components.
Lamping:
  • 30W LED, 2500 lm

Instruction
Spec Sheet
