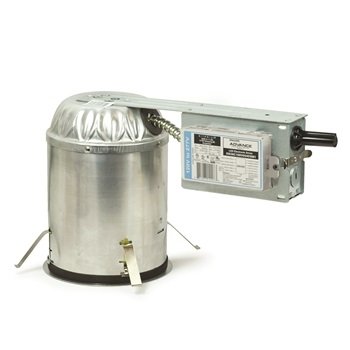

Nora NHRMIC2-509 5" Marquise IC Air-Tight Remodel Housing

Nora LightingSKU: NHRMIC2-509LE3
filler

Voltage: 120V, Triac/ELV dimming
Price:
$100.80
Stock:
Only 15 units left

Description

Dedicated remodel housing for use in insulated ceilings, must specify. Air-tight construction provides energy savings by reducing the flow of air through the ceiling.

Features:

  • Trim and light bulb sold separately
  • Driver:
    • 277V Input; 0-10V dimming
    • 120V Input; Triac/ELV dimming
    • 120V Input; 0-10V dimming
  • Input Voltage: 120V or 277V

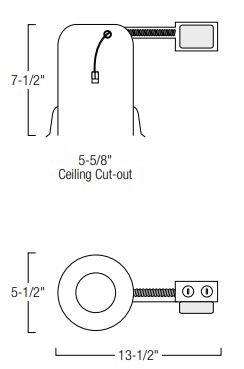

  • Housing: 0.040 aluminum housing adjusts to a maximum ceiling thickness of 5/8" (16mm). Housing terminates at a 1/4" ceiling flange for even positioning of housing angle within the ceiling.
  • Mounting: Four high tension tempered steel springs secure remodel housing to 5/8" thick (max) ceiling (Hole cutout template provided for convenience).
  • Junction Box: Prewired 25 cubic inch 0.064" thickgalvanized steel, with five 1/2", two 3/4" knockouts, four Romex® pryouts, and snap on covers.
  • Insulated ceiling housings are direct contact rated; no minimum clearance is required.
Lamping:
  • 15W LED, 900 lm

Instruction
Spec Sheet
