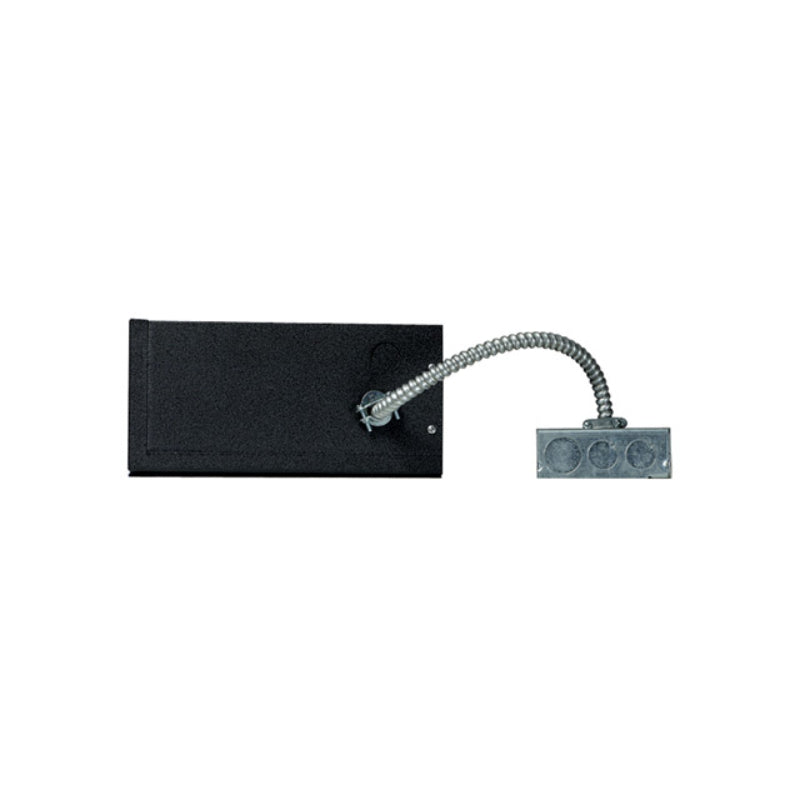

Tech Remote Transformer- 150 Watts, 12V Magnetic, Single Feed

Save $60.90
Tech LightingSKU: 700AT150T277
filler

Voltage: 277V Input/12V Output
Price:
$345.10 $406
Stock:
In stock (107 units), ready to be shipped

Description

150W 12V magnetic remote transformer for use with Tech Lighting's Monorail, KableLite, Wall Monorail or Freejack low voltage lighting system.

Specifications:

  • Type of Transformer: Magnetic
  • Input Voltage: 120V, 277V
  • Output Voltage: 12V
  • Wattage: 150 Watts
  • Feed: Single Feed

Features:

  • Single feed transformer converts 120 line voltage to 12V to provide the necessary voltage for powering a monorail, kable lite, wall monorail or freejack low-voltage lighting system
  • It can power lamps totaling up to150 watts
  • This transformer is equipped with a fast acting secondary circuit breaker that will safely turn the system off should a short occur
  • Once the short has been removed the breaker can be reset
  • The transformer must be installed in a remote but accessible location (such as above the ceiling or in a closet)
  • To simply the installation, the transformer should be located no more than 20-ft from the run or power feed
  • The electrician will need to supply the proper gauge conductor from the transformer to the power feed location based on distance
  • Dimmable with 600W low voltage magnetic dimmer. The dimmer is placed on the line side of the transformer
  • Dimming a transformer may create a buzzing sound, which may be objectionable in some applications. A debuzzing dimming coil can be purchased separately to reduce the audible noise
  • The transformer provides a single 150W output and must be used with a single-feed canopy or other power feed option (sold separately)
  • 12V transformers require the use of 12V lamps

Instruction
Spec Sheet
