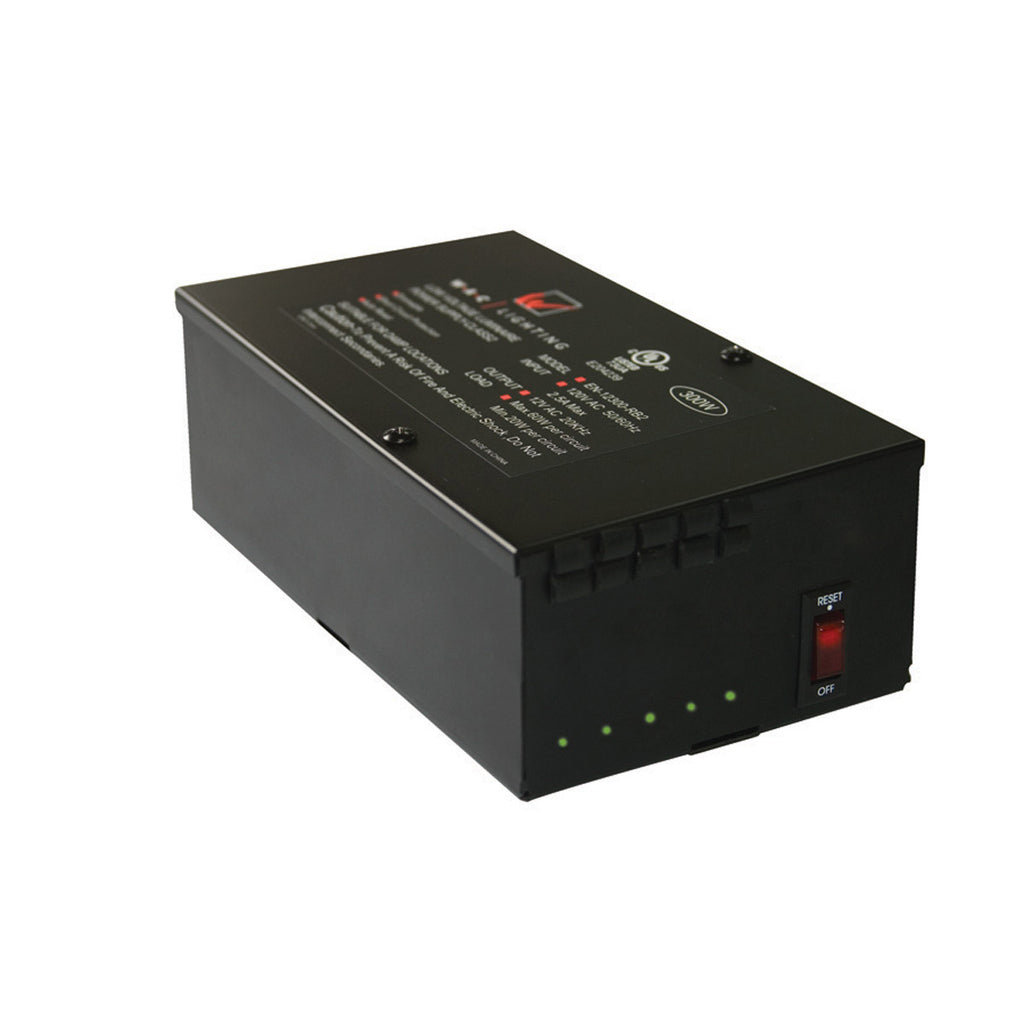

WAC EN-12180-RB2 WAC 180W 12V Class II Enclosed Electronic Transformer

WAC transformers are intrinsically safer transformers because they are compartmentalized to allow no greater than 5 amps of current to be drawn on each compartment. Secondary wiring for transformers do not require conduit sheathed cable or clamp wiring techniques.

Features:

• Finish: Black
• Wattage: 180W
• Input Voltage: 120V 50/60HZ
• Output Voltage: 12V
• Minimum Load: 20W
• Maximum Load: 60W per circuit, 3 x 60W = 180W
• 1W minimum load
• Use for all initial installations to ensure safe and primary side connections in a wiring compartment
• Dimming with Electronic Low Voltage dimmers
• All connections must be made in an enclosure for proper installations
• Secondary wiring for Class 2 transformers does not require conduit sheathed cable or clamp wiring techniques
• Non-metallic sheathed cable may be used for secondary wiring in walls and ceilings
• Drop down to a smaller gauge wire if space in fixture does not permit secure connection directly with the non-metallic sheathed cable
• Built-in auto reset, soft start, short and overload circuit
