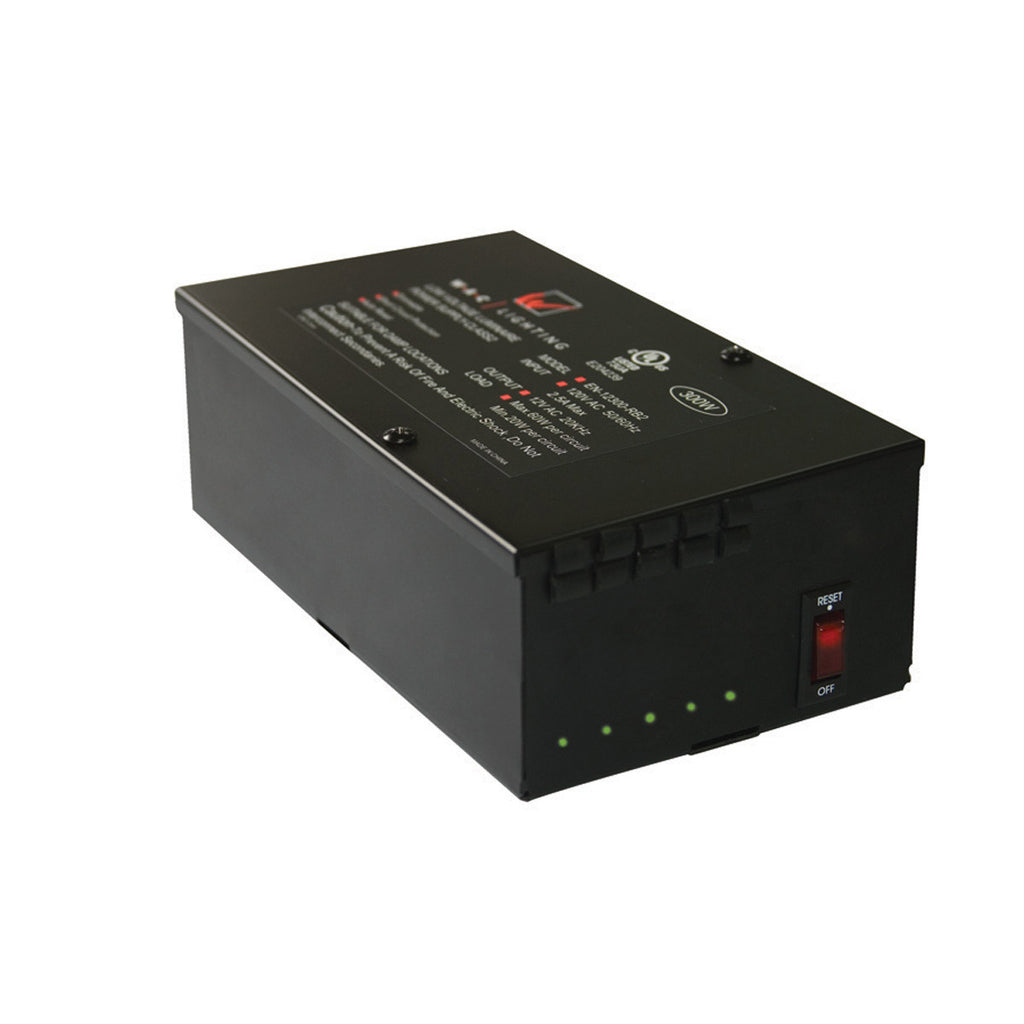

WAC EN-12300-RB2 WAC 300W 12V Class II Enclosed Electronic Transformer

WAC LightingSKU: EN-12300-RB2
filler

Finish: Black
Price:
$166.95
Stock:
In stock (46 units), ready to be shipped

Description

WAC transformers are intrinsically safer transformers because they are compartmentalized to allow no greater than 5 amps of current to be drawn on each compartment. Secondary wiring for transformers do not require conduit sheathed cable or clamp wiring techniques.

Features:

  • Finish: Black
  • Wattage: 300W
  • Input Voltage: 120V 50/60HZ
  • Output Voltage: 12V
  • Minimum Load: 20W
  • Maximum Load: 60W per circuit, 5 x 60W = 300W
  • 1W minimum load
  • Use for all initial installations to ensure safe and primary side connections in a wiring compartment
  • Dimming with Electronic Low Voltage dimmers
  • All connections must be made in an enclosure for proper installations
  • Secondary wiring for Class 2 transformers does not require conduit sheathed cable or clamp wiring techniques
  • Non-metallic sheathed cable may be used for secondary wiring in walls and ceilings
  • Drop down to a smaller gauge wire if space in fixture does not permit secure connection directly with the non-metallic sheathed cable
  • Built-in auto reset, soft start, short and overload circuit
