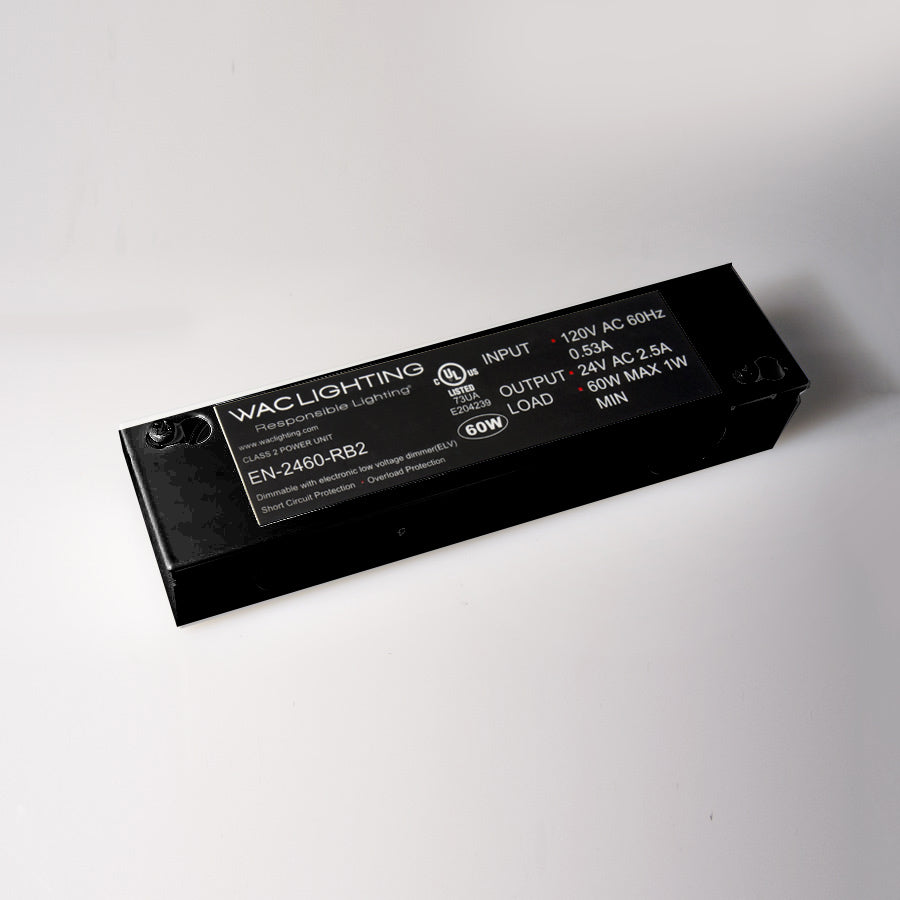

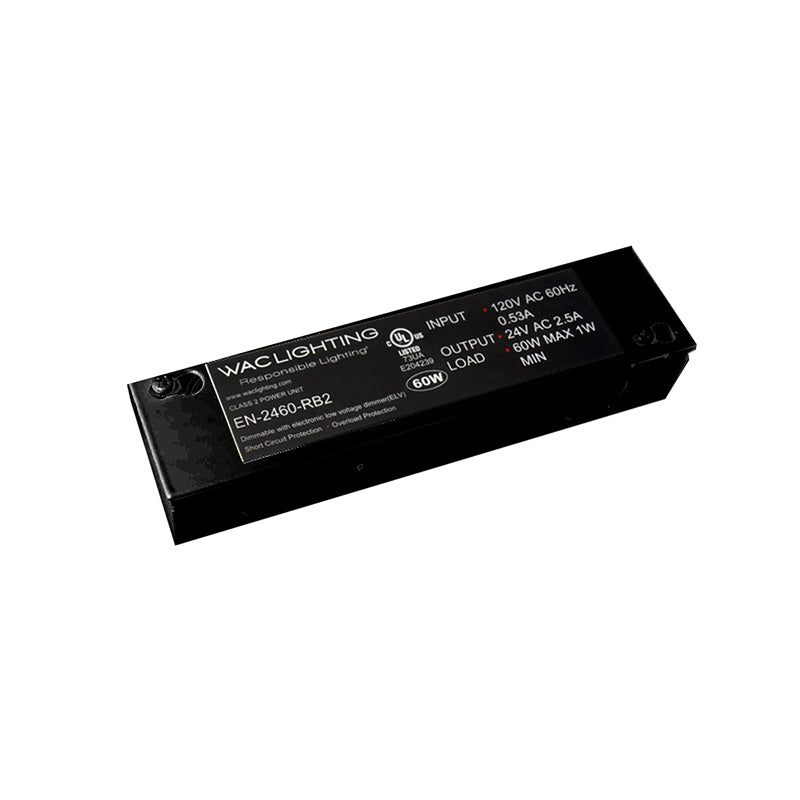

WAC EN-2460-RB2 WAC 60W 24V Remote Class 2 Electronic Transformer

WAC LightingSKU: EN-2460-RB2

Finish: Black
In stock (11024 units), ready to be shipped


Class 2 transformers are intrinsically safer transformers because they are compartmentalized to allow no greater than 5 amps of current to be drawn on each compartment. Enclosure cover is easy to remove.


  • Finish: Black
  • Wattage Capacity: 60W
  • Voltage Input: 120V
  • Voltage Output: 24V
  • 1W minimum load
  • Secondary wiring for Class 2 transformers does not require conduit sheathed cable or clamp wiring techniques
  • Intrinsically safe, Class 2 transformers permit no greater than a 5 amp current be drawn
  • Non-metallic sheathed cable may be used for secondary wiring in walls and ceilings
  • Drop down to a smaller gauge wire if space in fixture does not permit secure connection directly with the non-metallic sheathed cable
  • Powers most cabinet fixtures
  • Built-in auto reset, soft start, short and overload circuit protection features. The soft start delayed start feature extends lamp life by delaying the abrupt inrush current to the lamp
  • Dimmable with electronic low voltage dimmers
