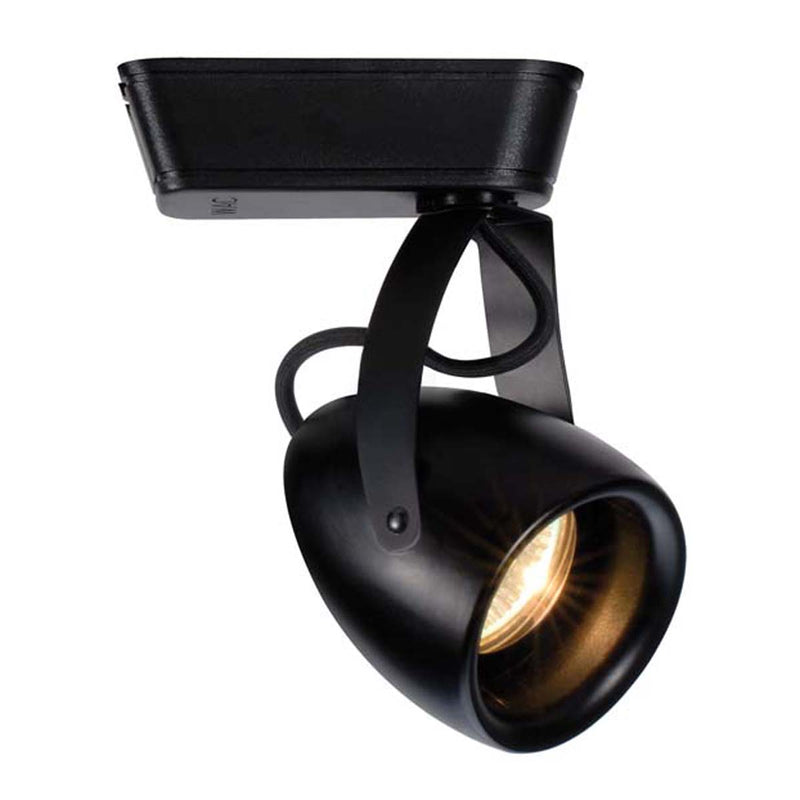

WAC J-LED820 Impulse 22W LED Track Head, J Track

WAC LightingSKU: J-LED820S-27-BK

Beam: 20°
Color Temperature: 2700K (85 CRI)
Finish: Black
In stock (28 units), ready to be shipped

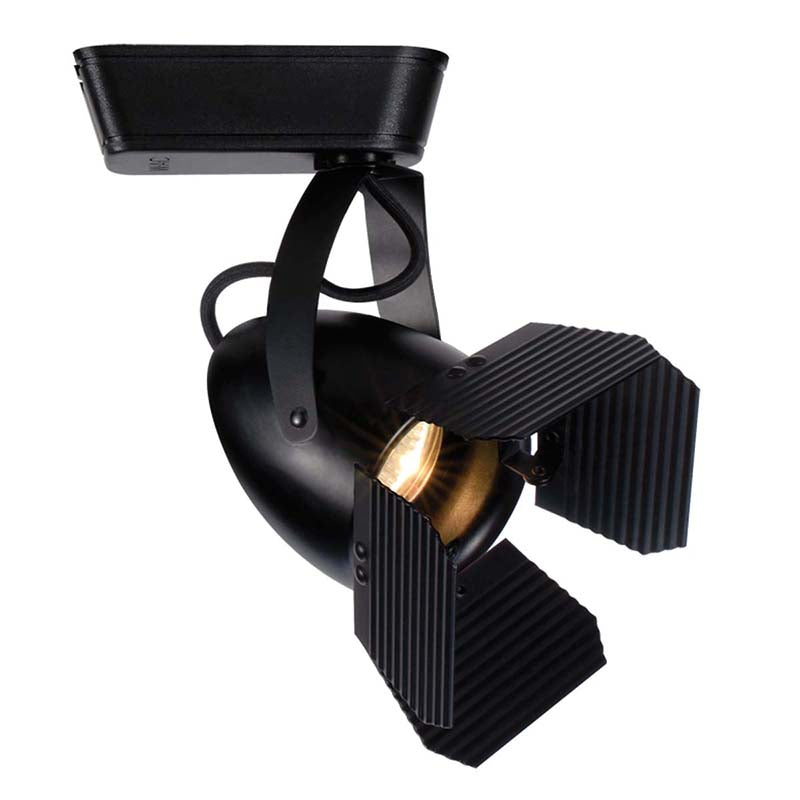

Robustly engineered, this 22W high output Impulse is thermally efficient and offers architectural lighting options with framing projector and barn-door accessories. Spot and flood beam spreads and two color temperatures make this an all-in-one choice for lighting.


  • Track System: J Track
  • Finish: Black, Dark Bronze, White
  • Wattage: 22W
  • Voltage: 120V
  • Beam Spread: 20°, 40°
  • Color Temperature: 2700K (85 CRI), 2700K (90 CRI), 3000K (85 CRI), 3000K (90 CRI), 3500K (85 CRI), 4000K (85 CRI)
  • Lumens: Up to 1870
  • Delivered Lumens: Up to 1390
  • CBCP: Up to 10104
  • CRI: Up to 90
  • ELV Dimming: 100% - 10%
  • Lens Options: 1 replacement lens
  • Rated Life: 60,000 hours
  • Construction: Die-cast aluminum body with steel yoke and clear lens
  • Smooth and continuous ELV dimming
  • ANSI Compliant Warm/Neutral LED bins for a finer color consistency
  • 360° horizontal rotation and 180° vertical aiming
  • Perfect for retail or museum applications where the use of a barn door or framing projector is needed for beam control
  • Free of projected heat and UV radiation
  • Driver concealed within the fixture

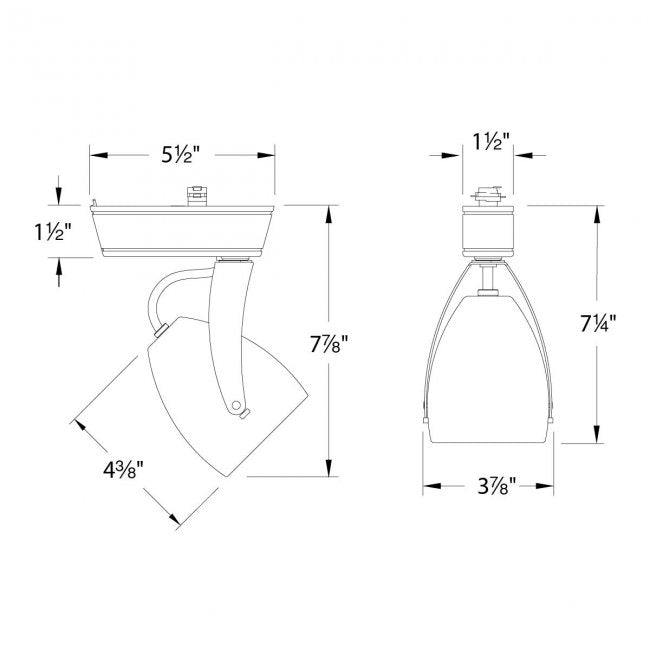

  • Width: 5.5"
  • Height: 7.25"


  • 1 x 22W COB LED (Included)

    Spec Sheet
