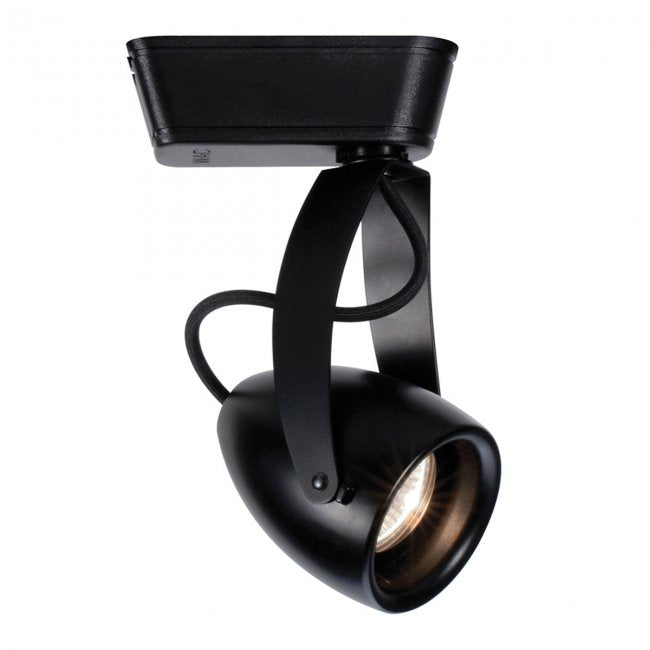

WAC H-LED810 Impulse 14W LED Track Head, H Track

WAC LightingSKU: H-LED810S-27-BK
filler

Beam: 20°
Color Temperature: 2700K (85 CRI)
Finish: Black
Price:
$159.95
Stock:
In stock (57 units), ready to be shipped

Description

Robustly engineered, this thermally efficient luminaire offers architectural lighting options with framing projector and barn-door accessories. Spot and flood beam spreads and two color temperatures make this an all-in-one choice for lighting.

Features:

  • Track System: H Track

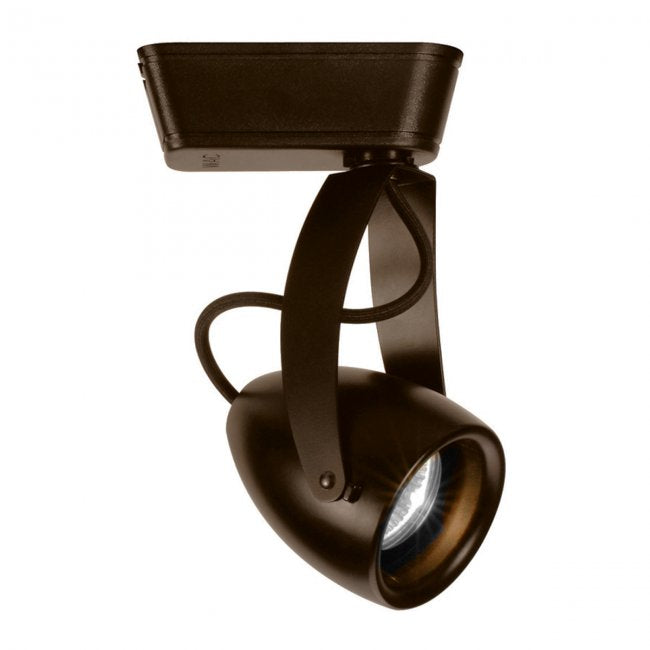

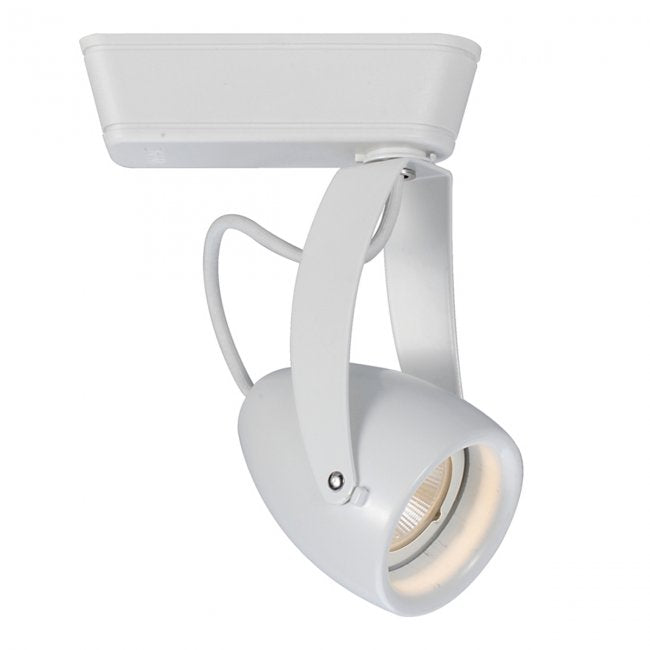

  • Finish: Black, Dark Bronze, White
  • Wattage: 14W
  • Voltage: 120V
  • Beam Spread: 20°, 40°
  • Color Temperature: 2700K (85 CRI), 2700K (90 CRI), 3000K (85 CRI), 3000K (90 CRI), 3500K (85 CRI), 4000K (85 CRI)
  • Lumens: Up to 1150
  • Delivered Lumens: Up to 970
  • CBCP: Up to 5238
  • CRI: Up to 90
  • Dimming: 100% - 10%
  • Lens Options: 1 replacement lens
  • Rated Life: 60,000 hours
  • Material: Die-cast aluminum, Steel, Lens
  • Smooth and continuous ELV dimming
  • ANSI Compliant Warm/Netural LED bins for a finer color consistency
  • 360° horizontal rotation and 180° vertical aiming
  • Perfect for retail or museum applications where the use of a barn door or framing projector is needed for beam control
  • Free of projected heat and UV radiation
  • Alternate beam angles may be ordered separately
  • Title 24 California Energy Comission Compliant (90 CRI versions)

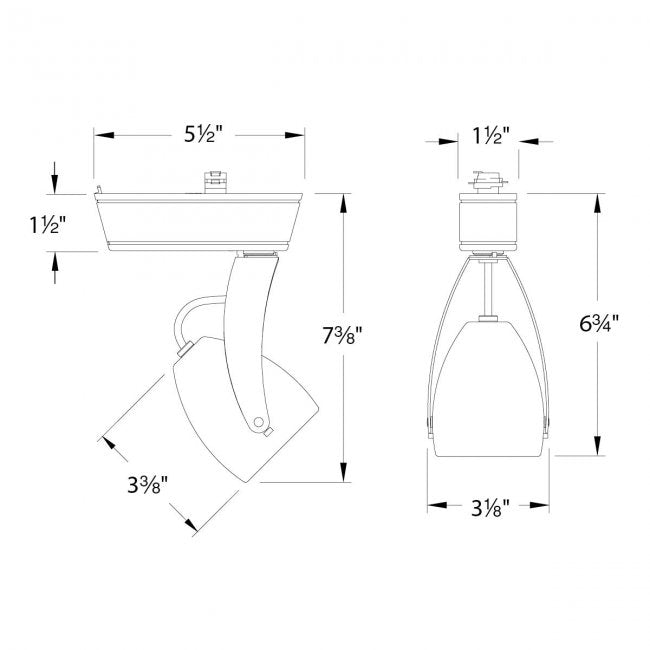

Dimensions

  • Width: 5.5"
  • Height: 6.75"

Lamping:

  • 1 x 14W COB LED (Included)
