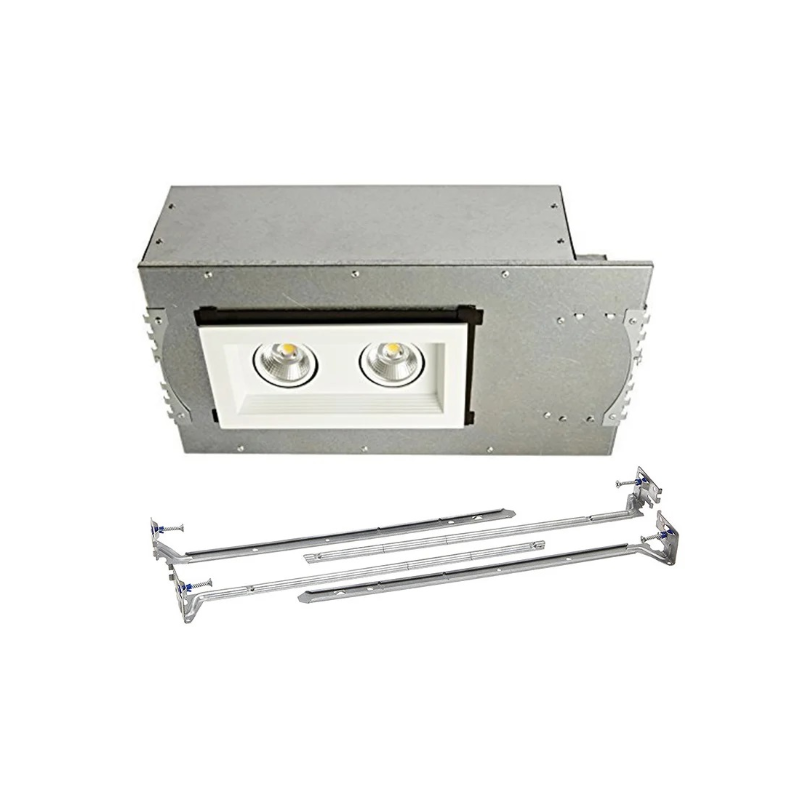

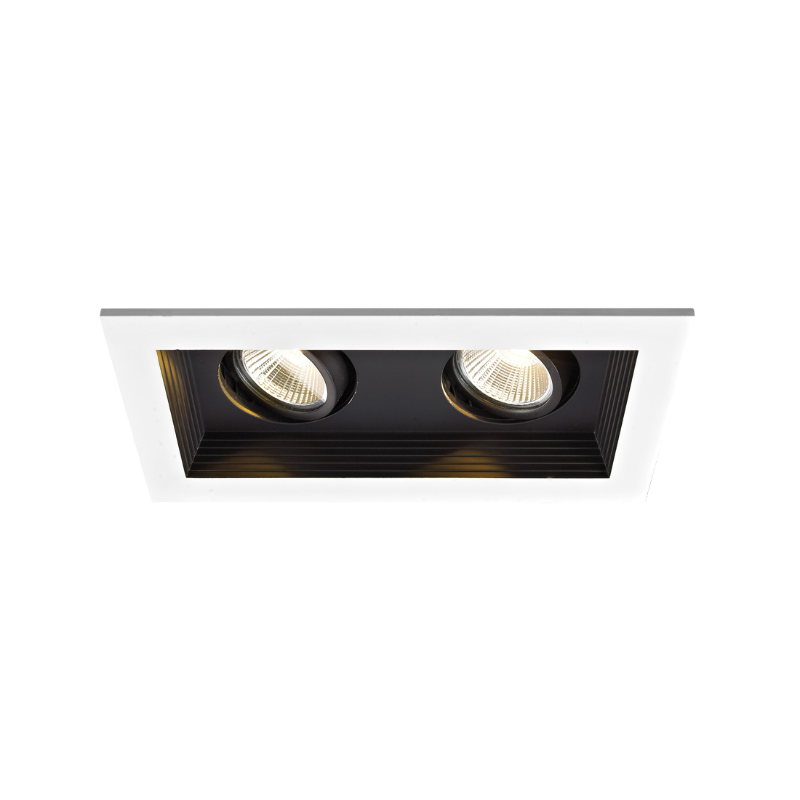

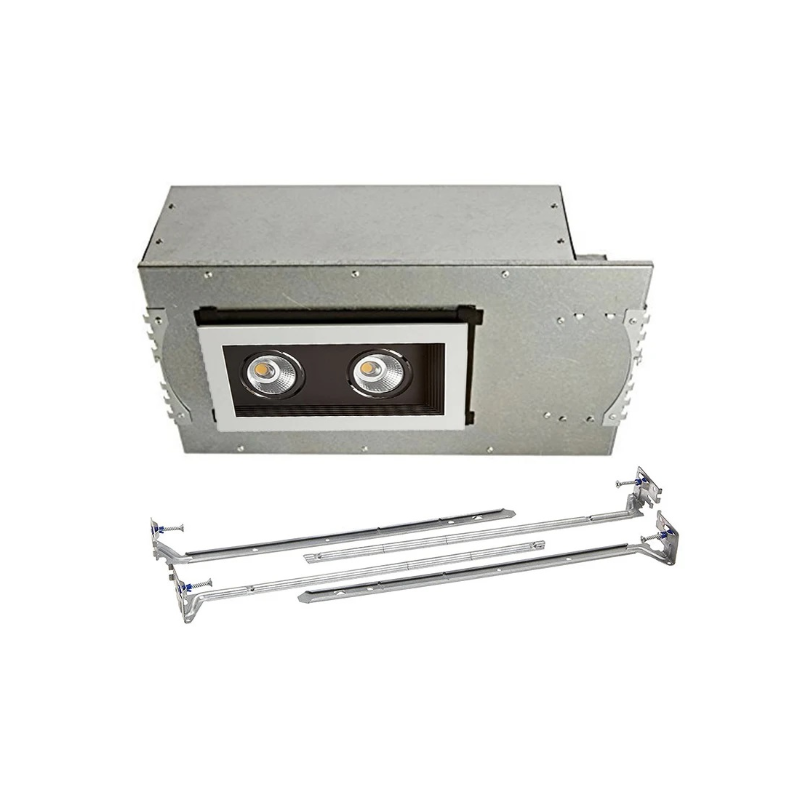

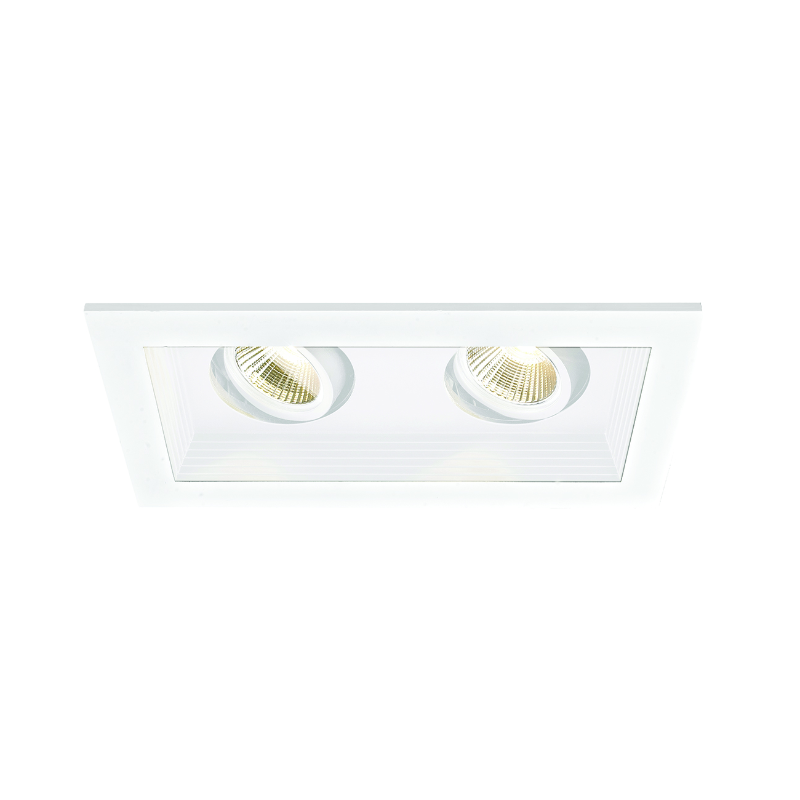

WAC MT-3LD211NA Mini LED Multiple Spots 2 Light New Construction Housing with Light Engine and Trim

Integral housing adjustable recessed spot light.

Features

• Construction: Die-cast aluminum heat sink painted black. Trim, housing and junction box are 20 gauge steel. Frame and hanger bars are heavy gauge galvanized steel

• Finish: Black, White

• Wattage: 22W
• Voltage: 120V
• Color Temperature: 2700K, 3000K, 3500K, 4000K
• Lumens: up to 1930
• ELV Dimming: 100-5%

• CRI: 90
• Rated Life: 50000 Hours
• Beam: 25°, 45°
• 25° vertical tilt and 350° horizontal rotation
• 30° visual cutoff for glare control
• Driver concealed within the fixture
• J-Box: Seven knockouts and four Romex® style wiring connectors provided for ease of installation. Rated for branch wiring.

• Supplied with hanger bars, adjustable from 14.5" - 25" to accommodate various joist construction and grid sizes.
• Hanger bars include a captive mounting “screw-nail” for ease of installation.
• Accommodates surface up to 1" thick

• Non-IC Rated, Airtight

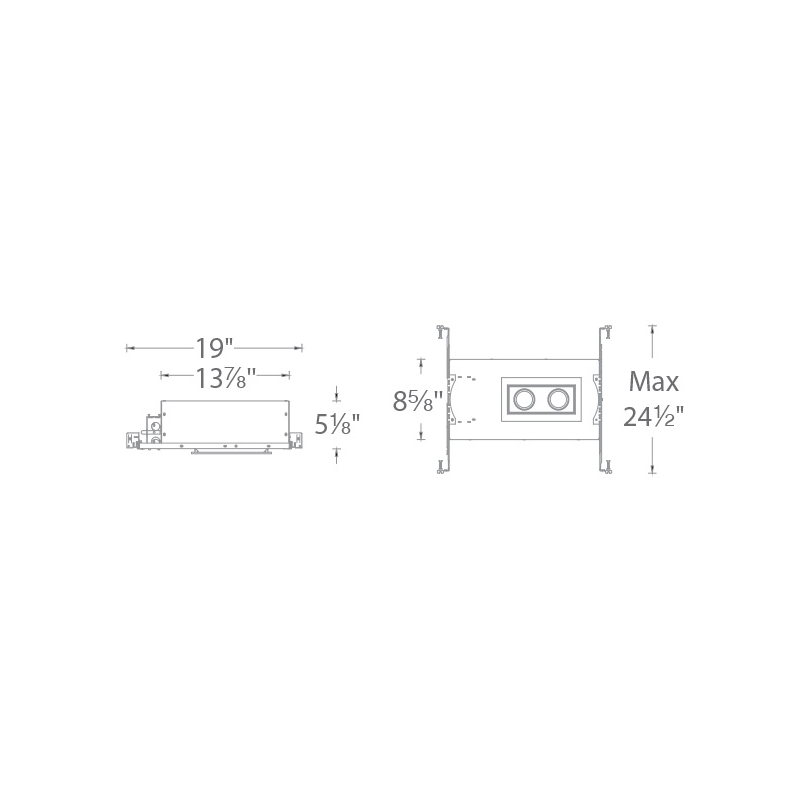

Dimensions

• Width: 19"
• Height: 5.13"

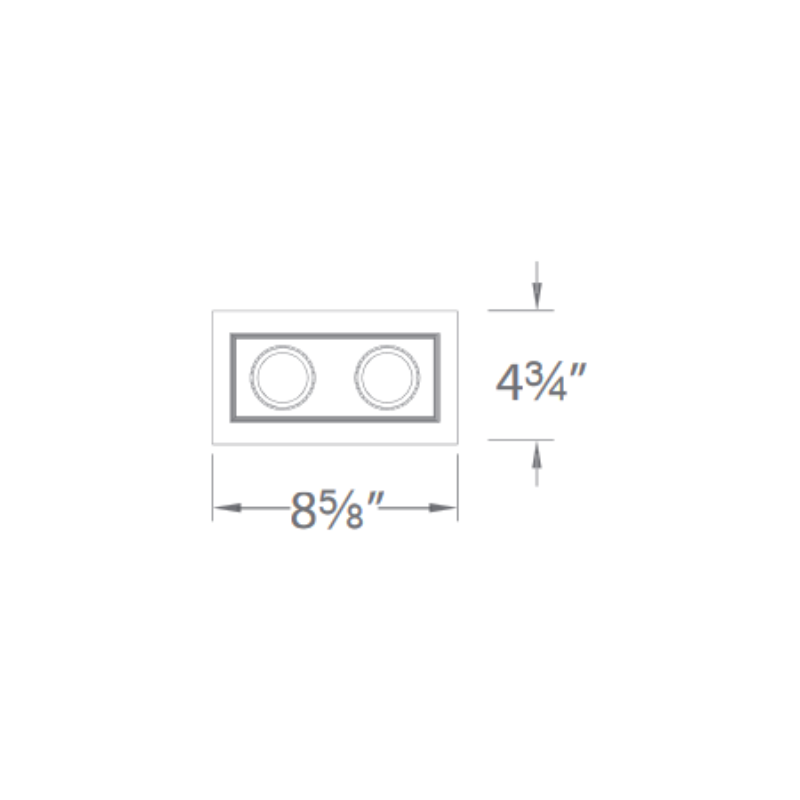

• Cutout: 8.13" x 4.13"


Lamping

• 2 Lights, 22W total LED

Documents

• Spec Sheet
• Instruction Sheet
