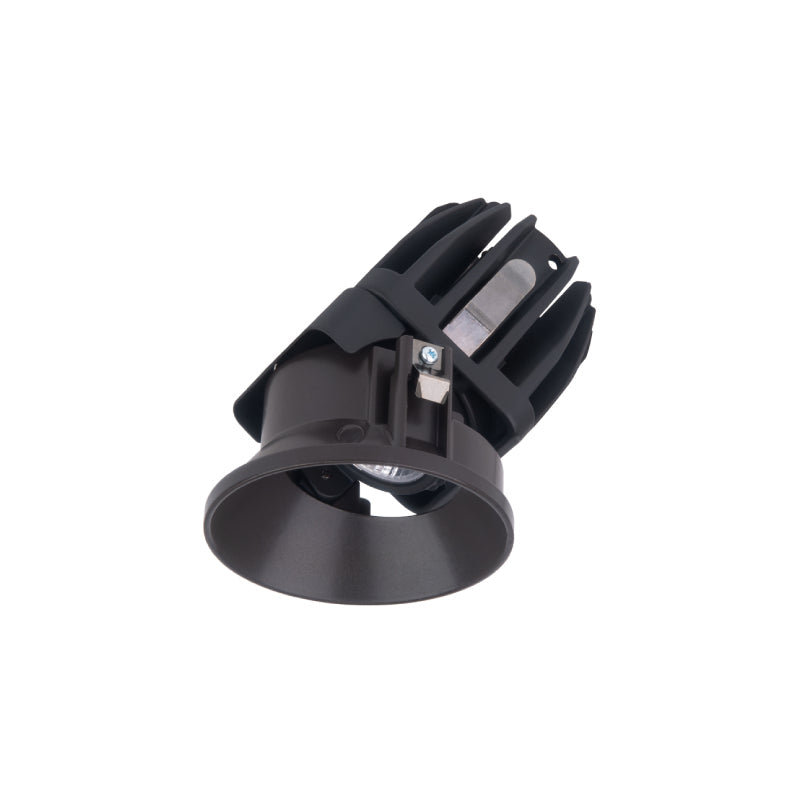

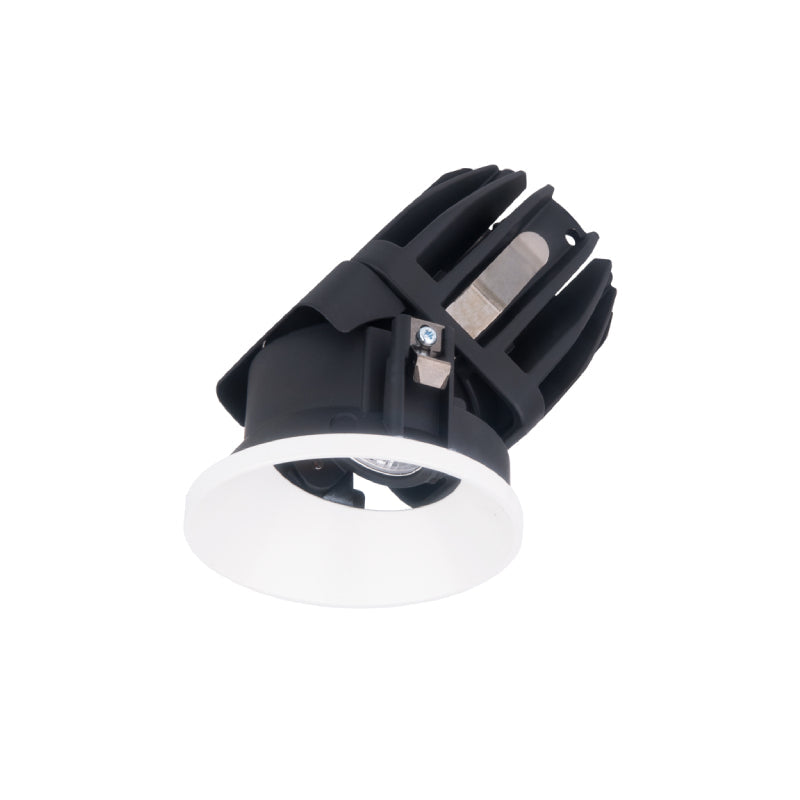

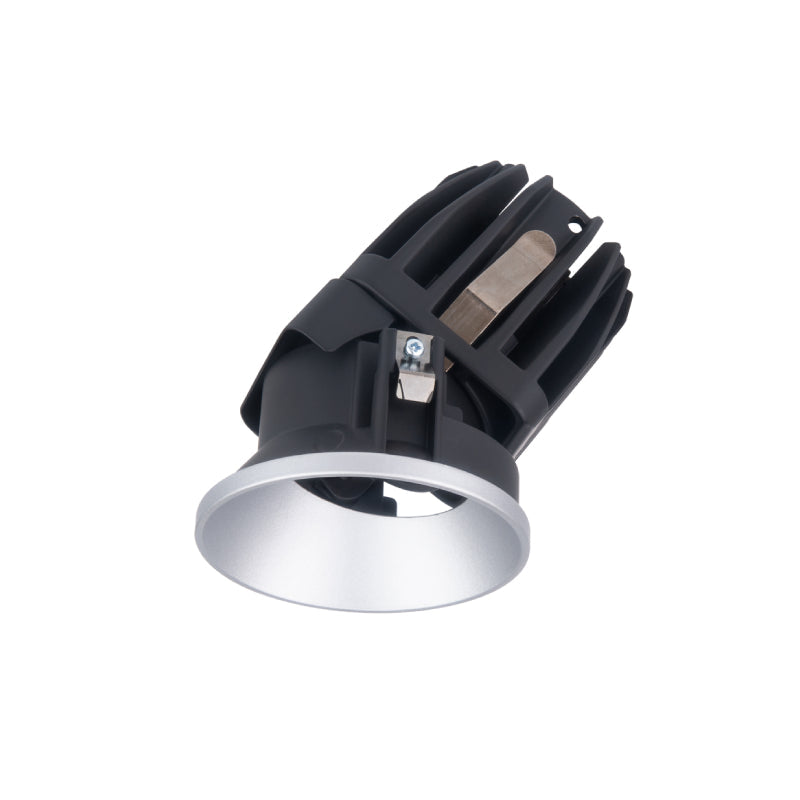

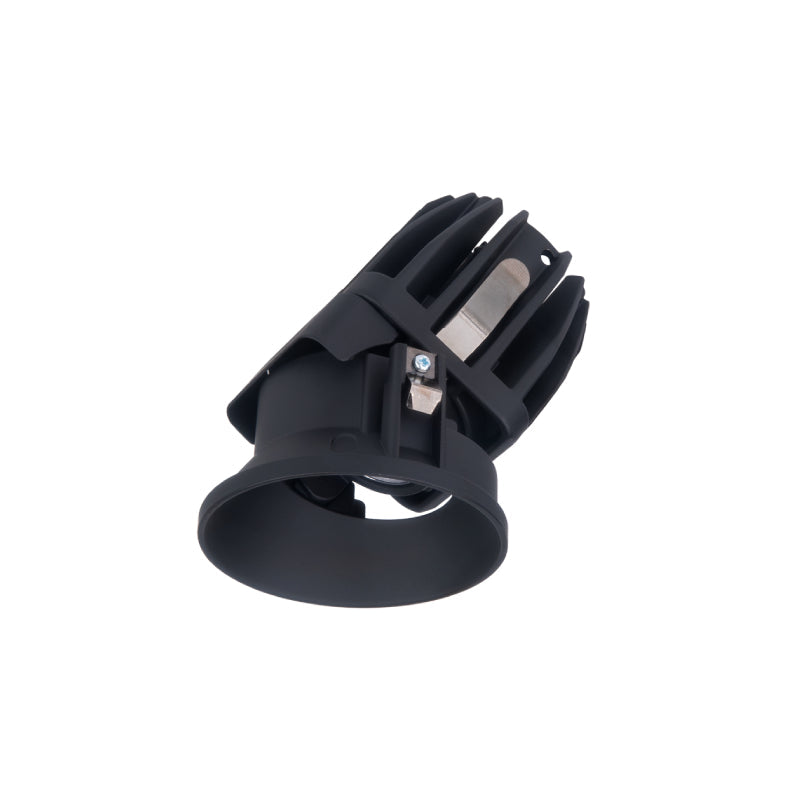

WAC R2FRA1L FQ 2" Shallow Round Adjustable Trimless, Dim To Warm
The FQ Recessed series offers a complete line of high performance LED luminaires that provide outstanding functionality and quality. The series features superlative glare control with 30° shielding, 35° vertical tilting and 360° horizontal rotation, and uniform floor-to-ceiling wall washing. Multiple power level options and a full line of round and square, trimmed and trimless luminaires offer versatile solutions for various lighting applications. Easy to order, install, and service.
Features
- Housing sold separately
- Finish: Black, Dark Bronze, Haze, White
- Color Temperature: Dim To Warm 3000K-1800K
- Voltage: 120-277V
- Lumens: Up to 855
- CBCP: Up to 1560
- CRI: 90
- Beam: 40°/55°
- Rated Life: 50000 Hours
- Construction: Durable die-cast aluminum trim with aluminum heat sink
- Two-piece die-cast construction, compact size suitable for shallow ceiling plenum
- Light engine mounted on trim with springs for easy replacement
- 0-35° vertical tilting and 365° horizontal rotation
- Field changeable beam angle with reflectors provided
- Accepts one Lens or glare control accessory

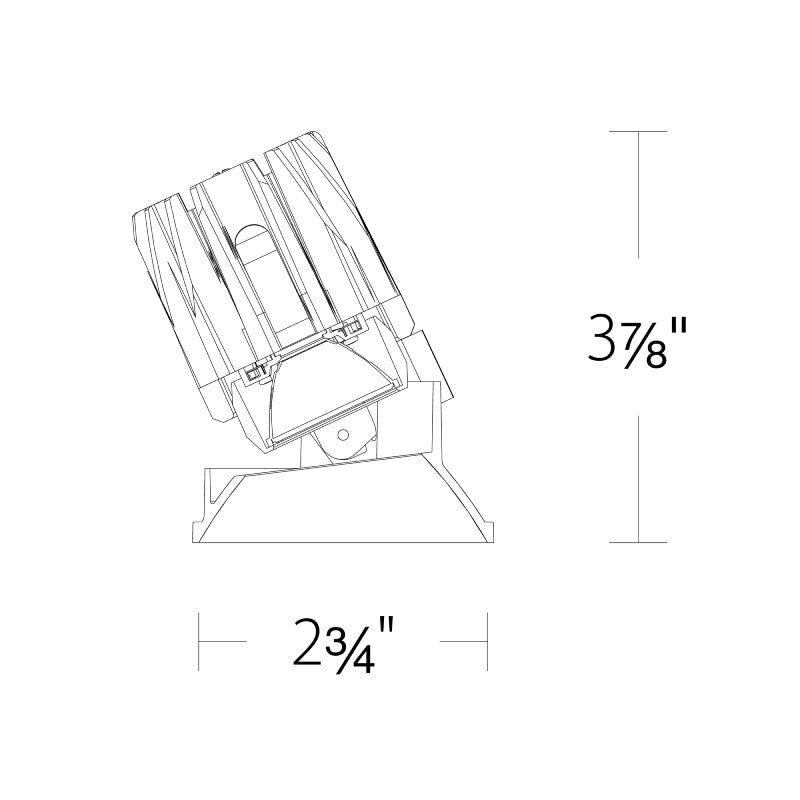

Dimensions
- Width: 2.75"
- Height: 3.88"
- Ceiling cutout: 3.5"
- Ceiling thickness: 0.5"-1"
