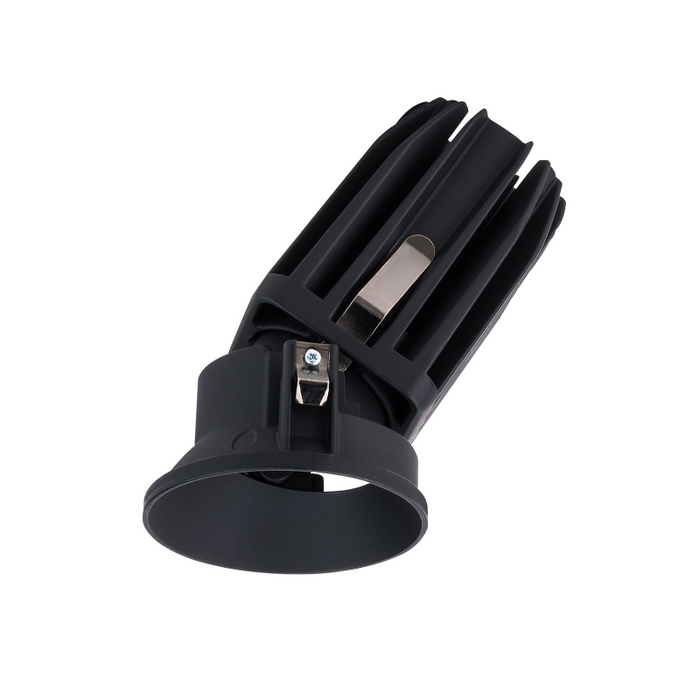

WAC R2FRAL-WD 2" Round Adjustable Trimless, Warm Dim
The FQ Recessed series offers a complete line of high performance LED luminaires that provide outstanding functionality and quality. The series features superlative glare control with 30° shielding, 35° vertical tilting and 360° horizontal rotation, and uniform floor-to-ceiling wall washing. Multiple power level options and a full line of round and square, trimmed and trimless luminaires offer versatile solutions for various lighting applications. Easy to order, install, and service.
Features
- Finish: Black, Dark Bronze, Haze, White
- Construction: Durable Two-piece die-cast Aluminum trim with Aluminum heat sink
- Voltage: 120-277V
- Color Temperature: 3000K -1800K
- Delivered Lumens: up to 1825
- CBCP: up to 1560
- CRI: 90
- ELV Dimming: 100-1%
- 0-10V Dimming: 100-1%
- TRIAC Dimming: 100-1%
- Rated Life: 50,000 Hours
- Light engine mounted on trim with springs for easy replacement
- Center beam alignment retained throughout adjustment range
- 0-35° vertical tilting and 365° horizontal rotation
- Field changeable beam angle with reflectors provided
- Accepts one Lens or glare control accessory
Dimensions
- Aperture Size: 2"
- Width: 2.75"
- Height: 5"
- Ceiling Cutout: 3.5" Dia.
- Ceiling Thickness: 0.5" - 1"
Lamping
- 15W LED (Not Included)
