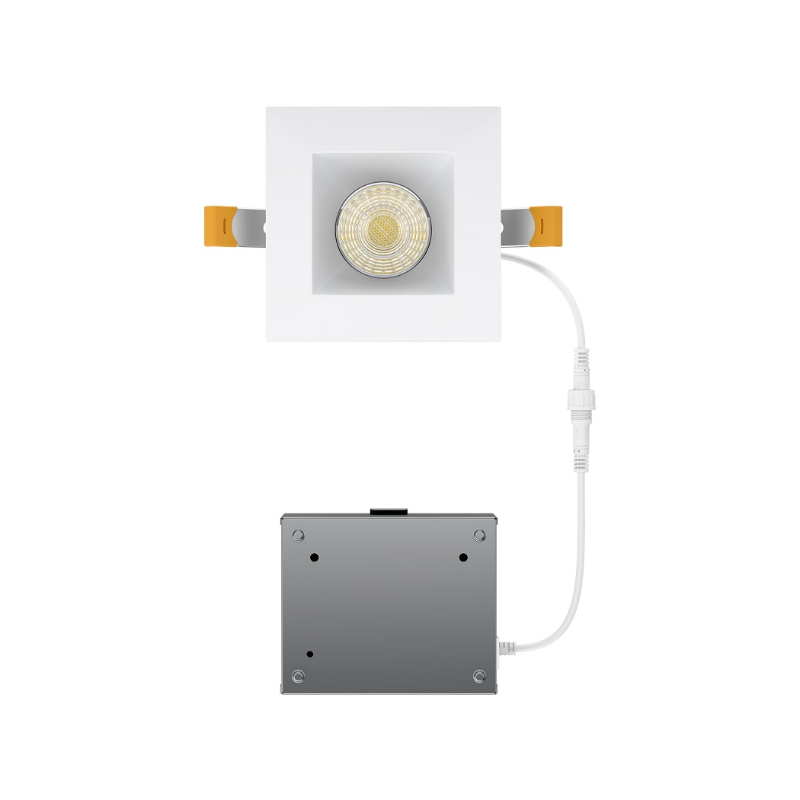

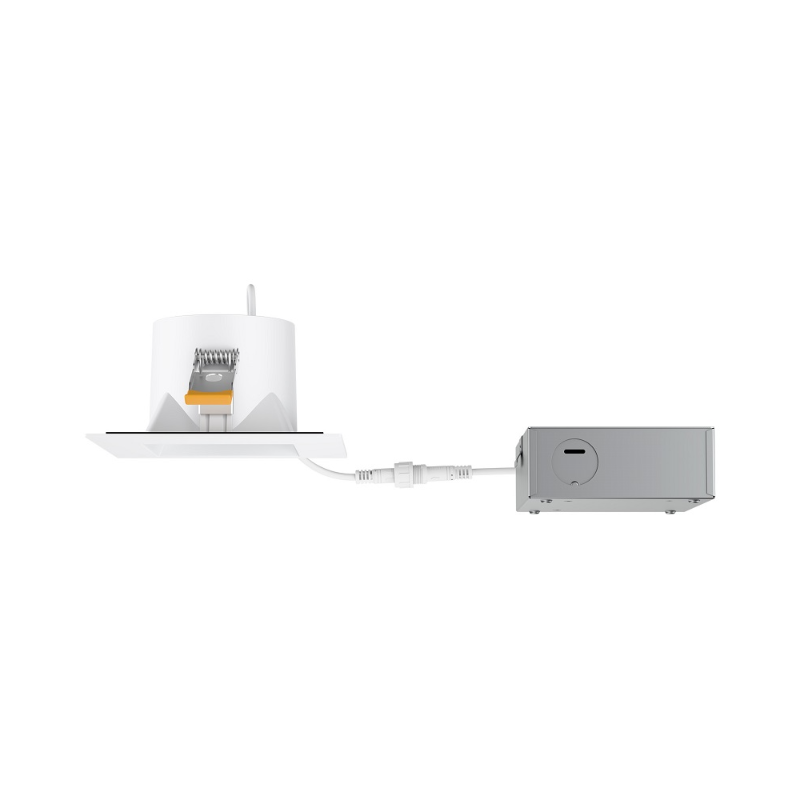

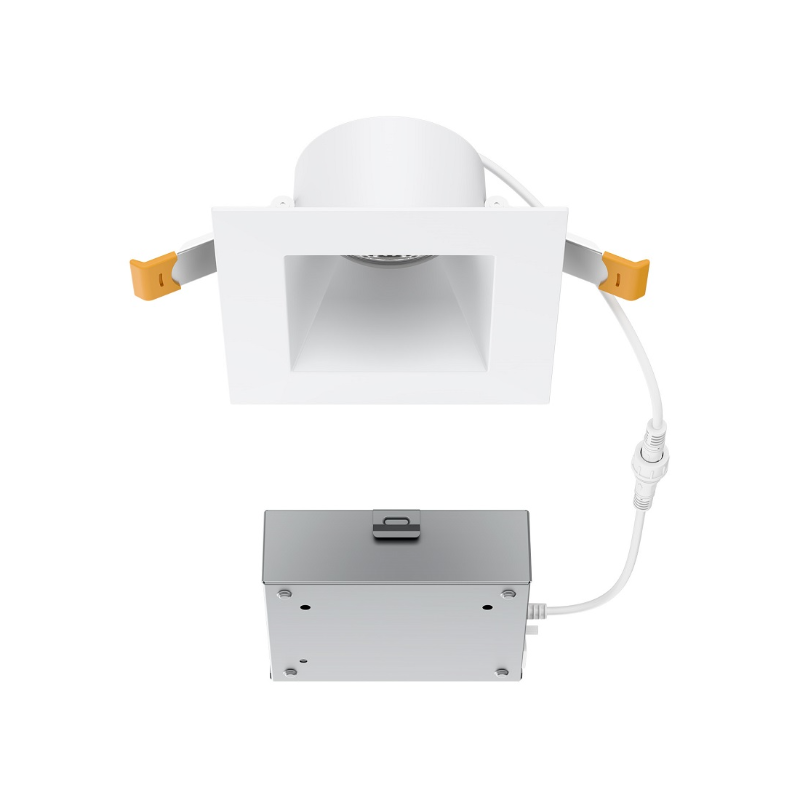

WAC R4DSDR2-F9CS Pop-In 4" Square LED Remodel Downlight with Remote Driver, CCT Selectable

Minimum profile downlight with remote driver for easy remodel or new construction installation.

Features

• Finish: Black, White
• Construction: Die-cast Aluminum
• Lens: Frosted TIR Lens
• Wattage: 12W
• Voltage: 120-277V
• Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K Selectable
• Delivered Lumens: 935
• CRI: 90

• ELV Dimming: 100-5%
• TRIAC Dimming: 100-5%
• Rated Life: 50,000 Hours
• Beam Angle: 45°

• Remote driver box allows easy installation into shallow plenums

• Sold as remodel, but new construction frame available
• Heavy gauge retention clips secures fixture to ceiling
• Driver included
• IC Rated, Airtight

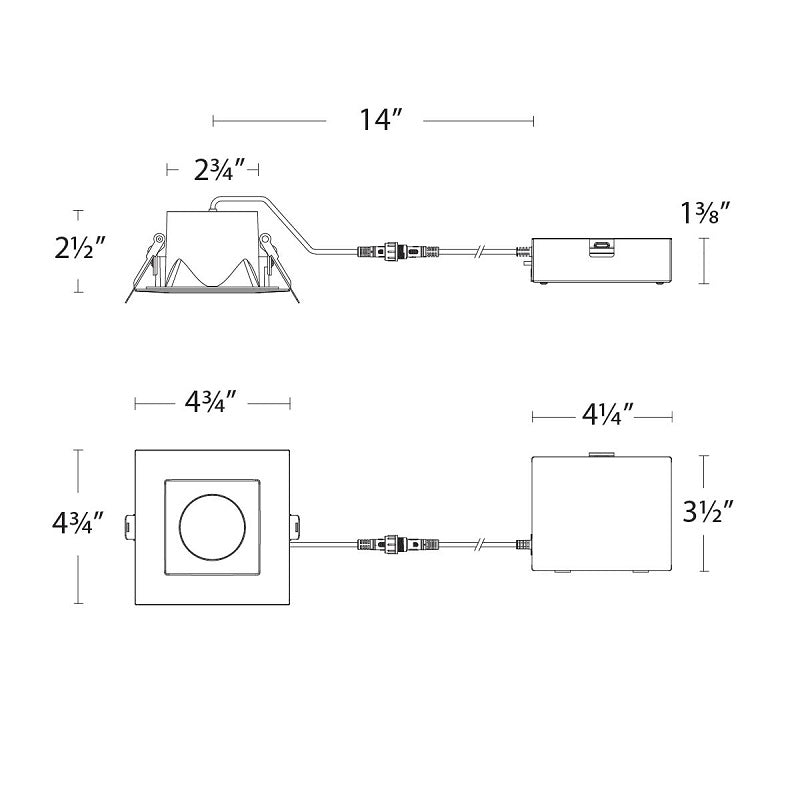

Dimensions

• Aperture Size: 4"
• Width: 4.75"
• Height: 2.5"
• Ceiling Cutout: 4"
• Ceiling Thickness: 0.5" - 1.5"

Lamping

• 1 x 12W Integrated LED (Included)


Documents

• Spec Sheet
• Instruction Sheet
