WAC R4FRAT-930 4" Round Adjustable Trimmed, 3000K
The FQ Recessed series offers a complete line of high performance LED luminaires that provide outstanding functionality and quality. The series features superlative glare control with 30° shielding, 45° vertical tilting and 360° horizontal rotation, and uniform floor-to-ceiling wall washing. Multiple power level options and a full line of round and square, trimmed and trimless luminaires offer versatile solutions for various lighting applications. Easy to order, install, and service.
Features

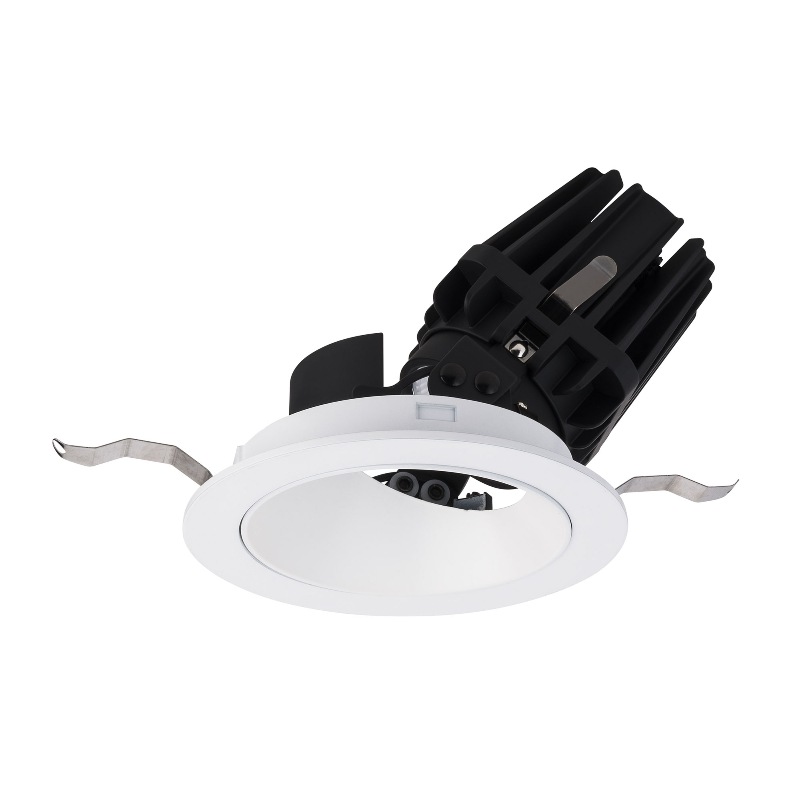

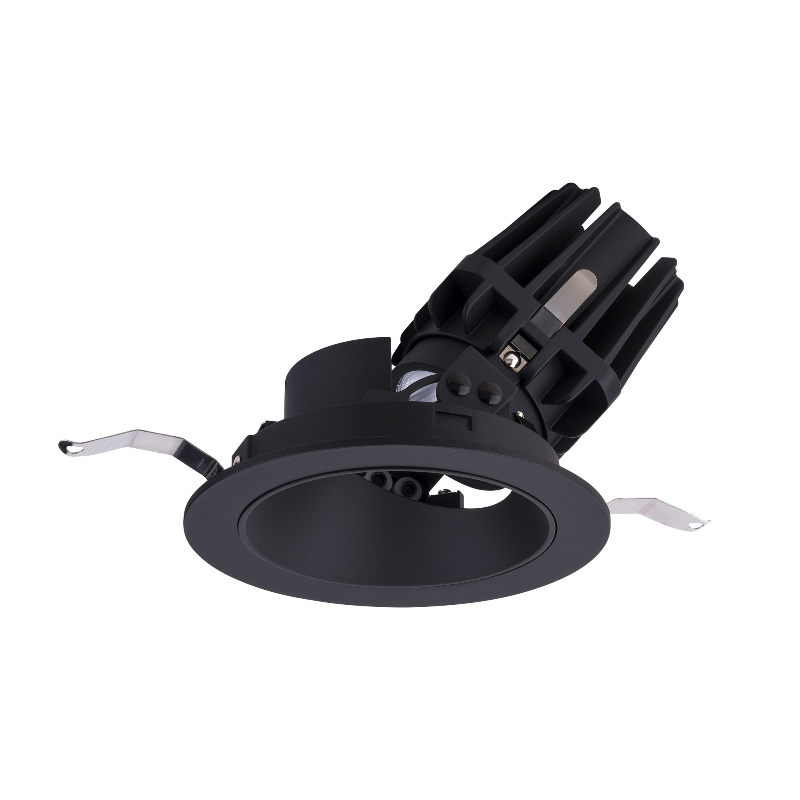

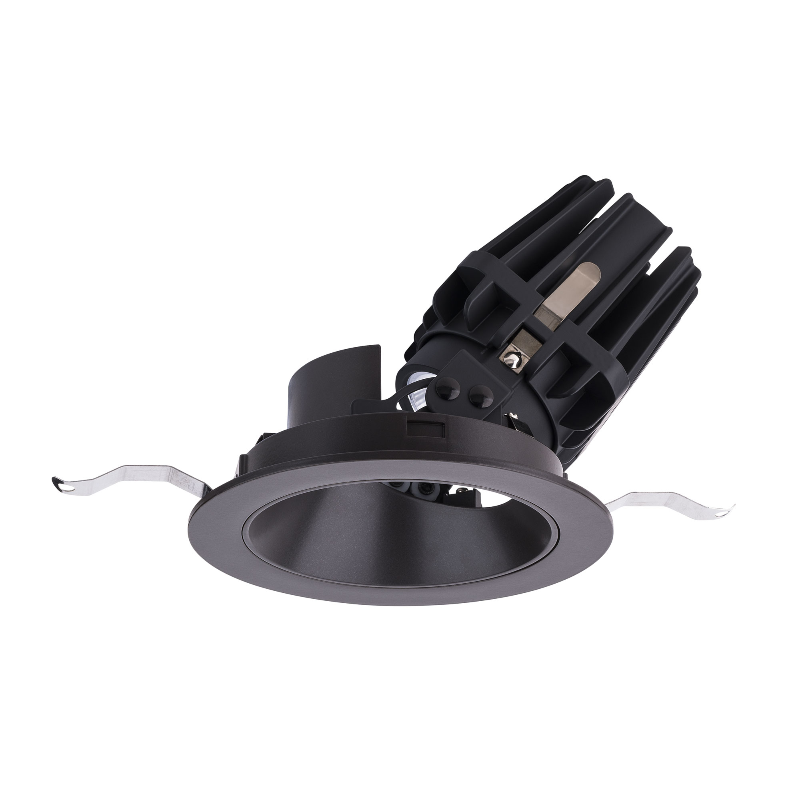

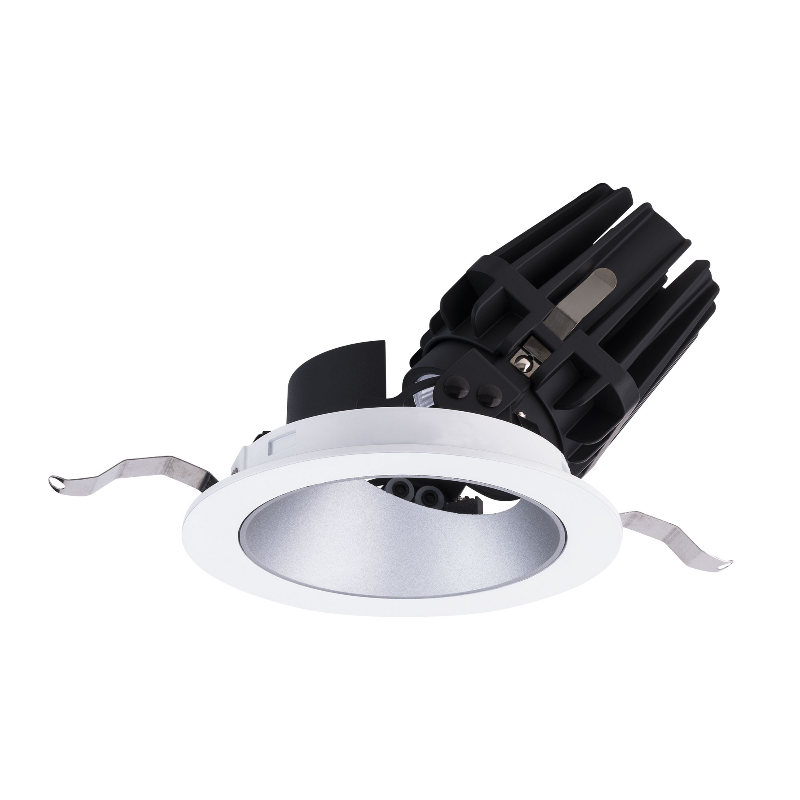

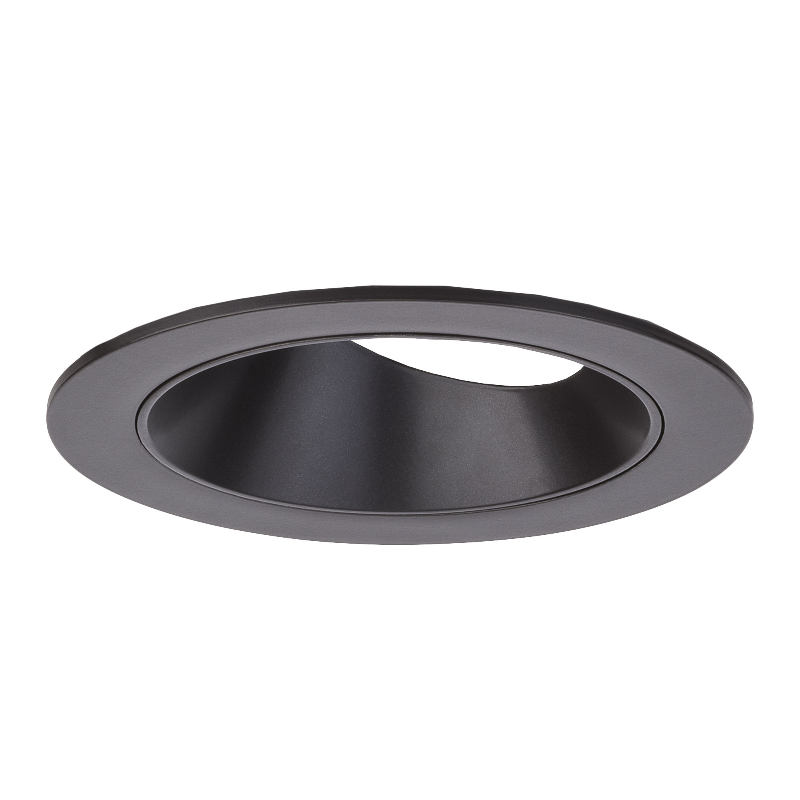

- Finish: Black, Dark Bronze, Haze/White, White
- Construction: Durable Two-piece die-cast Aluminum trim with Aluminum heat sink
- Voltage: 120-277V
- Color Temperature: 3000K
- Delivered Lumens: 2375lm
- CBCP: Up to 5915
- CRI: 90
- ELV Dimming: 100-1%
- 0-10V Dimming: 100-1%
- TRIAC Dimming: 100-1%
- Rated Life: 50,000 Hours
- 0-45° vertical tilting and 365° horizontal rotation
- Center beam alignment retained throughout adjustment range
- Light engine mounted on trim with springs for easy replacement
- Field changeable beam angle with reflectors provided
- Accepts one Lens or glare control accessory

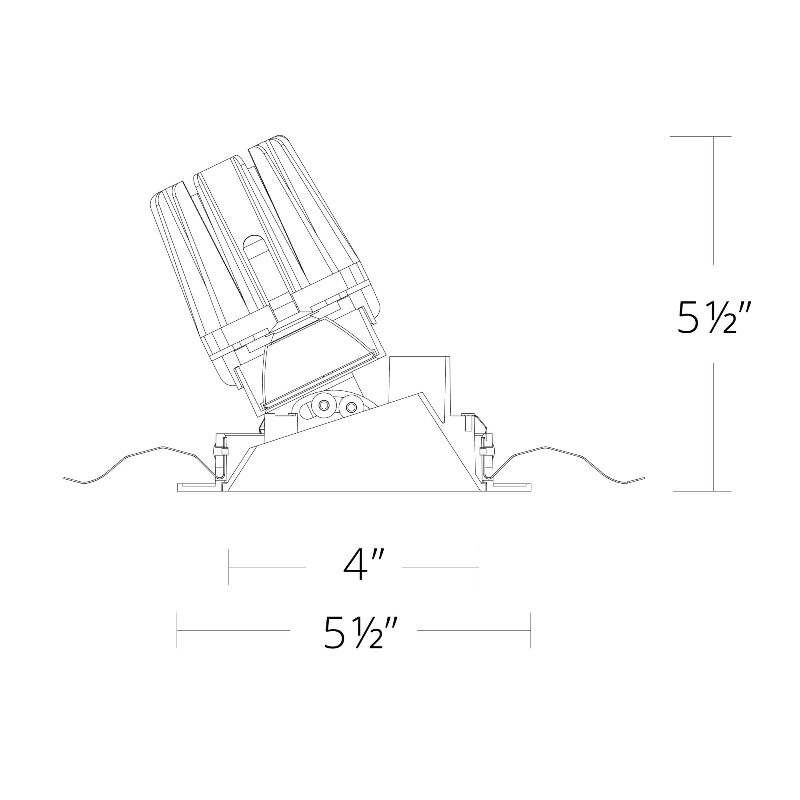

Dimensions
- Aperture Size: 4"
- Width: 5.5"
- Height: 5.5"
- Ceiling Cutout: 4.75" Dia.
- Ceiling Thickness: 0.5" - 1"
Lamping
- Depends on Housing selection
