- Construction: 20 gauge galvanized Steel
- Power: 28W
- Voltage: 120-277V
- Type: Airtight
- Trim Shape: Round (Spackle frame included)
- ELV Dimming: 100-5%
- 0-10V Dimming: 100-1%
- TRIAC Dimming: 100-5%
- One size housing for all round and square trim types for simplicity and versatility
- Uniformed ceiling cutout size for DL, ADJ, WW in Round or Square, Trim or Trimless
- Quick connectors installed on driver for easy driver replacement
- EM fixtures provided with integral emergency battery backup with 24" lead wire remote test switch. Provides at least 90 minutes of 6W illumination during emergency operation.
- New construction housings included with universal mounting brackets and hanger bars
- Driver concealed within the fixture

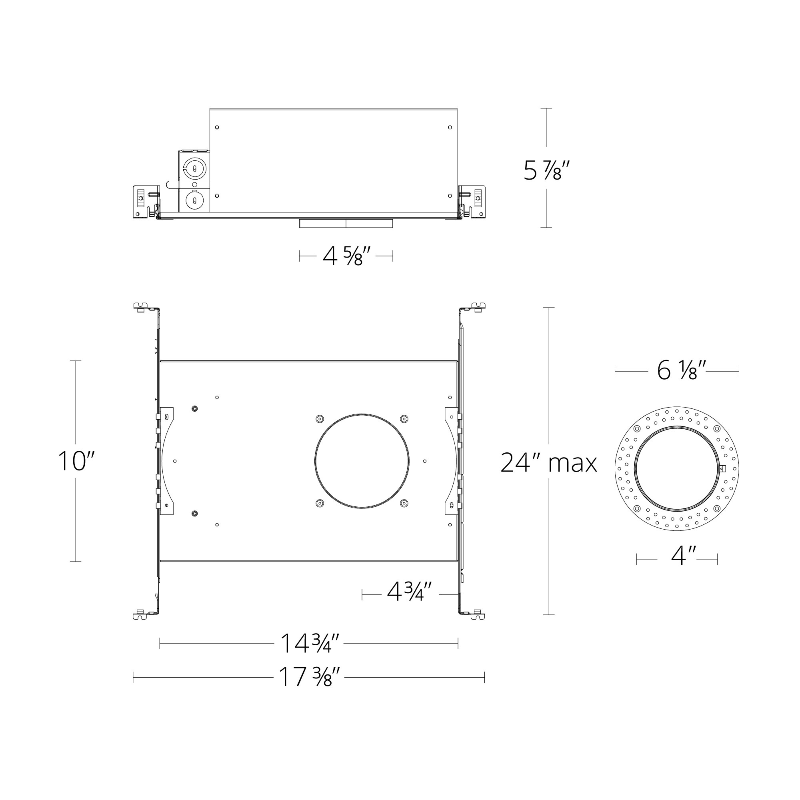

- Aperture Size: 4"
- Length: 24"
- Width: 17.38"
- Height: 5.88"
- Ceiling Cutout: 4.75" Dia.
- Ceiling Thickness: 0.5" - 1"
