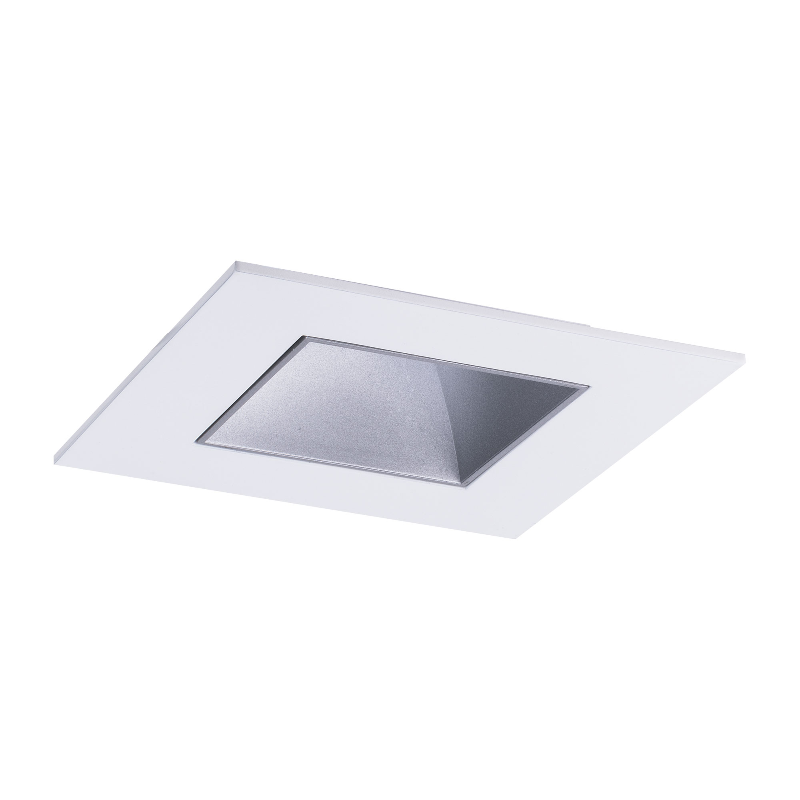

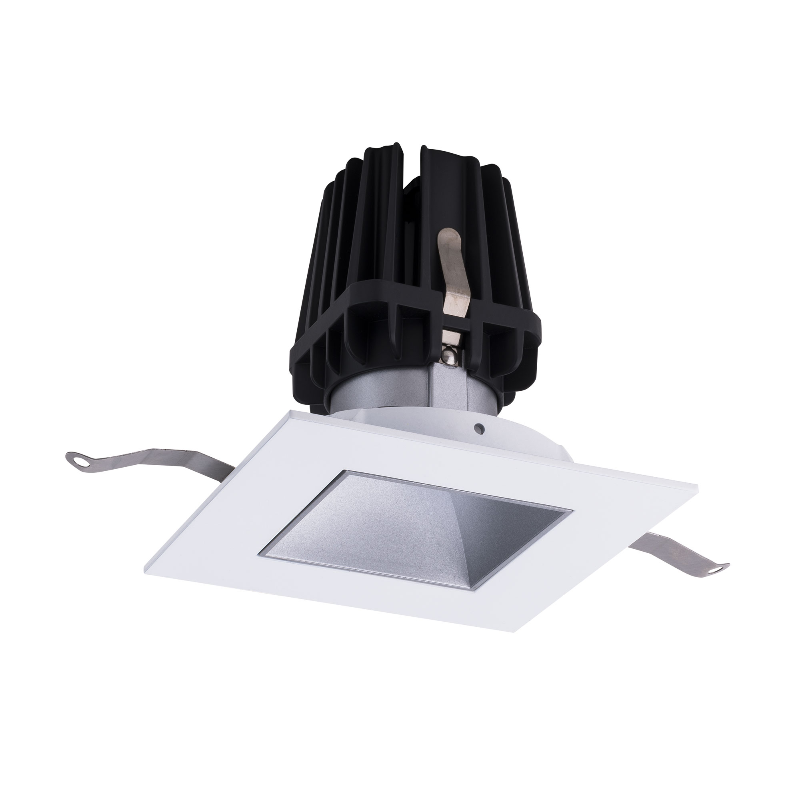

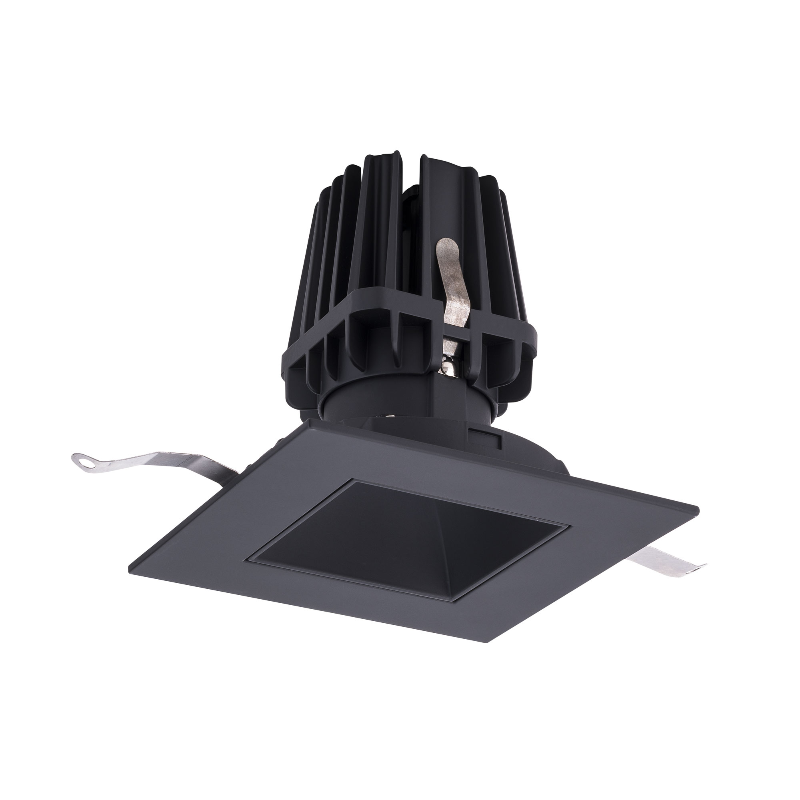

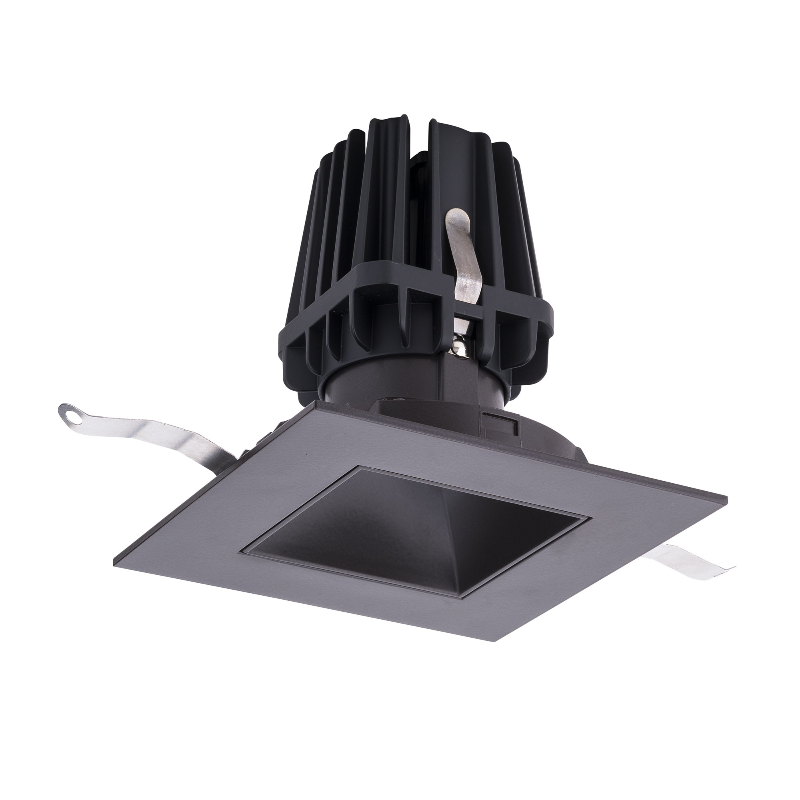

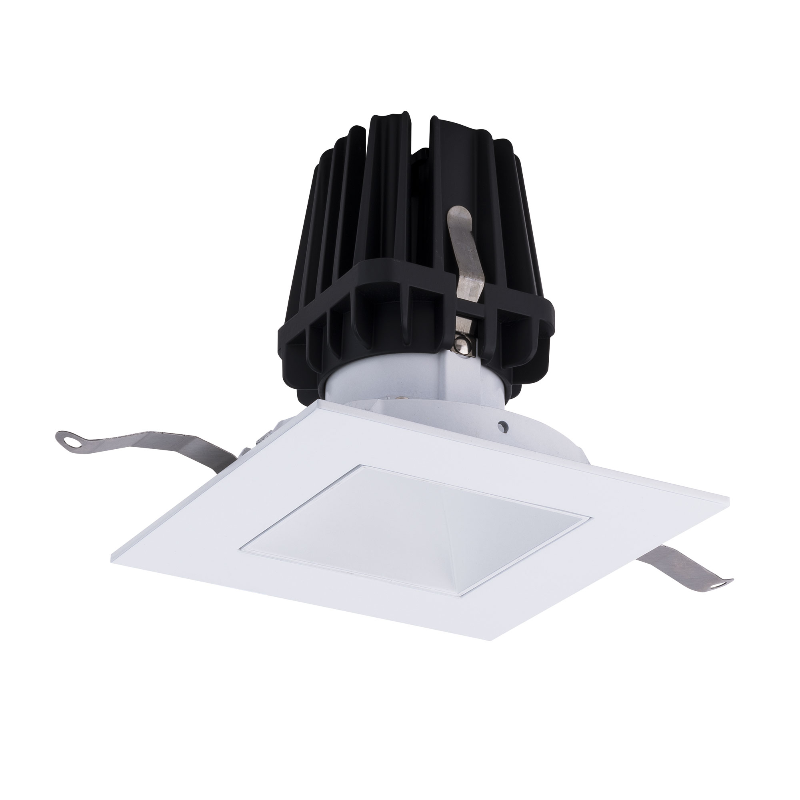

WAC R4FSDT-935 4" Square Downlight Trimmed, 3500K
The FQ Recessed series offers a complete line of high performance LED luminaires that provide outstanding functionality and quality. The series features superlative glare control with 30° shielding, 45° vertical tilting and 360° horizontal rotation, and uniform floor-to-ceiling wall washing. Multiple power level options and a full line of round and square, trimmed and trimless luminaires offer versatile solutions for various lighting applications. Easy to order, install, and service.
Features
- Finish: Dark Bronze, Haze/White, White, Black
- Construction: Durable Two-piece die-cast Aluminum trim with Aluminum heat sink
- Voltage: 120-277V
- Color Temperature: 3500K
- Delivered Lumens: 2495lm
- CBCP: Up to 6230
- CRI: 90
- ELV Dimming: 100-1%
- 0-10V Dimming: 100-1%
- TRIAC Dimming: 100-1%
- Rated Life: 50,000 Hours
- 30° shielding angle design for great visual comfort
- Light engine mounted on trim with springs for easy replacement
- Field changeable beam angle with reflectors provided
- Accepts one Lens or glare control accessory
Dimensions
- Aperture Size: 4"
- Width: 5.25"
- Height: 5.25"
- Ceiling Cutout: 4.75" Dia.
- Ceiling Thickness: 0.5" - 1"
Lamping
- Depends on Housing selection
