by WAC Lighting
WAC PS-0350A-UR1 Remote Power Supply, 1 Channel, ~ 350mA, 9-23VDC, 8.05W, Input 120-277V, ELV/Triac/0-10V Dimming
SKU PS-0350A-UR1
Original price
$0.00
-
Original price
$0.00
Original price
$116.95
$116.95
-
$116.95
Current price
$116.95
Availability:
In stock
This class 2, UL & cUL listed enclosed electronic power supply is the perfect solution for wiring low voltage fixtures. Class 2 power supply is intrinsically safer because It is considered safety from a fire initiation standpoint and provides acceptable protection from electric shock. Enclosure cover is easy to remove. Power supply has knockouts for line voltage wiring. Secondary wiring for class 2 power supply do not require conduit sheathed cable or clamp wiring techniques. May be dimmed using a Phase cut (TRIAC/ELV) or 0-10V dimmer.
Features
- Input: 100-277 VAC, 50/60Hz
- ELV Dimming: 100-1%
- 0-10V Dimming: 100-1%
- TRIAC Dimming: 100-1%
- Rated Life: 50000 Hours
- Universal Input 120-277VAC
- Build in active PFC, power factor > 0.95
- Overload and short circuit protection
- TRIAC/ ELV/0-10V Dimming Control
- Class 2 Output

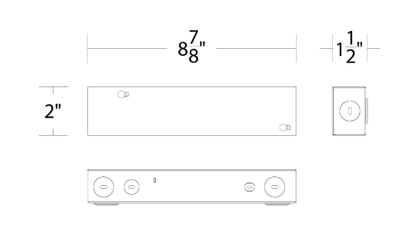

- Dimensions: 8-7/8" L x 2" W x 1-1/2" H
- FCC Part 15 Class B Compliant
Documents
Listing:
- UL & cUL Listed,
- Damp Location listed
- Title 24 Compliant
