WAC PS-0350A-UR6 Remote Power Supply, 6 Channels, ~ 350mA, 2-21 VDC, 44.1W, Input 120-277V, ELV/Triac/0-10V Dimming

This class 2, UL & cUL listed enclosed electronic power supply is the perfect
solution for wiring low voltage fixtures. Class 2 power supply is intrinsically
safer because It is considered safety from a fire initiation standpoint and
provides acceptable protection from electric shock.
Enclosure cover is easy to remove. Power supply has knockouts for line
voltage wiring. Secondary wiring for class 2 power supply do not require
conduit sheathed cable or clamp wiring techniques. May be dimmed using a
Phase cut (TRIAC/ELV) or 0-10V dimmer.

Features

• Input: 100-277 VAC, 50/60Hz
• ELV Dimming: 100-1%
• 0-10V Dimming: 100-1%
• TRIAC Dimming: 100-1%
• Rated Life: 50000 Hours
• Universal Input 120-277VAC
• Build in active PFC, power factor > 0.95
• Overload and short circuit protection
• TRIAC/ ELV/0-10V Dimming Control
• 0-10V Dimming curve adjustment
• Class 2 Output

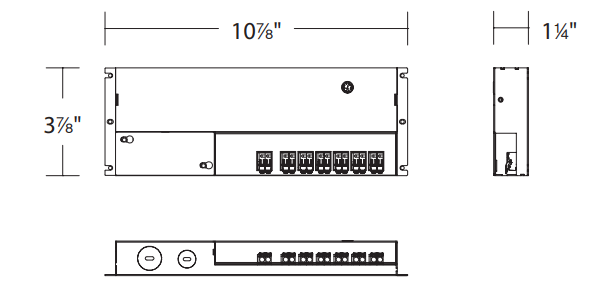

• Dimension: 10-7/8" L x 3-7/8" W x 1-7/4" H
• FCC Part 15 Class B Compliant


Documents

• Specs
• Instructions

Listing:

• UL & cUL Listed,
• Damp Location listed
• Title 24 Compliant
