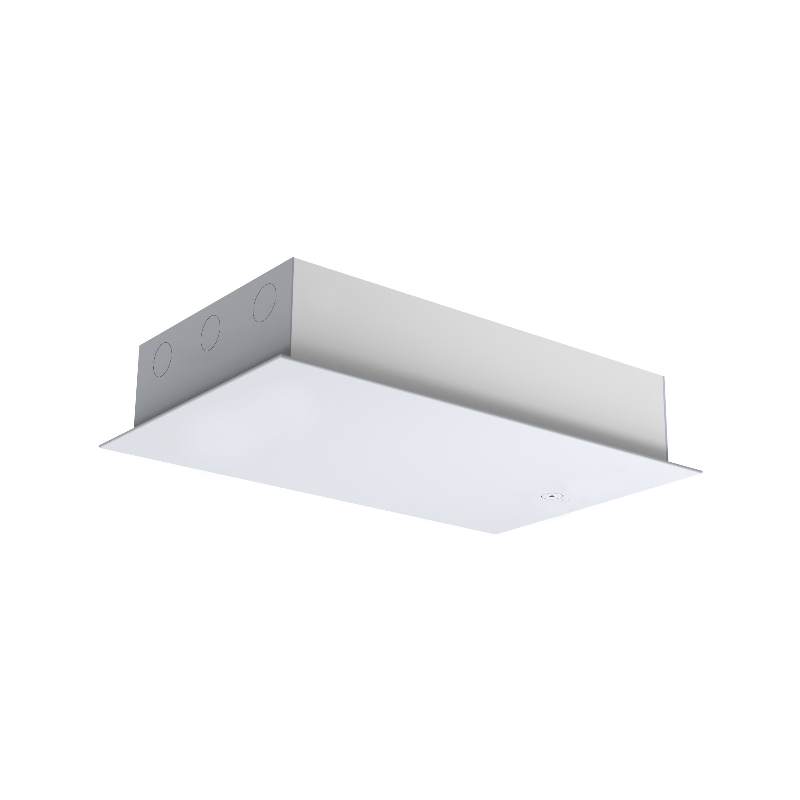

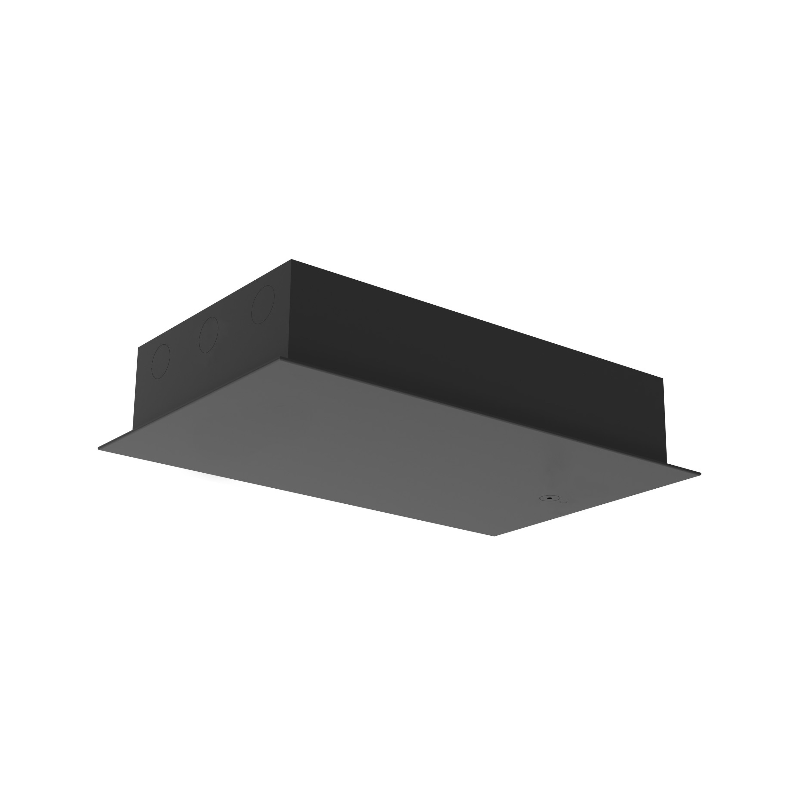

WAC S2CPU-S320 Ventrix 320W Surface Mount CPU
SKU S2CPU-S320-S-BK
Original price
$0.00
-
Original price
$0.00
Original price
$917.95
$917.95
-
$971.95
Current price
$917.95
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
Low stock
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Features
- Finish: Black, White
- Power: 320W
- Input: 120-277 VDC
- ELV Dimming: 100-0.1%
- 0-10V Dimming: 100-0.1%
- TRIAC Dimming: 100-0.1%
- Control Protocol S: 0-10V, ELV, TRIAC
- Control Protocol X: DMX, 0-10V, ELV, TRIAC
- Control Protocol Z: 0-10V x 4, ELV, TRIAC
- On/Off Switch, TRIAC, ELV Dimmer Input: 120VAC
- Accepts input ranges of 120-277V AC, and converts to a stable 48V DC output
- Construction: Steel housing with injected molded polycarbonate cover
- To meet EMC requirements, recommended for 150W, 320W, 600W total system power should be between 50%-95% of the CPU's capacity
- Maximum feed and channel length (12 AWG power and 16 AWG data wires): 200FT
- Compatible with WAC App via 2.4 GHz WiFi
- Group and control commissioning via WAC App
- Can be used as a suspension support and feed point for suspended VENTRIX channel
- Can be fed either through direct mounting over recessed junction box or conduit feed through side knockouts

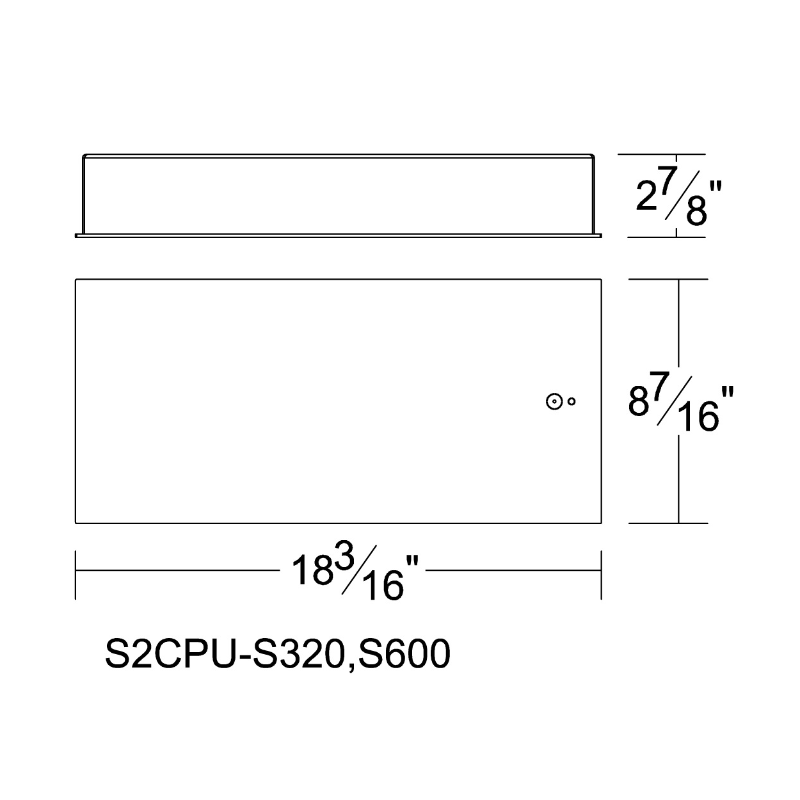

Dimensions
- Length: 18.19"
- Width: 8.44"
- Height: 2.88"
