Grafa Lighting System from Artemide

Grafa Lighting System from Artemide

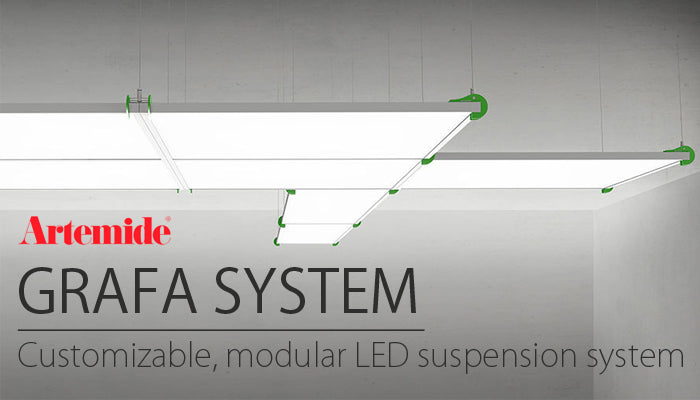

Clean lines, simple designs. The Grafa System from Artemide is an architectural lighting system that allows suspended modular panels to be configured into a variety of combinations to fit in any space.

Creating modern, unique aesthetics is easy with Grafa. Only three components are needed in the system–modules, drivers, and clips.

Shop Artemide Grafa at LBCLighting.com »

Modules

Two module shapes are available, square (23.625″ x 23.625″)  and rectangle (11.8125″ x 47.25″). Both shapes can be configured as a modular component or come as a complete standalone unit. Standalone units cannot be configured into a system.

Specifications
Modules Rectangle (1200 x 300 mm)
Square (600 x 600 mm)
Wattage 36W
Lumens 3456 lm
Efficacy  96 lm/W
CRI  85
Color Temperature  3500K
Body Color  Clear Anodized
Drivers

LED drivers are available as a recessed mount or surface mount. Both mounting options can be single or dual configuration. Single, powers only one module; whereas, dual, powers two modules that are linked together.

All drivers are On/Off + 0-10V dim UNV.

Driver Housing Linking Examples
1 Module
  • 1 Driver Housing
    • Single Driver Configuration (S)
2 Modules
  • 1 Driver Housing
    • Dual Driver Configuration (D)
3 Modules – Configuration A
  • 2 Driver Housings
    • 1 Single Driver Configuration (S)
    • 1 Dual Driver Configuration (D)
  • (S) fed module must not be connected electronically with (D)
3 Modules – Configuration B
  • 2 Driver Housings
    • 1 Single Driver Configuration (S)
    • 1 Dual Driver Configuration (D)
4 Modules
  • 2 Driver Housings
    • 2 Dual Driver Configurations (D)
  • (D1) fed module must not be connected electronically with (D2)
Complex Configuration – 11 Modules
  • 6 Driver Housings
    • 1 Single Driver Configuration
    • 5 Dual Driver Configurations
Clips

Five different clips are available for the Grafa system to allow optimal flex in design configuration. All five clips come in color options Grey, Anthracite, White, Blue, Red and Green.

Mounting Accessories
 Clip for Single Module
 Linking Clip for 2 Modules
 Linking Clip for 3 Modules
 Linking Clip for 4 Modules
 Linking Clip for connecting Rectangle with Square module



Clip Configuration






Shop Artemide Grafa at LBCLighting.com
