How To Install Track Lighting Kits

Track lighting kits offer everything you need for a complete track lighting installation. Coming in a wide range of styles and functionality, these packs include highly versatile track heads in both line voltage and low voltage options. They are convenient and ideal for a multitude of applications, sure to illuminate any space where display light is required, such as work areas in the kitchen, a reading area in the living room, or highlighting artwork on the walls.

In addition to being an economical and practical source of light, track kits are also simple to install.  See below for our step-by-step guide.

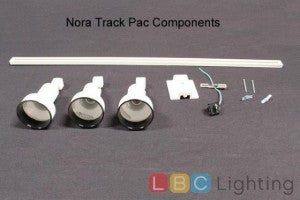

Note: the track kit in the images is made by Nora Lighting, but most kits come with the same components and are installed in a similar fashion.

You can also browse through our website’s selection of Track Lighting Kits.


Track Screw Hole

Track Mounting Screws and Anchors

Track Mounting Screw

Floating Canopy / Power Feed

Installation Instructions:

Step 1: Connect Black Wire (Hot Wire) to Copper Screw

Step 2: Connect White Wire (Neutral Wire) to Silver Screw

Step 3: Connect Power Connector to Track Section

Step 4: Connect power source by inserting connector into track and twisting to lock into place

Step 5: Power Connector securely in place

Step 6: Remove Floating Canopy mounting screw

Step 7: To attach track slide down outer sleeve and insert track head into track. Twist track into track section to secure into place

Step 8: Attach Floating Canopy and replace screw to secure into place

Step 9:  Insert track head and twist into place. To remove track section slide down sleeve twist and remove

Completed track kit

If you are interested in track lighting but need something more complicated than what a typical kit includes, feel free to contact us and we will be happy to help you put together a bill of materials.
