by WAC Lighting

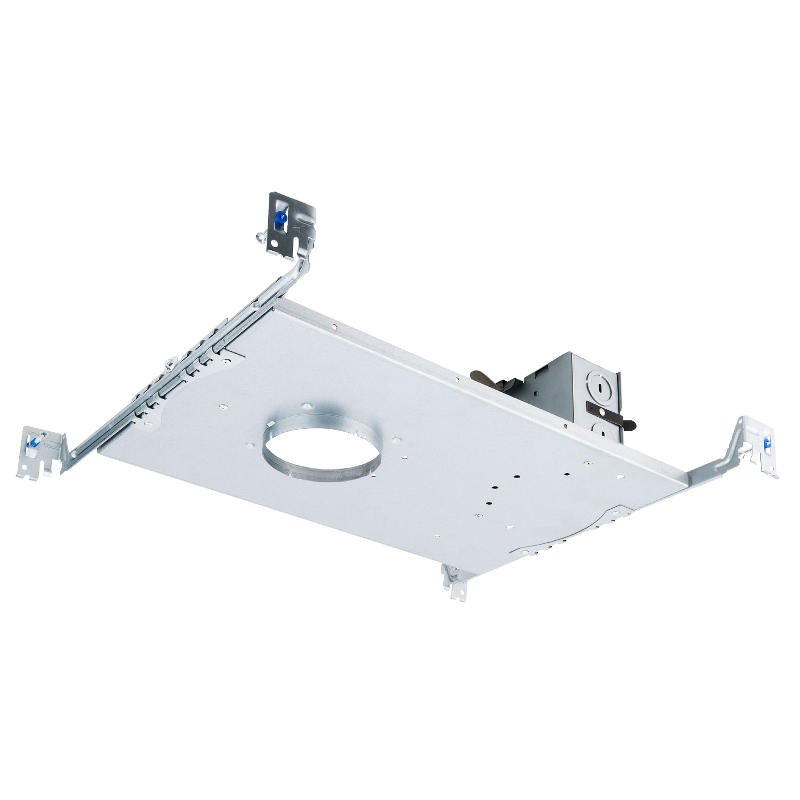

WAC R2FBFT-1 FQ 2" 15W New Construction Frame-In Trimmed Housing
SKU R2FBFT-1
Original price
$0.00
-
Original price
$0.00
Original price
$107.95
$107.95
-
$107.95
Current price
$107.95
Availability:
in stock, ready to be shipped
Features
- Wattage: 15W
- Voltage: 120-277V
- Non IC
- ELV Dimming: 100-5%
- 0-10V Dimming: 100-1%
- TRIAC Dimming: 100-5%
- Construction: 20 gauge galvanized Steel
- One size housing for all round and square trim types for simplicity and versatility
- Uniformed ceiling cutout size for DL, ADJ, WW in Round or Square, Trim or Trimless
- Quick connectors installed on driver for easy driver replacement
- New construction housings included with universal mounting brackets and hanger bars
- Driver concealed within the fixture

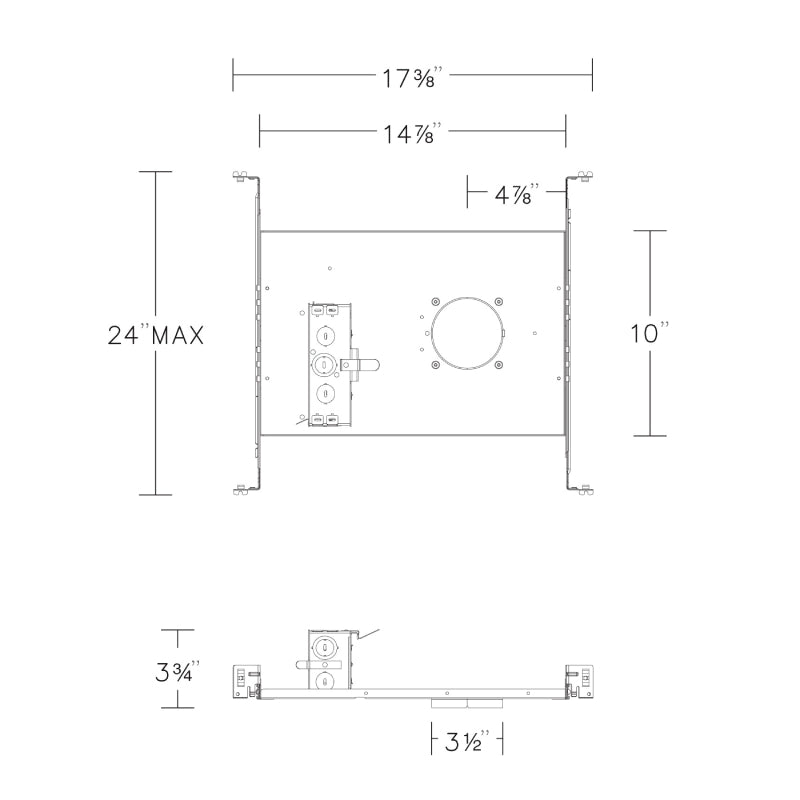

Dimensions
-
Aperture Size: 2"
- Length: 24"
- Width: 17.38"
- Height: 3.75"
- Ceiling Cutout: 3.5" Dia.
- Ceiling Thickness: 0.5" - 1"
