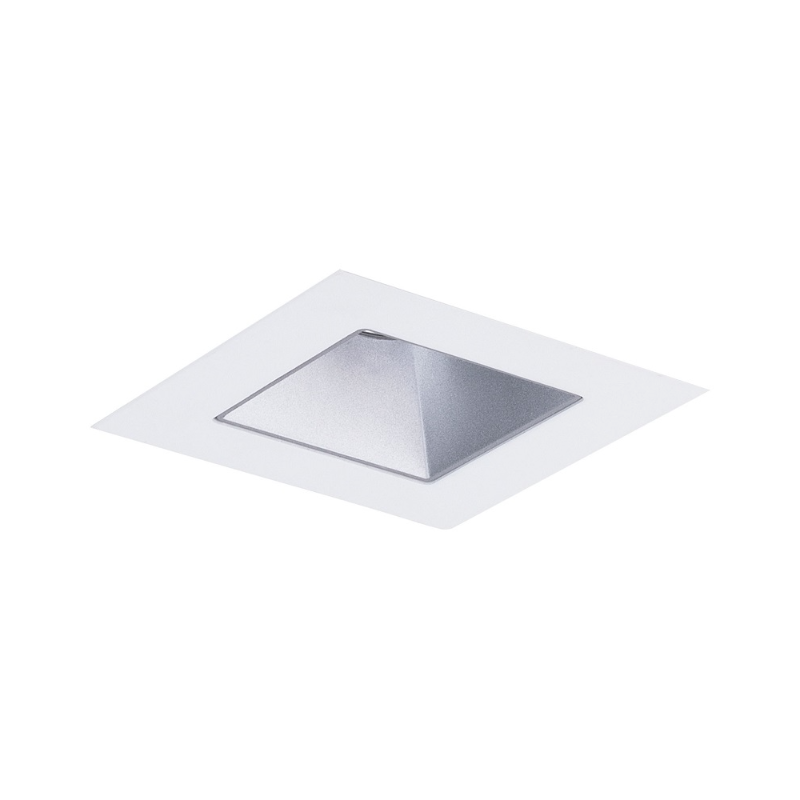

WAC R2FSDT-940 2" Square Downlight Trimmed, 4000K

The FQ Recessed series offers a complete line of high performance LED luminaires that provide outstanding functionality and quality. The series features superlative glare control with 30° shielding, 35° vertical tilting and uniform floor-to-ceiling wall washing. Multiple power level options and a full line of round and square, trimmed and trimless luminaires offer versatile solutions for various lighting applications. Easy to order, install, and service.

Features

• Housing required - sold separately

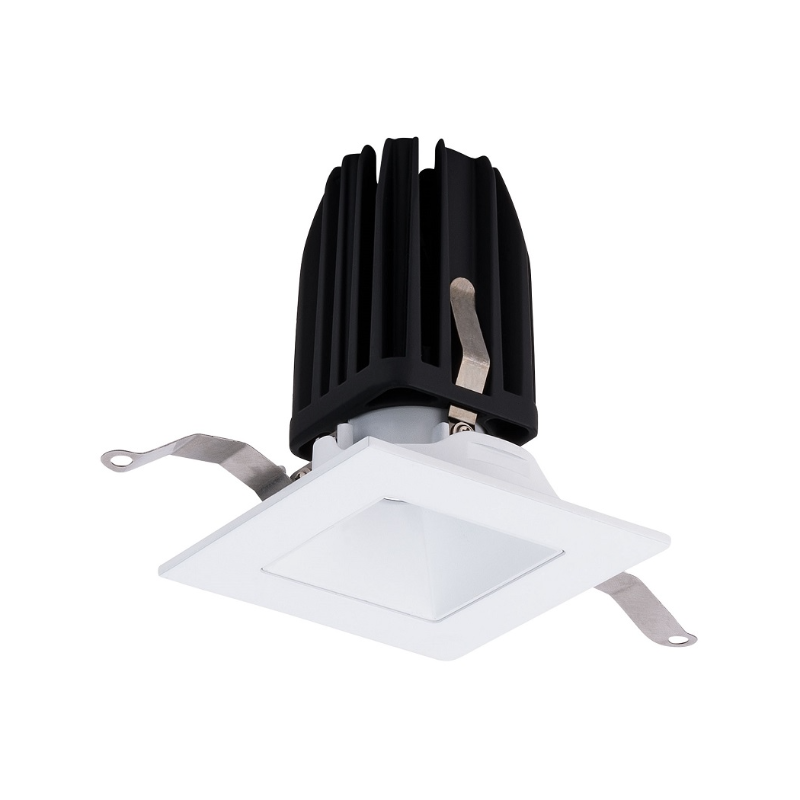

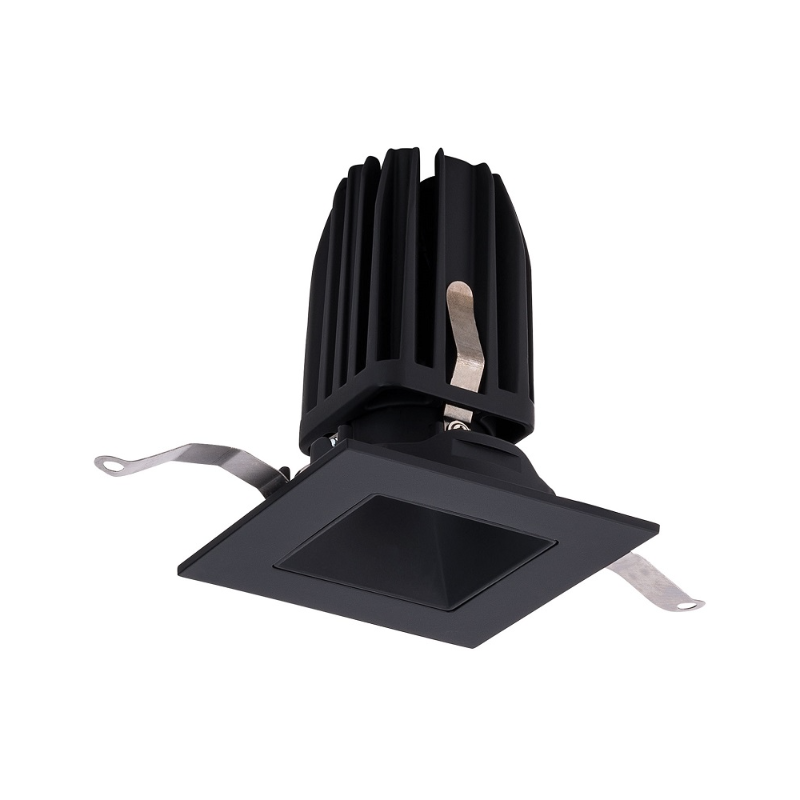

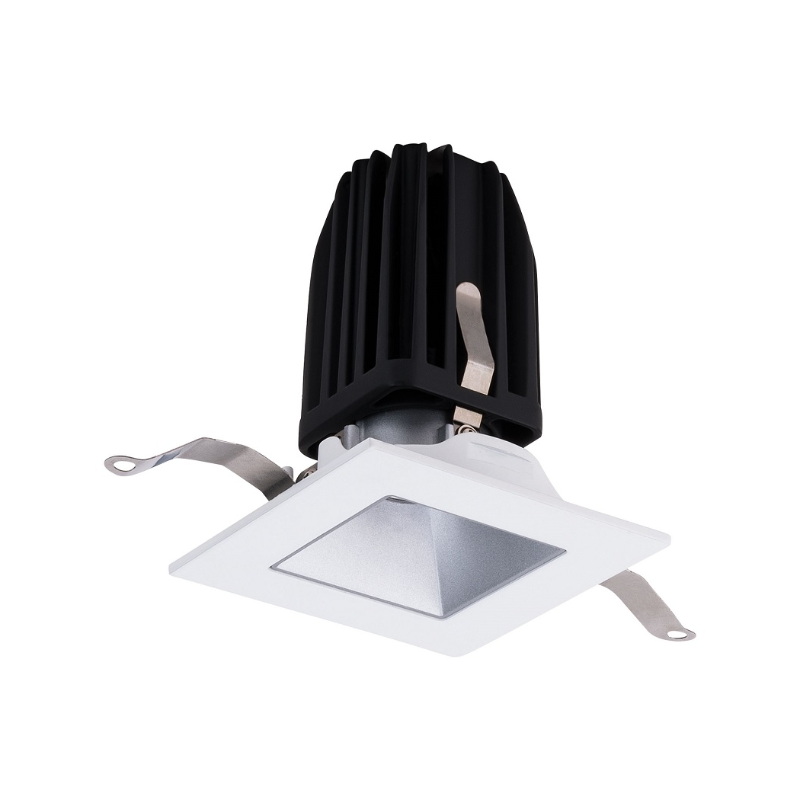

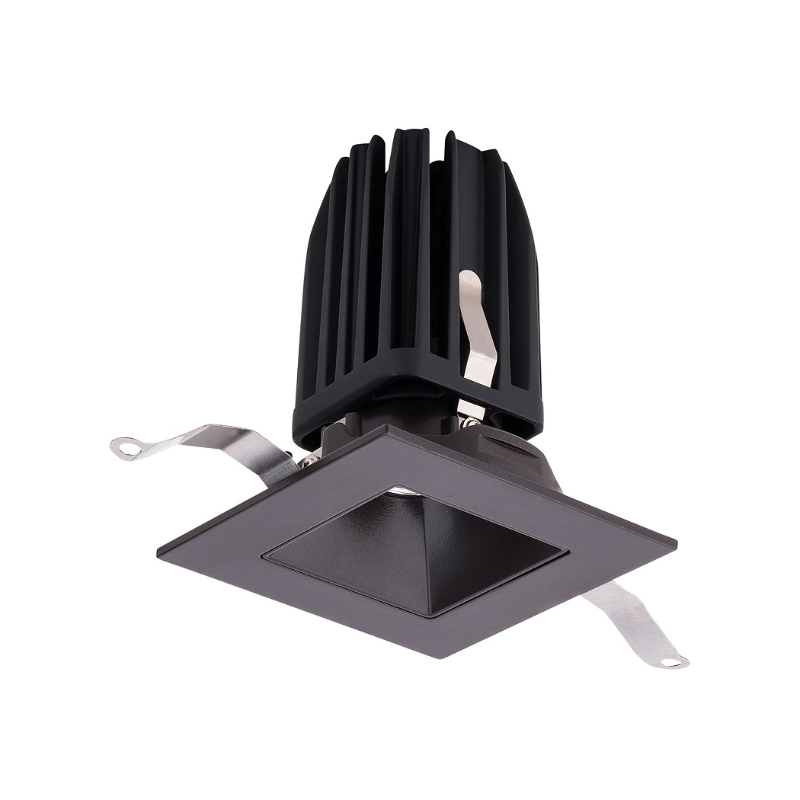

• Finish: Black, Dark Bronze, Haze/White, White
• Construction: Durable Two-piece die-cast Aluminum trim with Aluminum heat sink

• Wattage: 15W, 21W, 25W (Depends on Housing selection)
• Voltage: 120-277V

• Color Temperature: 4000K

• Delivered Lumens: 2100lm

• CRI: 90
• ELV Dimming: 100-1%

• 0-10V Dimming: 100-1%
• TRIAC Dimming: 100-1%
• Rated Life: 50,000 Hours

• 30° shielding angle design for great visual comfort
• Light engine mounted on trim with springs for easy replacement
• Field changeable beam angle with reflectors provided
• Accepts one Lens or glare control accessory

Compatible Housings (Sold Separately):

• New Construction - R2FBNT-1 , R2FBNT-2 , R2FBNT-3 , R2FBNT-1-EM , R2FBNT-2-EM , R2FBNT-3-EM , R2FBFT-1 , R2FBFT-2 , R2FBFT-3 , R2FBFT-1-EM , R2FBFT-2-EM , R2FBFT-3-EM
• Remodel - R2FBRT-1 , R2FBRT-2 , R2FBRT-3 , R2FBR2T-1

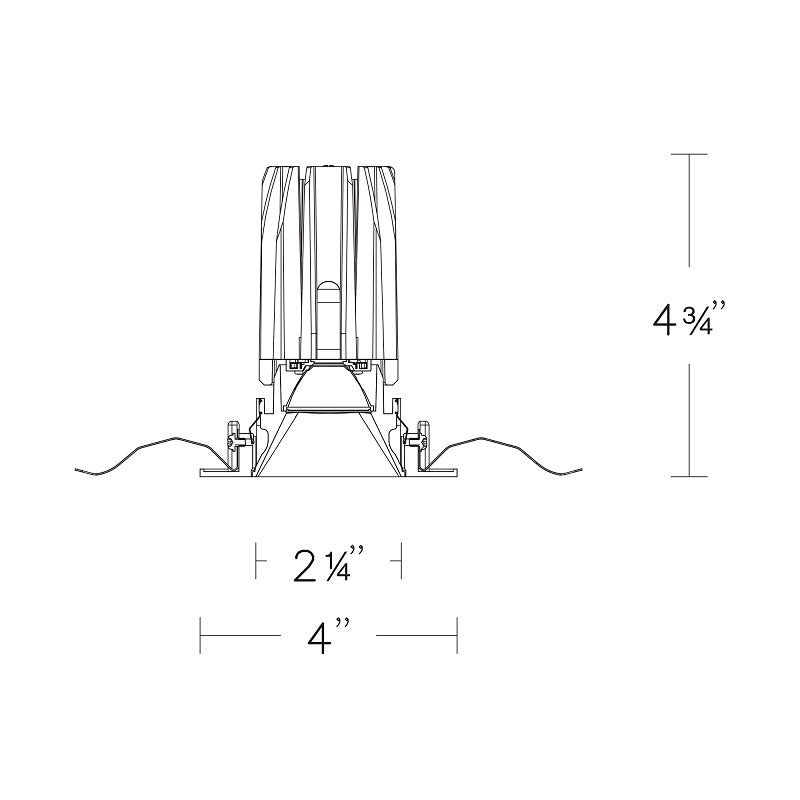

Dimensions

• Aperture Size: 2"

• Width: 4"
• Height: 4.75"
• Ceiling Cutout: 3.5" Dia.
• Ceiling Thickness: 0.5" - 1"


Lamping

• 15W, 21W, 25W LED (Depends on Housing selection, Not Included)

Documents

• Spec Sheet
• Instruction Sheet
