by WAC Lighting

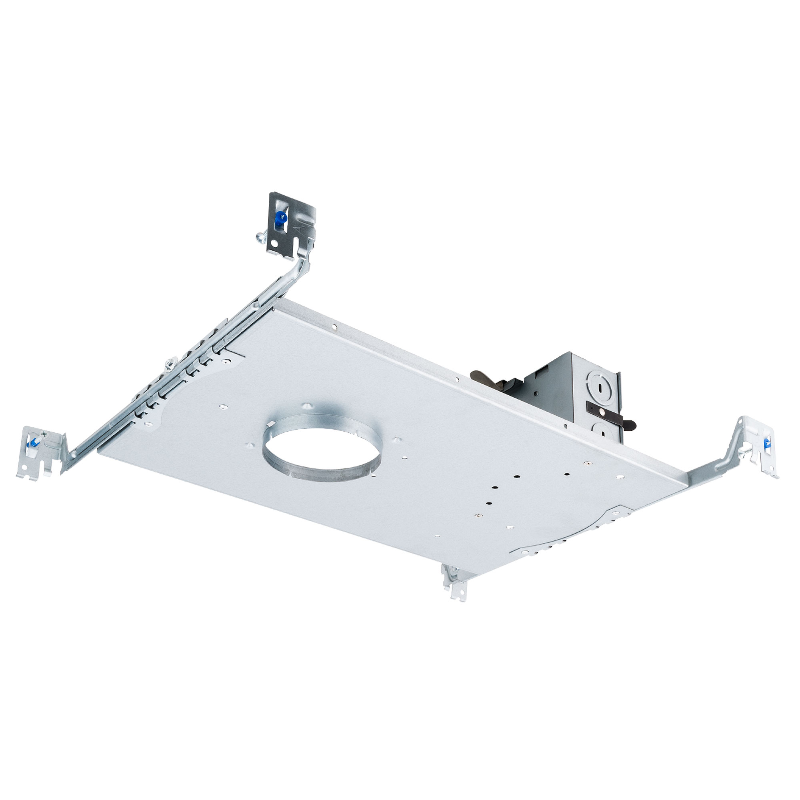

WAC R2FBFT-2-EM FQ 2" 21W New Construction Frame-In Trimmed Housing with Emergency Backup Battery
SKU R2FBFT-2-EM
Original price
$0.00
-
Original price
$0.00
Original price
$305.95
$305.95
-
$305.95
Current price
$305.95
Availability:
in stock, ready to be shipped
Features
- Wattage: 21W
- Voltage: 120-277V
- Non IC
- ELV Dimming: 100-5%
- 0-10V Dimming: 100-1%
- TRIAC Dimming: 100-5%
- Construction: 20 gauge galvanized Steel
- One size housing for all round and square trim types for simplicity and versatility
- Uniformed ceiling cutout size for DL, ADJ, WW in Round or Square, Trim or Trimless
- Quick connectors installed on driver for easy driver replacement
- EM fixtures provided with integral emergency battery backup with 24" lead wire remote test switch. Provides at least 90 minutes of 6W illumination during emergency operation.
- New construction housings included with universal mounting brackets and hanger bars.
- Driver concealed within the fixture
Compatible Fixtures (Sold Separately):
- Round Adjustable Trimmed -Ā R2FRAT-927 , R2FRAT-930 , R2FRAT-935 , R2FRAT-940
- Round Downlight Trimmed -Ā R2FRDT-927Ā ,Ā R2FRDT-930Ā ,Ā R2FRDT-935Ā ,Ā R2FRDT-940
- Round Pinhole Trimmed -Ā R2FRPT
- Round Wall Wash Trimmed -Ā R2FRWT-927 , R2FRWT-930 , R2FRWT-935 , R2FRWT-940
- Square Adjustable Trimmed -Ā R2FSAT-927Ā ,Ā R2FSAT-930Ā ,Ā R2FSAT-935Ā ,Ā R2FSAT-940
- Square Downlight Trimmed -Ā R2FSDT-927Ā ,Ā R2FSDT-930Ā ,Ā R2FSDT-935Ā ,Ā R2FSDT-940
- Square Pinhole Trimmed - R2FSPT
- Square Wall Wash Trimmed - R2FSWT-927 , R2FSWT-930 , R2FSWT-935 , R2FSWT-940

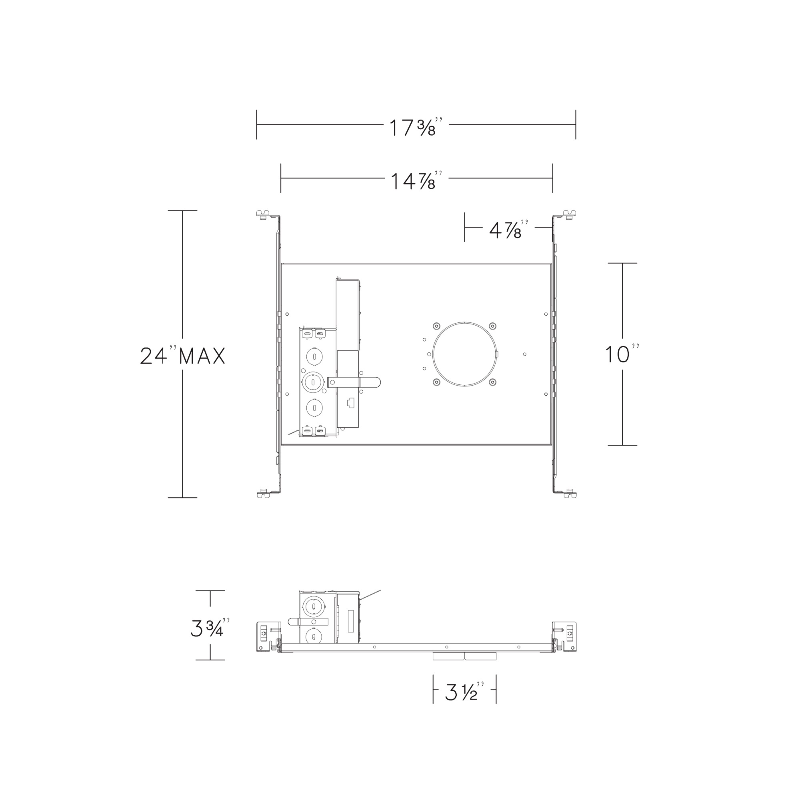

Dimensions
- ApertureĀ Size: 2"
- Length: 24"
- Width: 17.38"
- Height: 3.75"
- Ceiling Cutout: 3.5" Dia.
- Ceiling Thickness: 0.5" - 1"
Documents
