by WAC Lighting

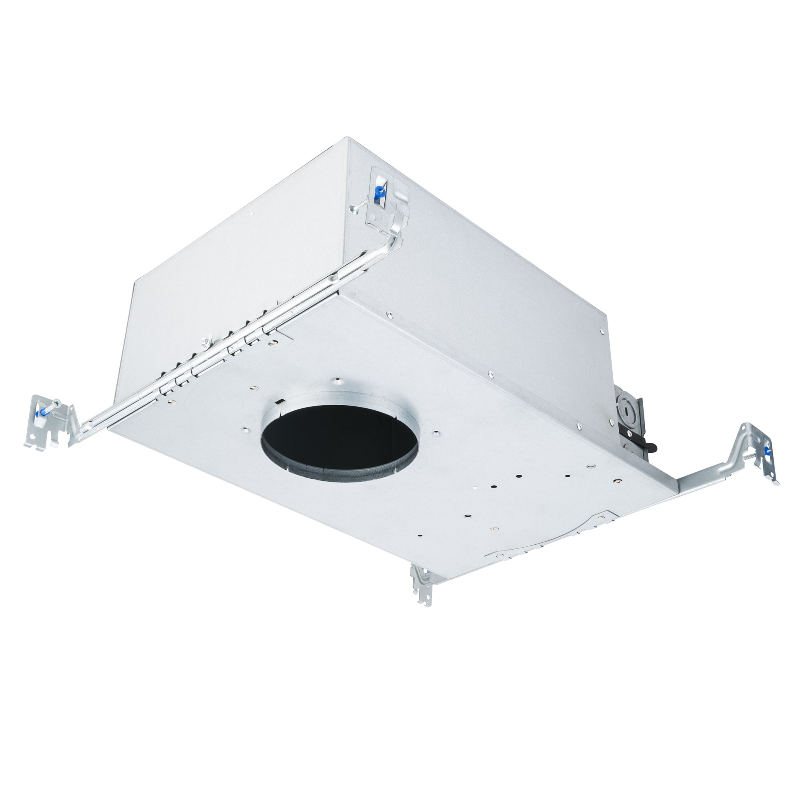

WAC R4FBNT 4" 28W New Construction Trimmed with Emergency Backup Battery
SKU R4FBNT-4-EM
Original price
$0.00
-
Original price
$0.00
Original price
$359.95
$359.95
-
$359.95
Current price
$359.95
Availability:
in stock, ready to be shipped
Features
- Construction: 20 gauge galvanized Steel
- Power: 28W
- Voltage: 120-277V
- Type: Airtight
- Non-IC
- Trim Shape: Round, Square
- ELV Dimming: 100-5%
- 0-10V Dimming: 100-1%
- TRIAC Dimming: 100-5%
- Emergency backup battery (Optional)
- One size housing for all round and square trim types for simplicity and versatility
- Uniformed ceiling cutout size for DL, ADJ, WW in Round or Square, Trim or Trimless
- Quick connectors installed on driver for easy driver replacement
- EM fixtures provided with integral emergency battery backup with 24" lead wire remote test switch. Provides at least 90 minutes of 6W illumination during emergency operation.
- New construction housings included with universal mounting brackets and hanger bars
- Driver concealed within the fixture
Compatible Fixtures (Sold Separately):
- Round Adjustable Trimmed - R4FRAT-927 , R4FRAT-930 , R4FRAT-935 , R4FRAT-940
- Round Downlight Trimmed -Ā R4FRDT-927Ā ,Ā R4FRDT-930Ā ,Ā R4FRDT-935Ā ,Ā R4FRDT-940
- Round Wall Wash Trimmed -Ā R4FRWT-927Ā ,Ā R4FRWT-930Ā ,Ā R4FRWT-935Ā ,Ā R4FRWT-940
- Square Adjustable Trimmed -Ā R4FSAT-927Ā ,Ā R4FSAT-930Ā ,Ā R4FSAT-935Ā ,Ā R4FSAT-940
- Square Downlight Trimmed -Ā R4FSDT-927Ā ,Ā R4FSDT-930Ā ,Ā R4FSDT-935Ā ,Ā R4FSDT-940
- Square Wall Wash Trimmed -Ā R4FSWT-927Ā ,Ā R4FSWT-930Ā ,Ā R4FSWT-935Ā ,Ā R4FSWT-940

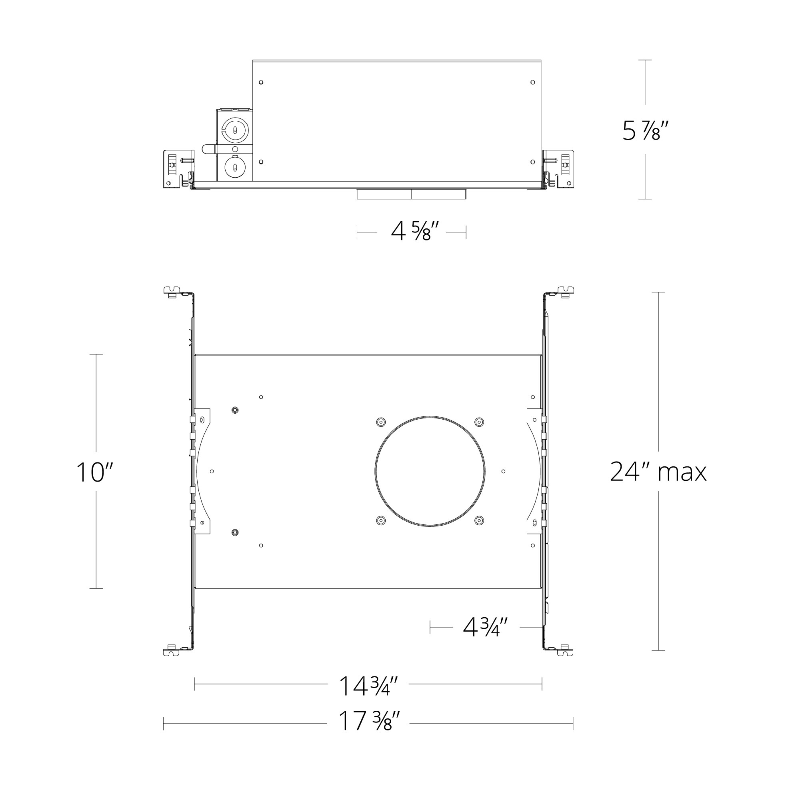

Dimensions
- Aperture Size: 4"
- Length: 24"
- Width: 17.38"
- Height: 5.88"
- Ceiling Cutout: 4.75" Dia.
- Ceiling Thickness: 0.5" - 1"
